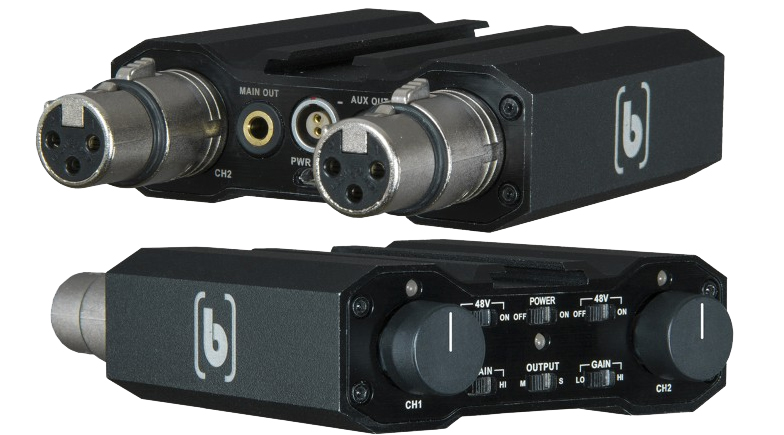

BEACHTEK DXA-RED

Beachtek DXA-ALEXA Low Noise Preamplifier for ARRI ALEXA MINI Transform your ALEXA Mini to a fully featured mini doc camera with on-board audio capabilities with the Beachtek DXA-ALEXA. The carbon fiber chassis matches the look and feel of the camera and with a weight of under 1 lb, the slim line design will easily fit on your rig and not bog you down. Constructed of top quality components, including weather resistant top panel switches for outstanding reliability and durability. Also ideal for use with any other mini cinema cameras such as the RED DSMC2 models. Cinematic Sound The ultra low-noise preamplifiers provide exceptional performance with over 100dB in dynamic range. The two XLR inputs are transformer balanced for galvanic isolation and high common mode rejection. The DXA-ALEXA also provides all the features you need including dual gain controls, phantom power, level indicators and headphone monitoring. The tri-color LED level indicators make it a snap in setting the proper recording levels. The output is a balanced 5-pin XLR that connects directly to the 5-pin Lemo input on the camera via an optional cable. There is also an auxiliary mic level output via an unbalanced stereo mini-jack so it can be connected to a variety of other cameras and recording gear. Power is from your rig via the 2 pin Lemo connector. Flexible Mounting Options With the included bracket, you can mount the DXA-ALEXA in several ways to the camera cage.  When using the ARRI ALEXA Mini camera cage, you can mount it under the handle, side bracket or anywhere with an optional V-Lock. The bracket has captive thumb screws to easily add or remove the device from the camera. The base of the unit has three threaded 1/4″/20 holes to also allow it to be mounted to the rails via a third party rail bracket. Technical specs Frequency Response20Hz to 20kHz (+/- 1.0dB)GainLine Out Lo Gain: 40dB, Hi Gain: 60dBMic Out Lo Gain: 10dB, Hi Gain: 30dBMaximum Input LevelLo Gain: -15dBuHigh Gain: -35dBuOutput Clipping LevelLine Output: +25dBuMic Output: -5dBuDynamic Range100dBTHD+NLo Gain: 0.012% (+4dBu output, 1kHz)Hi Gain: 0.06% (+4dBu output, 1kHz)Channel SeparationLo Gain: 85dB (+4dBu output, 1kHz)Hi Gain: 80dB (+4dBu output, 1kHz)Metering (Tri-Color LED)Green -40dBu to 16dBuYellow -16dBu to +4dBuRed Over +4dBuPoweringExternal DC Input Jack (12-16V)Pin 1 = (-), Pin 2 = (+)Dimensions: 126 mm x 96 mm x 40 mmWeight: 374g

Beachtek DXA-MICRO PRO Audio-Adapter SKU: DXA-MICRO PRO The BeachTek DXA-MICRO PRO is packed with all the features you need to record high quality audio from virtually any source. Superb operation and ease of use to make capturing pro audio a snap. Since the audio is recorded directly to the camera, it will always in sync with the video, eliminating the need for any post production processing. The Beachtek DXA-MICRO PRO is the missing link for connecting virtually mic to your camera. Features a built-in XLR connector with phantom power for connecting any pro mic as well as two 3.5 mm mono and one 3.5 mm stereo mini-jacks with plug-in power for connecting any camera mounted mic such as the popular Rode VideoMics. You can also easily connect a wireless to either the XLR or mini-jack inputs. Connect two audio sources at a time for two channel recording. Each channel can easily be independently adjusted for the optimum recording level – even while recording. The DXA-MICRO PRO gives you the ability to connect whatever microphones work best for your situation

BEACHTEK DXA-PRE The new standard for recording audio on RED, ALEXA and other cinema cameras Super compact, super tough and easily mountable Dual XLR Adapter with low-noise preamplifiers for cinema cameras. Simple, no fuss layout and features gives you everything you need to easily record cinema quality audio to your camera. Easy to read VU Meter makes setting the ideal recording levels a snap. Has both balanced and unbalanced outputs to connect to wide variety of cameras. Includes the V-CLIK quick release plate to quickly snap the unit on or off your camera. Nothing could be easier to use or give you better audio than the DXA-PRE. Can also be used with any cinema camera or DSLR camera with a mic jack. Features Phantom PowerDual GainTrim ControlsVersatile Mounting OptionsVU MeterLow-Noise PreamplifierMounting Shoes5-pin XLR OutputTiny and Light WeightTransformer Balanced Inputs2 x XLR InputsStereo Mini-Jack OutputBracketingQuick Release Mount In the box 1 x Beachtek DXA-PRE1 x SC35 output cable1 x V-Clik Quick Release mounting accessory1 x Brass Mounting Foot, Bolt + Allen wrench1 x Reference Card
