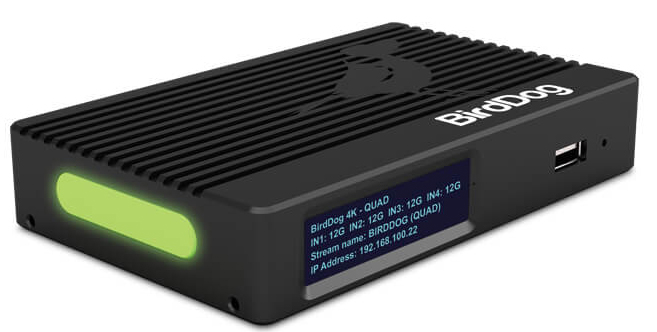

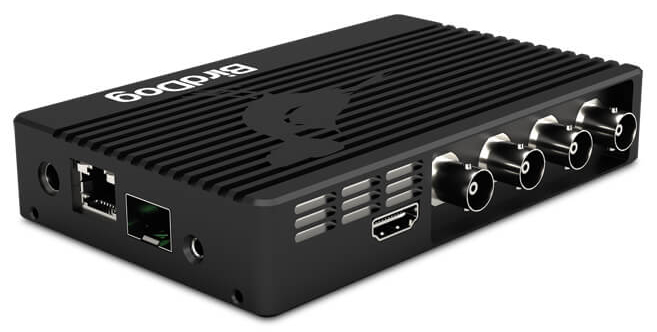

BirdDog 4K QUAD 12G SDI-4Kp60 NDI Encoder/Decoder

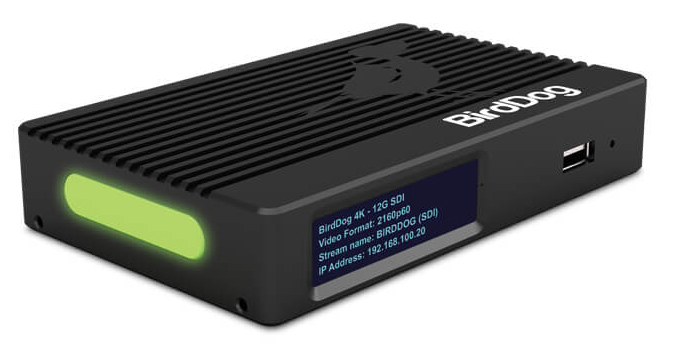

BirdDog 4K 12G SDI 12G SDI NDI Encoder/Decoder With support for all resolutions up to 4Kp60, including all HD resolutions, Encoding and Decoding 4K Full NDI® has never been easier. All SDI connectors on the 4K line are 12G SDI, including all four SDI connectors on 4K Quad. All the HDMI connectors are 2.0 for maximum compatibility with your sources and destinations. Industry standard SFP+ connection allows for short, medium, and long range connections over fiber and supports Ethernet protocols from 1GbE to 10GbE. A full Tally system is built right into the 4K Family and it requires zero configuration. Includes a built-in large Tally light for your on-air talent to easily see which camera is live, plus user selectable Tally borders on loop out. All 4K products include a built in cross converter and of the 12G SDI inputs can be looped out the HDMI 2.0 port and any of the HDMI 2.0 inputs can be looped out the 12G SDI. With the optional USB to Ethernet dongle you can control any PTZ camera that supports NDI®, NDI|HX, or Visca over IP. Full NDI® is a variable bit rate codec. In normal circumstances BirdDog recommends allowing around 140Mbps in HD, or 6 streams per 1GbE cable with some headroom. In 4K it is recommended to allow around 300Mbps or 3 streams with some headroom to allow for any unforeseen spikes. With BirdDog’s tools you can select the bit rate to suit your bandwidth and requirements. In both HD you can slide between 80-180Mbps and in 4K you can select the data rate to be anywhere between 60 and 360Mbps. 4K Family include free Audio Intercom software, Comms Lite. Comms Lite supports four BirdDog devices and one Director. Need a more powerful Audio Intercom solution? Comms Pro gives you all the amazing features of Comms Lite plus allows you create you up to five groups, adds additional push to talk buttons for the director, ability to change groups on the fly, plus more. BirdDog Central is a software platform set to redefine the way we think about driving content to TV screens. By teaming up Central with any NDI® source, including all BirdDog hardware capable of creating NDI® sources, you can now drive your NDI® streams to any BirdDog Studio NDI, Mini or 4K Family to decode NDI® back to SDI or HDMI.

BirdDog 4K HDMI HDMI 2.0, 4Kp60 NDI Encoder/Decoder Bi-directional 4K NDI to HDMI scaling converter with HDMI pass through and 12G-SDI out. Encode & Decode up to 4Kp6012G & HDMI 2.0 connectionsSFP+ for 10GbE & long rangeNDI Tally that just worksCross ConverterPTZ ControlAdaptive bit rate. Slide your way to gloryFree Comms Lite. Upgrade to Comms ProDistribute NDI® content everywhere. Just add Central

BirdDog Flex 4K BACKPACK 4K Full NDI Encoder with Tally, Comms, PTZ Control, PoE+, DC Power Output, and L-Series Battery Mount BirdDog Flex delivers everything you have come to expect from BirdDog including Tally, Audio Intercom, Video, Audio, PTZ Control, and Power. All over a single Ethernet cable. With 3 models to choose from in the Flex Family, there is a Flex perfect for your workflow needs. BirdDog Flex BACKPACK is the ultimate upgrade for your camera top monitor recorder. Featuring an NP style battery connection, and 15w power output, it allows you to encode NDI, power your monitor, and record all at the same time. With great power comes great responsibility. Flex 4K FamilyHalo Tally system built inAdaptive bit rateFree software includes: Central Lite, Dashboard & Comms Lite100% Recyclable packaging Three models to choose from FLEX 4K IN4K Full NDI Encoder with Tally, Comms, PTZ Control, PoE+, and DC Power Output.4K BACKPACK4K Full NDI Encoder with Tally, Comms, PTZ Control, PoE+, DC Power Output, and L-Series Battery Mount.FLEX 4K OUT4K Full NDI Decoder with Tally, Comms, PTZ Control, and PoE.
