Blackmagic PYXIS 12K
Skip image gallery
Free shipping
New
Product number:
SW28592
Manufacturer:
Blackmagic Design
EAN:
9338716009927
Manufacturer product number:
CINECAMCPYXM12LFL
Delivery time:
21-30 days

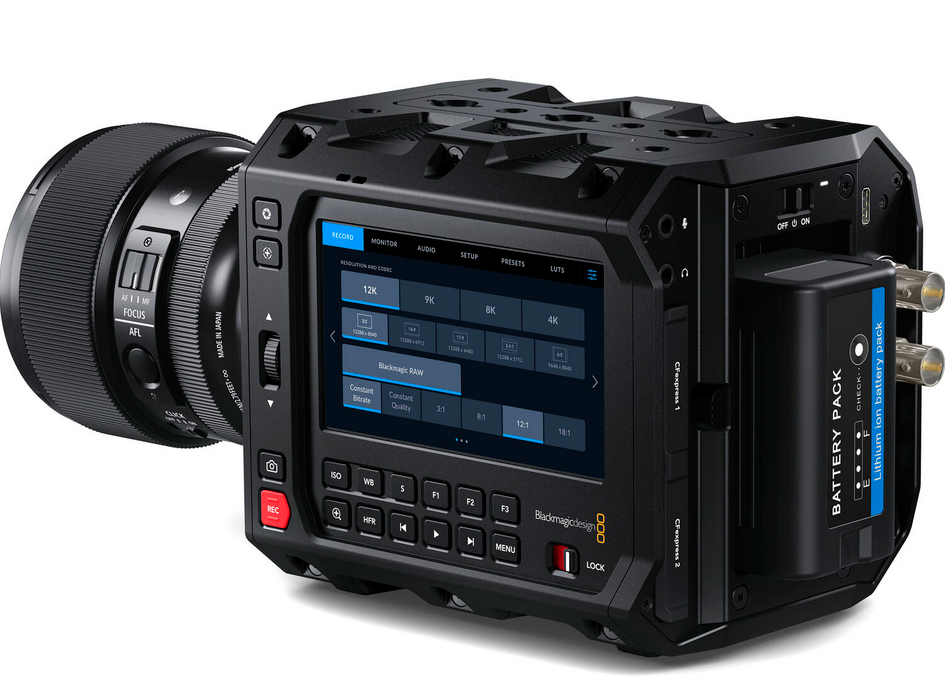

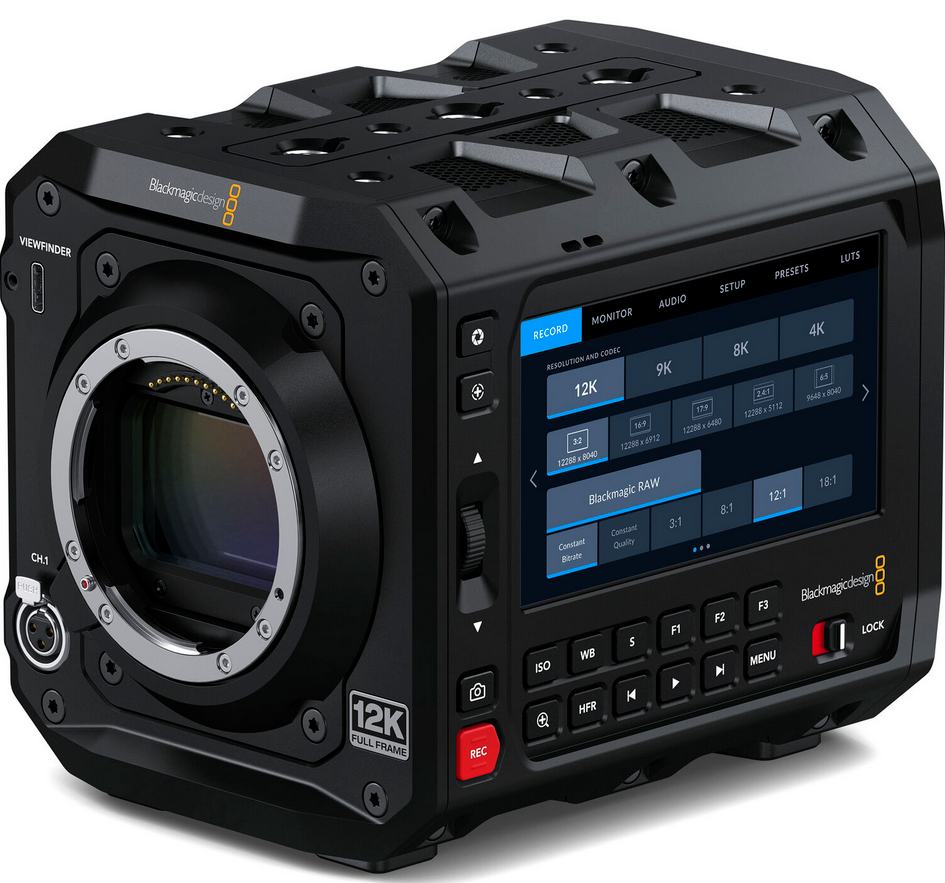

Blackmagic PYXIS 12K
SKU: CINECAMCPYXM12LFL
Blackmagic PYXIS 12K L-Mount is an advanced digital film camera with an incredibly versatile design that lets you build the perfect camera rig for your production. This new model features a 12,288 x 8040 full frame RGBW sensor with built in optical low pass filter, 16 stops of dynamic range, dual CFexpress media slots, all in a customizable body with flexible mounting options and side plates.
Blackmagic PYXIS 12K L-Mount features a fixed L-Mount that works with the latest full frame lenses and a wide range of lens adapters.
Camera Features
- Effective Sensor Size: 35.64mm x 23.32mm (Large Format)
- Pixel Pitch: 2.9 microns
- Lens Mount: Active L-Mount
- Lens Control: Iris and focus on supported lenses
- Dynamic Range: 16 Stops
- Native ISO: 800
- Focus: Focus control possible using compatible lenses
- Iris Control: Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings using compatible lenses
- Screen Dimensions: 4'' 1920 x 1080
- Screen Brightness: 1500 nits
- Screen Type: LCD capacitive touchscreen
- Metadata Support: Automatically populated lens data from electronic L-Mount lenses. Automatic recording of camera settings, motion sensor data plus slate data such as project, scene number, take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW files
- Controls: Touchscreen menus on 4 inch screen. Push buttons for other controls. 3 assignable shortcut keys
- Timecode Clock: Highly accurate timecode clock. Less than 1 frame drift every 8 hours
- Frame Rates: Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Maximum sensor frame rate dependent on resolution selected
Shooting Resolutions
- 12,288 x 8040 (12K 3:2 open gate)
- 12,288 x 6912 (12K 16:9)
- 12,288 x 6480 (12K 17:9)
- 12,288 x 5112 (12K 2.4:1)Â
- 9648 x 8040 (12K 6:5)
- 9408 x 6264 (9K 3:2)
- 8688 x 4896 (9K 16:9)
- 9312 x 4896 (9K 17:9)
- 9312 x 3864 (9K 2.4:1)
- 7680 x 6408 (9K 6:5)
- 8192 x 5360 (8K 3:2 open gate)
- 8192 x 4608 (8K 16:9)
- 8192 x 4320 (8K 17:9)
- 8192 x 3408 (8K 2.4:1)
- 6432 x 5360 (8K 6:5)
- 4096 x 2680 (4K 3:2 open gate)
- 4096 x 2304 (4K 16:9)
- 4096 x 2160 (4K 17:9)
- 4096 x 1704 (4K 2.4:1)
- 3216 x 2680 (4K 6:5)
High Frame Rates
- 12K (3:2 open gate) up to 40 fps
- 12K (16:9) up to 45 fps
- 12K (17:9) up to 50 fps
- 12K (2.4:1) up to 60 fps
- 12K (6:5) up to 40 fps
- 9K (3:2 Super 35) up to 50 fps
- 9K (16:9 Super 35) up to 65 fps
- 9K (17:9 Super 35) up to 65 fps
- 9K (2.4:1 Super 35) up to 80 fps
- 9K (6:5 Super 35) up to 50 fps
- 8K/4K (3:2 open gate) up to 72 fps
- 8K/4K (16:9) up to 84 fps
- 8K/4K (17:9) up to 90 fps
- 8K/4K (2.4:1) up to 112 fps
- 8K/4K (6:5) up to 72 fps
Connections
- Total Video Inputs: None
- Total Video Outputs: 1x 12G-SDI up to 2160p60 1x Viewfinder USB-C with power, data, video and locking connector
- Analog Audio Inputs: 1x mini XLR analog audio in, switchable between mic with phantom power support and line level (up to +14dBu). 1x 3.5mm Stereo Input
- Analog Audio Outputs: 1x 3.5mm headphone jack
- Reference Inputs: Tri-Sync/Black Burst and Timecode
- Computer Interface: USB Type-C for external drive recording, PTP camera control and software updates
- Ethernet: 1x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE‑T
What's Included
- Blackmagic PYXIS 12K
- Lens turret dust cap
- PYXIS Standard Plate
- PYXIS SSD Plate
- 90W power supply with locking connector and international adapters
- Welcome booklet
- DaVinci Resolve Studio activation key
Details of the manufacturer
- Blackmagic Design Pty Ltd
- Grant Petty
- 180 Bank Street
- South Melbourne, 3205, Victoria, Australia
+613 96824770
info-europe@blackmagicdesign.com
Details of the person responsible for putting the product on the European market
- Blackmagic Design PTY
- Rijnlanderweg 766D
- 2132NM Amsterdam, The Netherlands
Related links of the manufacturer
Skip product gallery
Similar products
Blackmagic PYXIS 6K Leica L
PLNÂ 14,675.00*
net: PLNÂ 11,930.89
PYXIS 6K:
L-Mount
Blackmagic PYXIS 6KAdvanced digital film camera with an incredibly versatile design! Includes full frame 36 x 24mm 6K sensor, wide dynamic range and records Blackmagic RAW with proxies to CFexpressIntroducing the next generation customizable cinema camera! Blackmagic PYXIS 6K is a high end digital film camera that produces precise skin tones and rich organic colors. It features an extremely versatile design that lets you build the perfect camera rig for your production! You get a full frame 36 x 24mm 6K sensor with wide dynamic range with a built in optical low pass filter that's been designed to perfectly match the sensor. Plus there are 3 models available in either EF, PL or L-Mount. You also get 2 x CFexpress media recorders and Ethernet for sharing media to Blackmagic Cloud! It even records both 12-bit Blackmagic RAW and extremely small H.264 proxies files at the same time!PYXIS 6K Features36 x 24mm full frame 6K 6048 x 4032 sensorOpen gate 3:2, full height 6:5 anamorphic and Super 35 for creating cinematic contentChoice of models with L-Mount, PL or locking EF lens mountsRecords full resolution up to 36 fps or 120 fps windowedBuilt-in 4″ HDR 1500 nit LCD screenRecords Blackmagic RAW and H.264 proxiesExtremely fast dual CFexpress card recordingEthernet or mobile data for mobile remote streamingOptional Blackmagic URSA Cine EVFFeatures 12G-SDI for monitoring with status overlayProfessional mini XLR input with 48 volt phantom powerComplete streaming solution for YouTube, Facebook, Twitter and moreHigh capacity BP-U series batteries
What's IncludedBlackmagic PYXIS 6KLens turret dust capPYXIS Standard PlatePYXIS SSD Plate60W power supply with locking connector and international adaptersWelcome bookletDaVinci Resolve Studio activation key
Variants from PLNÂ 13,957.43*
Blackmagic PYXIS 6K Canon EF
PLNÂ 14,675.00*
net: PLNÂ 11,930.89
PYXIS 6K:
EF-Mount
Blackmagic PYXIS 6KAdvanced digital film camera with an incredibly versatile design! Includes full frame 36 x 24mm 6K sensor, wide dynamic range and records Blackmagic RAW with proxies to CFexpressIntroducing the next generation customizable cinema camera! Blackmagic PYXIS 6K is a high end digital film camera that produces precise skin tones and rich organic colors. It features an extremely versatile design that lets you build the perfect camera rig for your production! You get a full frame 36 x 24mm 6K sensor with wide dynamic range with a built in optical low pass filter that's been designed to perfectly match the sensor. Plus there are 3 models available in either EF, PL or L-Mount. You also get 2 x CFexpress media recorders and Ethernet for sharing media to Blackmagic Cloud! It even records both 12-bit Blackmagic RAW and extremely small H.264 proxies files at the same time!PYXIS 6K Features36 x 24mm full frame 6K 6048 x 4032 sensorOpen gate 3:2, full height 6:5 anamorphic and Super 35 for creating cinematic contentChoice of models with L-Mount, PL or locking EF lens mountsRecords full resolution up to 36 fps or 120 fps windowedBuilt-in 4″ HDR 1500 nit LCD screenRecords Blackmagic RAW and H.264 proxiesExtremely fast dual CFexpress card recordingEthernet or mobile data for mobile remote streamingOptional Blackmagic URSA Cine EVFFeatures 12G-SDI for monitoring with status overlayProfessional mini XLR input with 48 volt phantom powerComplete streaming solution for YouTube, Facebook, Twitter and moreHigh capacity BP-U series batteries
What's IncludedBlackmagic PYXIS 6KLens turret dust capPYXIS Standard PlatePYXIS SSD Plate60W power supply with locking connector and international adaptersWelcome bookletDaVinci Resolve Studio activation key
Variants from PLNÂ 13,957.43*
Blackmagic PYXIS 6K PL
PLNÂ 13,957.43*
net: PLNÂ 11,347.50
PYXIS 6K:
PL-Mount
Blackmagic PYXIS 6KAdvanced digital film camera with an incredibly versatile design! Includes full frame 36 x 24mm 6K sensor, wide dynamic range and records Blackmagic RAW with proxies to CFexpressIntroducing the next generation customizable cinema camera! Blackmagic PYXIS 6K is a high end digital film camera that produces precise skin tones and rich organic colors. It features an extremely versatile design that lets you build the perfect camera rig for your production! You get a full frame 36 x 24mm 6K sensor with wide dynamic range with a built in optical low pass filter that's been designed to perfectly match the sensor. Plus there are 3 models available in either EF, PL or L-Mount. You also get 2 x CFexpress media recorders and Ethernet for sharing media to Blackmagic Cloud! It even records both 12-bit Blackmagic RAW and extremely small H.264 proxies files at the same time!PYXIS 6K Features36 x 24mm full frame 6K 6048 x 4032 sensorOpen gate 3:2, full height 6:5 anamorphic and Super 35 for creating cinematic contentChoice of models with L-Mount, PL or locking EF lens mountsRecords full resolution up to 36 fps or 120 fps windowedBuilt-in 4″ HDR 1500 nit LCD screenRecords Blackmagic RAW and H.264 proxiesExtremely fast dual CFexpress card recordingEthernet or mobile data for mobile remote streamingOptional Blackmagic URSA Cine EVFFeatures 12G-SDI for monitoring with status overlayProfessional mini XLR input with 48 volt phantom powerComplete streaming solution for YouTube, Facebook, Twitter and moreHigh capacity BP-U series batteries
What's IncludedBlackmagic PYXIS 6KLens turret dust capPYXIS Standard PlatePYXIS SSD Plate60W power supply with locking connector and international adaptersWelcome bookletDaVinci Resolve Studio activation key
Skip product gallery
Accessories
New

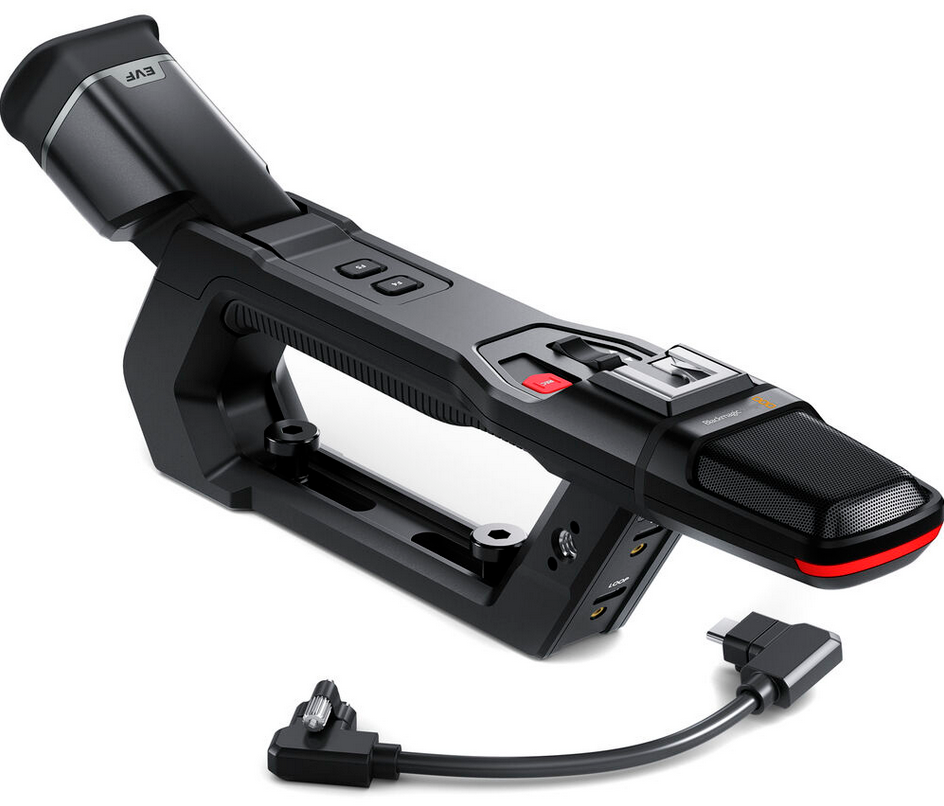

Blackmagic PYXIS Pro Handle
PLNÂ 5,470.76*
net: PLNÂ 4,447.77
Blackmagic PYXIS Pro HandleSKU: BM-CINEURSABC/AMBlackmagic PYXIS Pro Handle is a convenient top handle that attaches to Blackmagic PYXIS cameras. But it’s more than just a simple handle, it’s a powerful accessory that helps bring digital film quality to broadcast and television production.The integrated viewfinder makes outdoors and handheld shooting accurate and easy! Customers get a high quality HD OLED display with built in proximity sensor, 4 element glass diopter for incredible accuracy with a wide -4 to +4 focus adjustment.A built in digital focus chart ensures customers get perfect viewfinder focus setup. Customers can also view important status information such as frame guides. The viewfinder even pivots up and down, making it easier to shoot comfortably from high or low positions.
New

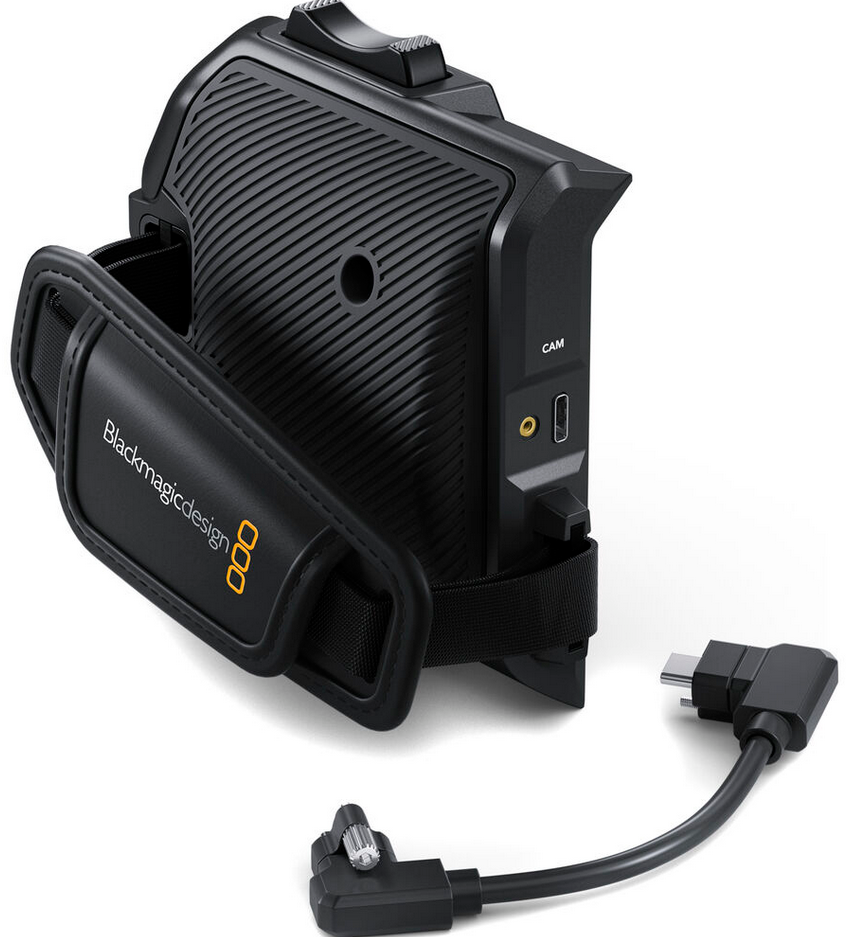

Blackmagic PYXIS Pro Grip
