Blackmagic Teranex Mini SDI to HDMI 8K HDR

Blackmagic Teranex Mini SDI to HDMI 8K HDR

SKU: CONVN8TRM/AA/SDIH

Advanced 8K HDMI monitoring solution with dual on-screen scope overlays, HDR, 33 point 3D LUTs and monitor calibration!

Teranex Mini SDI to HDMI 8K HDR is an advanced 8K monitoring solution for large screen televisions and video projectors. Unlike basic converters, Teranex Mini can use third party calibration probes to accurately align connected displays for precise color. There are 2 on‑screen scopes that can be selected between WFM, Parade, Vector and Histogram. Blackmagic Teranex Mini SDI to HDMI 8K HDR is perfect for film studios and broadcasters who need professional but affordable color accurate monitoring. You also get an elegant design with color LCD for monitoring and control of settings!

Advanced Calibrated 8K Monitoring

Teranex Mini SDI to HDMI 8K HDR has been designed for any broadcast, live production or feature film work where you need large color accurate SDI monitoring. Perfect for accurate grading monitoring for DaVinci Resolve, you can unload CPU and GPU processing, as Teranex Mini SDI to HDMI 8K HDR draws the 3D LUTs and scopes for you. That's important when using heavy 8K formats. Teranex Mini SDI to HDMI 8K HDR is also great when using large televisions for multi view on switchers such as ATEM Constellation 8K so each view is large enough to check focus. You can even use quad split to build large video walls from multiple monitors. Imagine building giant 8K video walls at concerts and theaters!

Designed for Broadcast and Post Production

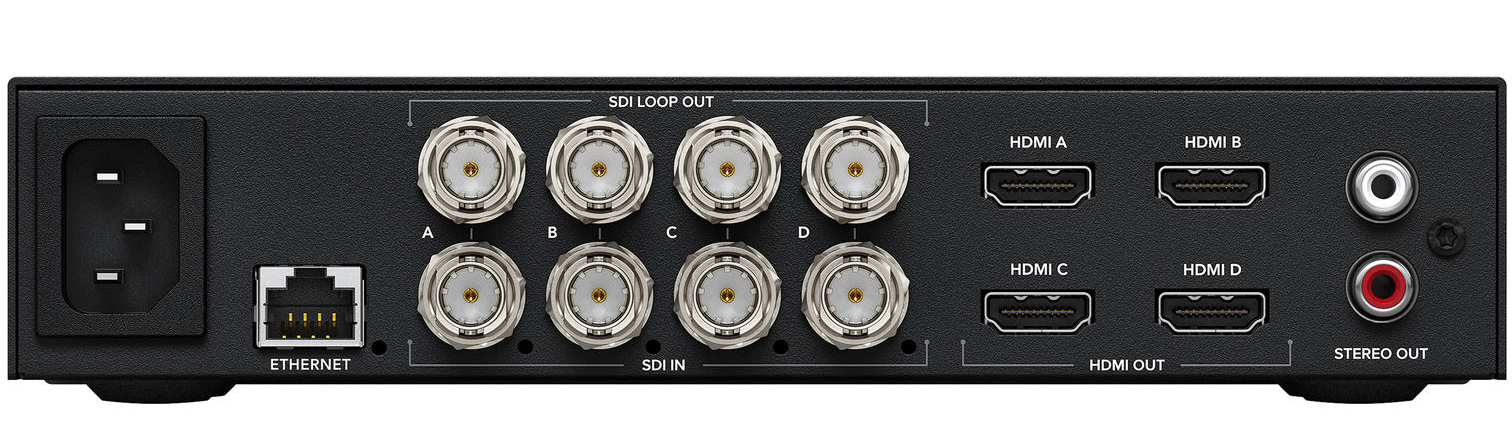

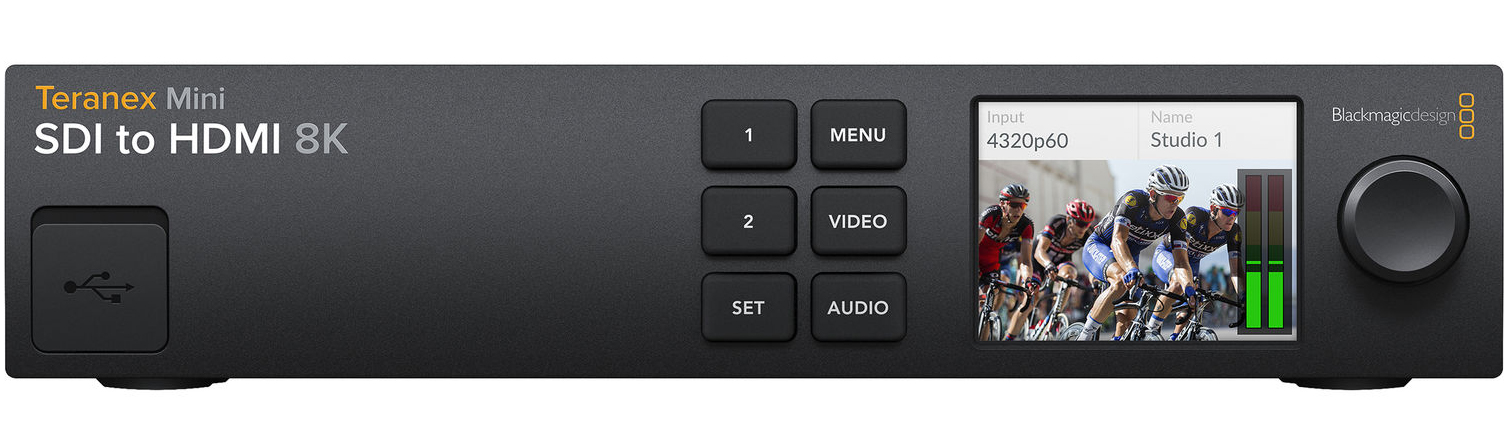

The innovative design is much better than regular converters as you can rack mount the converter if needed. The front panel feels elegant when placed on a desktop plus it includes buttons and a color display for video monitoring with audio meters and video standard. The rear panel has Quad Link 12G‑SDI for HD, Ultra HD as well as 8K formats. There are also 4 HDMI outputs allowing use with 8K televisions that feature quad HMDI inputs, plus a down converter for using 8K sources on Ultra HD or HD televisions. You can even convert between 2SI and Square Division all automatically! There's also AC power, analog audio HiFi out and a front panel USB connection for use with monitor calibration probes.

Latest HDR Support

Teranex Mini SDI to HDMI 8K has everything for the latest HDR workflows. All that’s required is to connect a HDMI display to get HDR SDI monitoring. Static metadata PQ and Hybrid Log Gamma (HLG) formats in the VPID are handled according to the ST2108‑1, ST2084 and the ST425 standards. Teranex Mini SDI to HDMI 8K HDR handles ST425 which defines 2 new bits in the VPID to indicate transfer characteristic of SDR, HLG or PQ. Plus the ST2108‑1 standard defines how to transport HDR static or dynamic metadata over SDI. Plus there is support for ST2082‑10 for 12G SDI as well as ST425 for 3G‑SDI sources. Both Rec.2020 and Rec.709 colorspaces are supported and 100% of the DCI‑P3 format.
