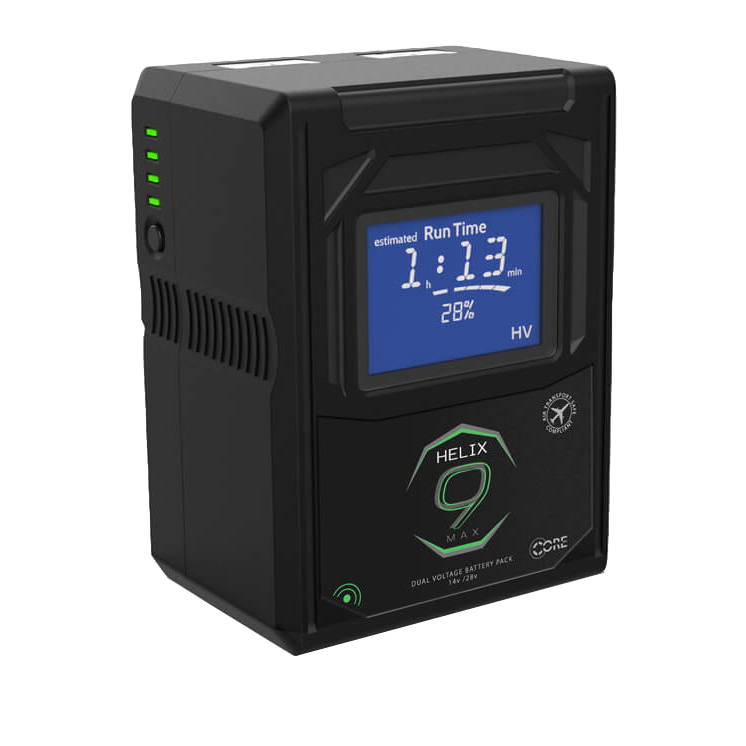

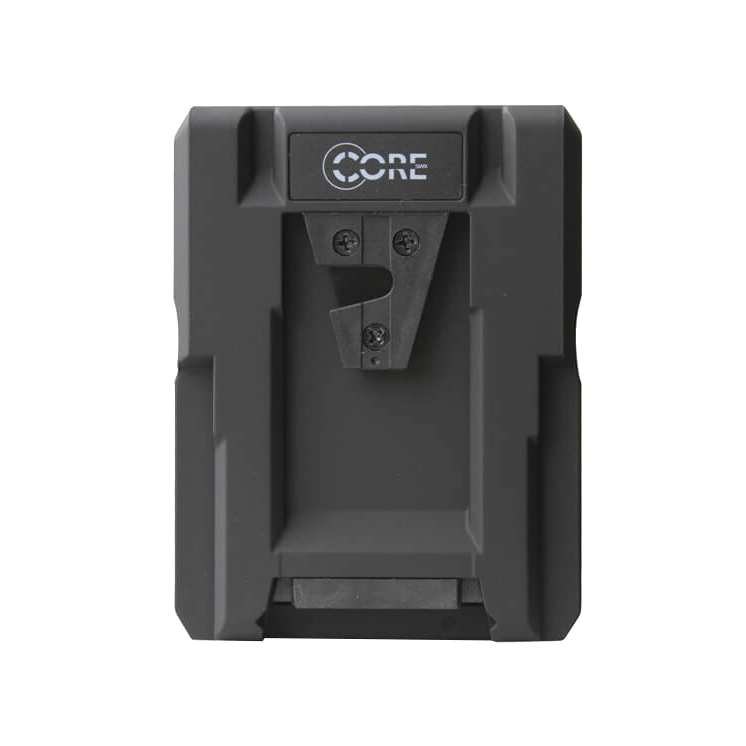

Core SWX Helix9max Dual voltage lithium ion v-mount battery

Core SWX HLX-9MXS

Helix is the most complete on-board battery system ever offered to the cinematic industry. The system encompasses all the features of Hypercore NEO, with the added function of dual 14v/28v simultaneous voltage output, answering the call for better designed and performing, on-board high voltage solutions.

Leveraging a proprietary, patented technology, Helix is ultra-efficient, providing nearly lossless power transmission at a 99% efficiency rate to high voltage operating equipment. Helix’s unique design allows it to output up to 33.6v, within the top range of high voltage acceptance, thus drawing less current, creating less heat and extending both operational runtime and product longevity.

Now even more robust with a maximum output of 20A(10A at 28.8v HV), the Helix Max series is capable of handling the most demanding power builds in the cinema industry. Available in 98wh and 150wh models, the packs will provide ample runtime in most camera and lighting applications but can also be used in conjunction with a Helix Hotswap plate to double available battery capacity and extend runtimes.

Offered in V-mount and 3-Stud, and with the inclusion of ARRI’s B-mount protocol, the Helix Max series can cover all your powering needs.

Features

14.4v/28.8v, 98wh battery pack, LCD and w/ ptap and USB, 20A Max Load - V-mount
Lithium-ion battery chemistry
Wide range, dual voltage output from 11v to 33.6v
V-mount with SMBUS camera/charger communication
Super robust build with 20A current delivery at 16.8v(LV) and 10A delivery at 33.6v(HV)
Runtime LCD
P-Tap for aux output and 5v USB for powering mobile devices
2k cycles/2 year warranty
UN38.3 certified for ease of travel and shipping without limitations

Technical data

Capacity: 98Wh (14.8v, 6.6Ah)
Operational Voltage: Dual Voltage, DC 11v-16.8v/DC 22v-33.6v
Size: 89.92 mm x 118.11 mm x 60.45 mm
Weight: 0.8 kg
Load: 20A @ 16.8v, 10A @ 33.6v
Mount Type: V-mount

Products from american company Core SWX in NEFAL.tv's Online Shop

Related links of the manufacturer

Accessory Items

Free shipping

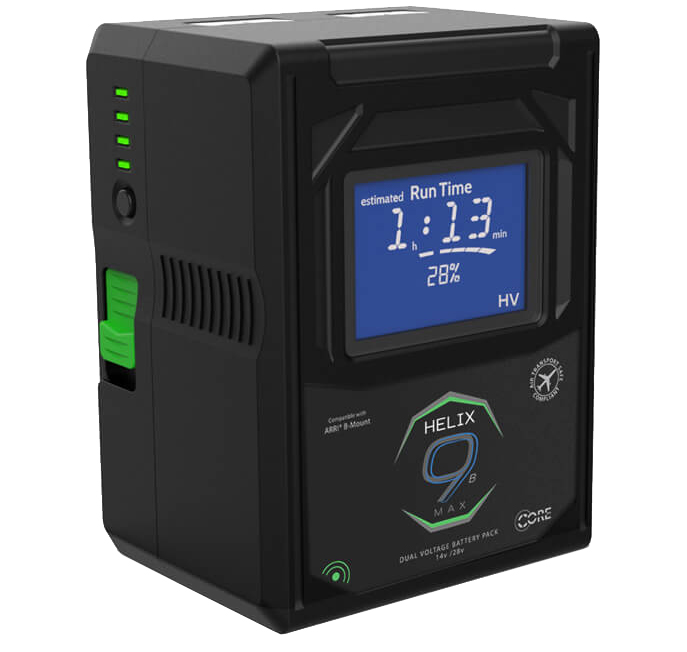

Core SWX HLX-9MXB Helix Max 98Wh Lithium-Ion Battery (B-Mount)
Core SWX HLX-9MXB Helix is the most complete on-board battery system ever offered to the cinematic industry. The system encompasses all the features of Hypercore NEO, with the added function of dual 14v/28v simultaneous voltage output, answering the call for better designed and performing, on-board high voltage solutions.  Leveraging a proprietary, patented technology, Helix is ultra-efficient, providing nearly lossless power transmission at a 99% efficiency rate to high voltage operating equipment. Helix’s unique design allows it to output up to 33.6v, within the top range of high voltage acceptance, thus drawing less current, creating less heat and extending both operational runtime and product longevity.  Now even more robust with a maximum output of 20A(10A at 28.8v HV), the Helix Max series is capable of handling the most demanding power builds in the cinema industry. Available in 98wh and 150wh models, the packs will provide ample runtime in most camera and lighting applications but can also be used in conjunction with a Helix Hotswap plate to double available battery capacity and extend runtimes.  Offered in V-mount and 3-Stud, and with the inclusion of ARRI’s B-mount protocol, the Helix Max series can cover all your powering needs. Features 14.4v/28.8v, 98wh battery pack, LCD and w/ ptap and USB, B-mount, 20A Max Load - B-mountLithium-ion battery chemistryWide range, dual voltage output from 11v to 33.6vV-mount with SMBUS camera/charger communicationSuper robust build with 20A current delivery at 16.8v(LV) and 10A delivery at 33.6v(HV)Runtime LCDP-Tap for aux output and 5v USB for powering mobile devicesAluminum release lever insures long term durability2k cycles/2 year warrantyUN38.3 certified for ease of travel and shipping without limitations Technical data Capacity: 98Wh (14.8v, 6.6Ah)Operational Voltage: Dual Voltage, DC 11v-16.8v/DC 22v-33.6vSize: 89,92 mm x 118,11 mm x 60,45 mmWeight: 0,8 kgLoad: 20A @ 16.8v, 10A @ 33.6vMount Type: B-mount, Compatible with ARRI B-mount

PLN 2,736.75*
net: PLN 2,225.00
Free shipping

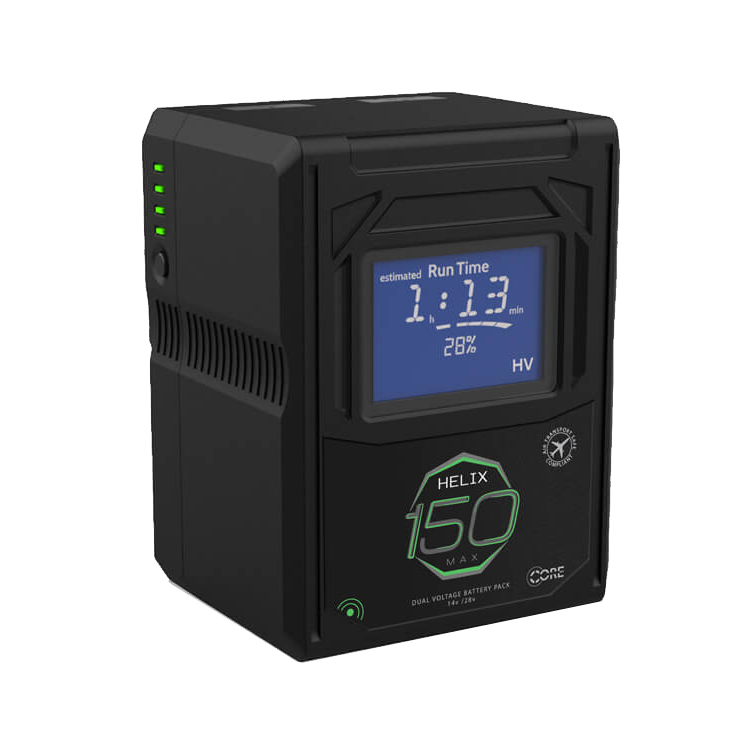

Core SWX Helix150max Dual voltage lithium ion v-mount battery
Core SWX HLX-150MXS Core SWX Helix is the most complete on-board battery system ever offered to the cinematic industry. The system encompasses all the features of Hypercore NEO, with the added function of dual 14v/28v* simultaneous voltage output, answering the call for better designed and performing, on-board high voltage solutions.  Leveraging a proprietary, patented technology, Helix is ultra-efficient, providing nearly lossless power transmission at a 99% efficiency rate to high voltage operating equipment. Helix’s unique design allows it to output up to 33.6v, within the top range of high voltage acceptance, thus drawing less current, creating less heat and extending both operational runtime and product longevity.  Now even more robust with a maximum output of 20A(10A at 28.8v HV), the Helix Max series is capable of handling the most demanding power builds in the cinema industry. Available in 98wh and 150wh models, the packs will provide ample runtime in most camera and lighting applications but can also be used in conjunction with a Helix Hotswap plate to double available battery capacity and extend runtimes.  Offered in V-mount and 3-Stud, and with the inclusion of ARRI’s B-mount protocol, the Helix Max series can cover all your powering needs. Features 14.4v/28.8v, 147wh battery pack, LCD and w/ ptap and USB, 20A Max Load - V-mountLithium-ion battery chemistryWide range, dual voltage output from 11v to 33.6vV-mount with SMBUS camera/charger communicationSuper robust build with 20A current delivery at 16.8v(LV) and 10A delivery at 33.6v(HV)Runtime LCDP-Tap for aux output and 5v USB for powering mobile devices2k cycles/2 year warranty Technical data Capacity: 147Wh (14.8v, 9.9Ah)Operational Voltage: Dual Voltage, DC 11v-16.8v/DC 22v-33.6vSize: 89.92 x 118.11 x 68.6 mmWeight: 1 kgLoad: 20A @ 16.8v, 10A @ 33.6vMount Type: V-mount

PLN 3,503.04*
net: PLN 2,848.00
Free shipping

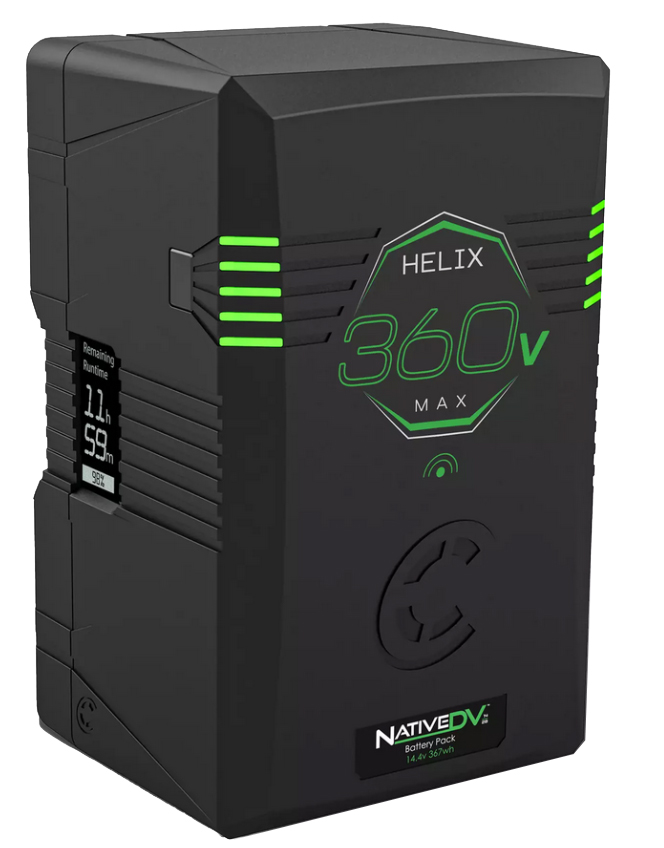

Core SWX HLX-360MXV Helix Max 360 V-mt
Core SWX Helix Max 360 V-mt SKU: HLX-360MXV Core SWX Helix Max 360 V-mt is a native Dual Voltage lithium ion battery with a robust load output - 367Wh V-Mount. Helix Max can cover all of your high voltage and low voltage powering needs, making it the go-to power solution for all cinematographers and filmmakers. So, if you are looking for an ultra-efficient, dual voltage platform that guarantees lossless power transmission and optimal performance, Helix Max is the perfect choice for you. Capacity: 367wh Operational Voltage: Native Dual Voltage, DC 11v-16.8v/DC 22v-33.6v Size: 8,89 cm x 16 cm  x 9,14 cm Weight: 1,63 kg Load: continuous 20A @ 16.8v and 10A @ 33.6v

PLN 4,428.06*
net: PLN 3,600.05
Free shipping
Core SWX HLX-150S HELIX 150 Mini 150Wh Dual-Voltage Battery (V-Mount)
Core SWX HELIX 150 Mini V-Mt SKU: HLX-150S Core SWX Helix is the most complete on-board battery system ever offered to the cinematic industry. The system encompasses all the features of Hypercore, with the added function of dual 14v/28v simultaneous voltage output, answering the call for better designed and performing, on-board high voltage solutions. Leveraging a proprietary, patent pending technology, Helix is ultra efficient, providing nearly lossless power transmission at a 99% efficiency rate to high voltage operating equipment. Helix’s unique design allows it to output up to 33.6v, within the top range of high voltage acceptance, thus drawing less current, creating less heat and extending both operational runtime and product longevity. Helix’s uniquely designed infrastructure allows the pack to function as a standard V-mount or Gold mount 14v pack in all applications without the fear of accidentally transmitting high voltage. Along with standard powering applications, Helix charges on all standard v-mount and gold mount Lithium-Ion equipment, including Anton/Bauer, allowing it to seamlessly integrate into your current fleet of battery packs. 150wh, 10.2Ah, 14.8v native9cm x 11.8cm x 5.8cm, 0.82kg12A max load, 15A peakSingle Powertap outputV-mount model carries SMBUSLonger runtime compact High Voltage optionLimited with Air Travel restrictions

PLN 3,503.04*
net: PLN 2,848.00
Free shipping

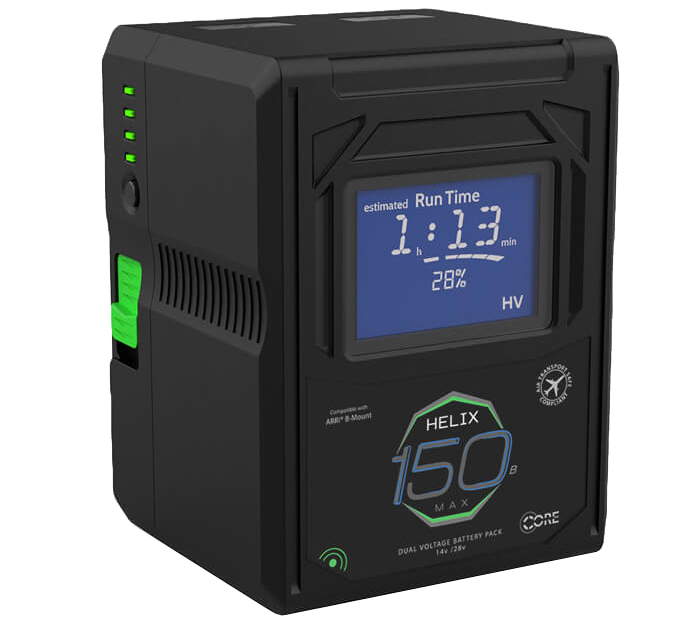

Core SWX HLX-150MXB Helix Max 147Wh Lithium-Ion Battery (B-Mount)
Core SWX HLX-150MXB Core SWX Helix is the most complete on-board battery system ever offered to the cinematic industry. The system encompasses all the features of Hypercore NEO, with the added function of dual 14v/28v simultaneous voltage output, answering the call for better designed and performing, on-board high voltage solutions.  Leveraging a proprietary, patented technology, Helix is ultra-efficient, providing nearly lossless power transmission at a 99% efficiency rate to high voltage operating equipment. Helix’s unique design allows it to output up to 33.6v, within the top range of high voltage acceptance, thus drawing less current, creating less heat and extending both operational runtime and product longevity.  Now even more robust with a maximum output of 20A(10A at 28.8v HV), the Helix Max series is capable of handling the most demanding power builds in the cinema industry. Available in 98wh and 150wh models, the packs will provide ample runtime in most camera and lighting applications but can also be used in conjunction with a Helix Hotswap plate to double available battery capacity and extend runtimes.  Offered in V-mount and 3-Stud, and with the inclusion of ARRI’s B-mount protocol, the Helix Max series can cover all your powering needs. Features 14.4v/28.8v, 147wh battery pack, LCD and w/ ptap and USB, B-mountLithium-ion battery chemistryWide range, dual voltage output from 11v to 33.6vV-mount with SMBUS camera/charger communicationSuper robust build with 20A current delivery at 16.8v(LV) and 10A delivery at 33.6v(HV)Runtime LCDPTap for aux output and 5v USB for powering mobile devicesAluminum release lever insures long term durability2k cycles/2 year warranty Technical data Capacity: 147Wh (14.8v, 9.9Ah)Operational Voltage: Dual Voltage, DC 11v-16.8v/DC 22v-33.6vSize: 89,92 mm x 118,11 mm x 68,6 mmWeight: 1 kgLoad: 20A @ 16.8v, 10A @ 33.6vMount Type: B-mount, Compatible with ARRI B-mount

PLN 3,557.78*
net: PLN 2,892.50
Free shipping

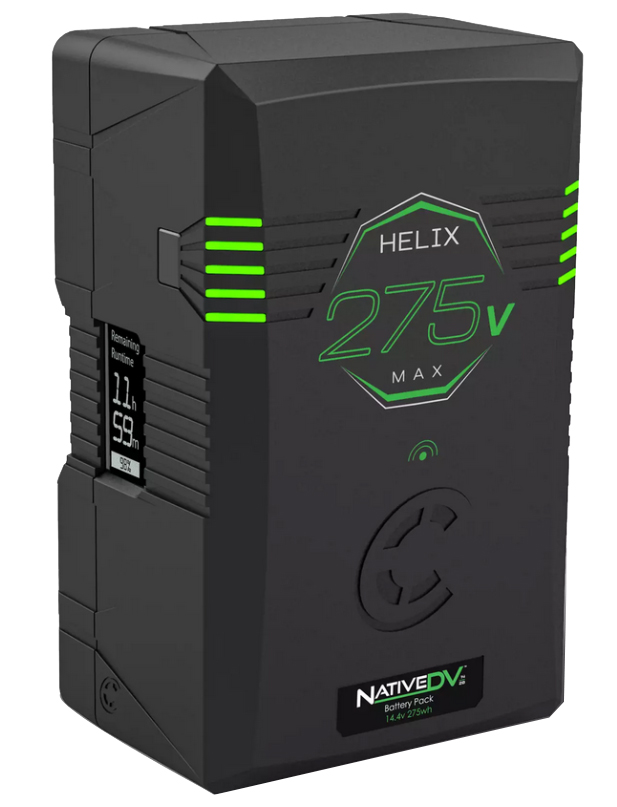

Core SWX HLX-275MXV Helix Max 275 V-mt
Core SWX Helix Max 275 V-mt SKU: HLX-275MXV Core SWX Helix Max 275 V-mt is a Native Dual Voltage lithium ion v-mount battery with a robust load output. The Helix Max 275 is equipped with a 3-phase backlit runtime LCD, strategically mounted on the side of the pack, providing the camera operator or grip unparalleled information on battery life and charge status. This advanced LCD is designed to display estimated runtime when the pack is not in use and actual calculated runtime when it is in use by sampling the load every 3 seconds. When placed on a charger, the LCD rotates 90 degrees to display the remaining charge time until the battery is fully charged. Additionally, the LCD displays a bar graph, runtime in hours and minutes, and remaining percentage capacity, allowing filmmakers and lighting professionals to make informed decisions about their power management strategy. Additionally, Helix Max battery packs are able to communicate remaining runtime to the camera’s display. By transmitting the same information displayed on the runtime LCD to the camera, operators can view important data such as voltage, battery runtime, and percentage directly on their camera. This feature not only saves time by eliminating the need to check the battery’s status manually, but it also ensures that camera operators always have the most up-to-date information about the battery’s performance. With this level of communication, professionals can work with greater efficiency and accuracy, knowing they have a reliable power source to support their creative vision. Features 2K Cycles 2Y WarrantyCamera CommunicationCompatible ChargingDual Voltage OutputHigh Current DeliveryHigh Voltage EfficiencyRFIDRuntime LCDUSB PowerWraparound LED Technical data Native Dual Voltage lithium ion battery with a robust load outputCapacity: 275whOperational Voltage: Native Dual Voltage, DC 11v-16.8v/DC 22v-33.6vSize: 8,89 cmx 16 cm x 7 cmWeight: 1,40 kgLoad: continuous 20A @ 16.8v and 10A @ 33.6v

PLN 3,940.92*
net: PLN 3,204.00

Similar products

Free shipping

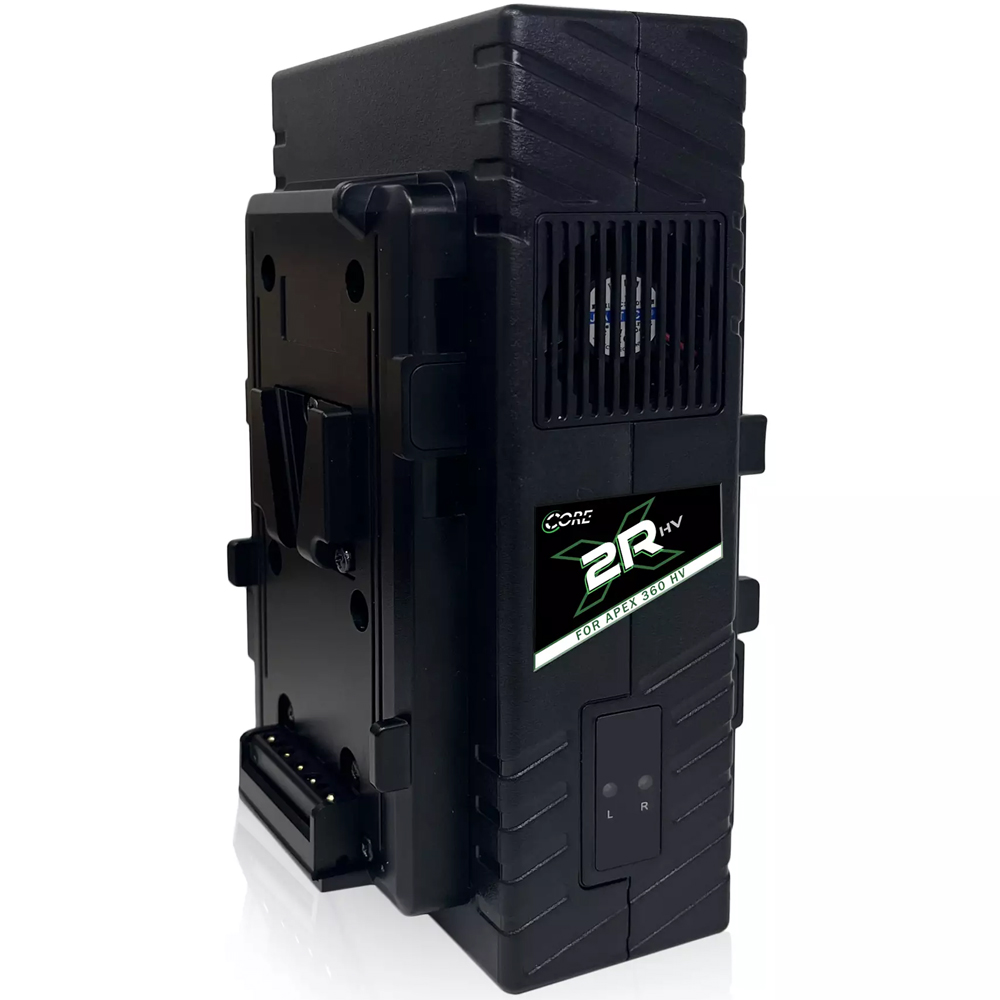

Core SWX X2 Charger HV
