Core SWX HLX-275MXG Helix Max 275 G-mt

Core SWX HCXL-AG Hypercore XL SKU: HCXL-AG The Hypercore series of battery packs employ the very latest in Lithium Ion technology. The Hypercore cell was constructed with the specific purpose of handling and sustaining high power draws. The cells in Hypercore XL can withstand up to a 15A draw (20A peak) for extended periods of time while not diminishing service life. The HyperCore series delivers the most value and ROI for those who require battery packs to stand the test of time and deliver unrivaled performance. The battery cells are incased in an over molded, rubberized housing, something Core SWX has been offering for nearly 8 years. The case provides additional protection against accidental impacts; and the rubber texture reduces the chance of the battery slipping out of your hands. In addition, the battery pack is outfitted with a multipurpose Runtime LCD on the front of the pack. The front provides a canvas to place a large, back-lit LCD on the most visible part of the battery. For ENG cameramen, there is also a 4-stage LED display on the side of the battery, which can be used to glance at leftover battery capacity. Getting back to the LCD, the LCD is multipurpose. Not only will the LCD inform you how much time you have left when in use(in hours and minutes), but it will also give you an estimation based on a dummy load of 30w, when in standby (disconnected from any devices). Furthermore, this serves a third purpose as a charge indicator, by computing remaining charge time when on a charger. The battery doesn’t just compute a simple calculation when deciphering runtime. Recognizing the most important feature of the battery for a video professional, Core SWX’ proprietary on-board fuel computer leverages the Hypercore’s “smart” battery platform to take an aggregate view of the past usage of the battery; charge and discharge performance, to provide the most accurate Runtime calculation, down to the minute! Each battery is outfitted with an accelerometer to detect motion, a similar component that is in mobile devices. The accelerometer is tied to a clocking algorithm to gauge how long the battery is not in use. One of the issues with all battery packs is self-discharge when not in use. Hypercore battery packs with go to sleep or hibernate when there is no battery usage or movement after a 48hr period. The LCD shuts down as well to preserve state of charge. Once you pick up the battery, or the battery detects the slightest movement, the battery pack awakens, coming back to life at its maximum capacity. As with all Core SWX brick battery offerings, the Core SWX Hypercore series have an integrated, unregulated P-tap connection on the side of the battery allowing you to power any device accepting 12-16.8vdc. In addition it is one of the first battery products in the industry to incorporate a USB power output. Being proactive, Core SWX recognizes the importance of mobile devices in production nowadays, and by adding the USB port it allows you to accessible charging for your mobile device. Any charger within Core SWX’ charger lineup will charge Hypercore, but the battery series is also the most cross platform, charger-compatible in the industry today. Core SWX 3-stud (Gold) mount offerings are 100% compatible with Anton/BauerTM chargers firmware V3.6 and up. Core SWX HCXL-AG features Capacity: 293wh (14.8V, 19800 mAh) Size: 9,65 cm x 14,91 cm x 7,49 cm Weight: 1,54 kg Normal Runtime: (25W) 11.7Hrs Max Load: 15A, 20A peak for up to 2s P-tap and USB 5V

Core SWX Helix Max 275 B-mt SKU: HLX-275MXB Core SWX Helix Max 275 B-mt is a Native Dual Voltage lithium ion B-mount battery with a robust load output. Core SWX Helix Max is a game-changing on-board battery system that revolutionizes the cinematic industry with its cutting-edge power capabilities. With a focus on powering cinematic camera and lighting equipment, Helix Max is the most complete battery system ever offered to the industry, featuring a Native Dual Voltage, 14v/28v output, providing better designed and performing on-board high voltage solutions. The Native Dual Voltage platform is an advanced power delivery system, which allows Helix Max packs to be both compatible with 14v equipment and chargers, as well as high voltage cinematic camera equipment and lighting. Whether you choose V-mount, G-mount or B-mount, this cutting-edge technology enables the Helix Max to output up to 33.6v, which is within the top range of high voltage acceptance, resulting in less current draw, less heat generation, and longer operational runtime. With this platform, Helix Max can provide up to 12A peak on high voltage and 24A peak on low voltage devices, making it the most efficient and versatile power solution for cinematic equipment and lighting. It allows for 100% efficient power transmission since there is no power regulation on the battery mains, ensuring that your equipment runs optimally and without interruption. Whether you’re shooting on location or in the studio, Helix Max’s Native Dual Voltage technology ensures that you have the power you need to get the job done with maximum efficiency and performance. Features 2K Cycles 2Y WarrantyCamera CommunicationDual Voltage OutputHigh Current DeliveryHigh Voltage EfficiencyRFIDRugged HousingRuntime LCDStorage ModeUSB PowerWraparound LED Technical data Capacity: 275wh Operational Voltage: Native Dual Voltage, DC 11v-16.8v/DC 22v-33.6v Size: 8,89 cm x 16 cm x 7 cm Weight: 1,40 kg Load: continuous 20A @ 16.8v and 10A @ 33.6v

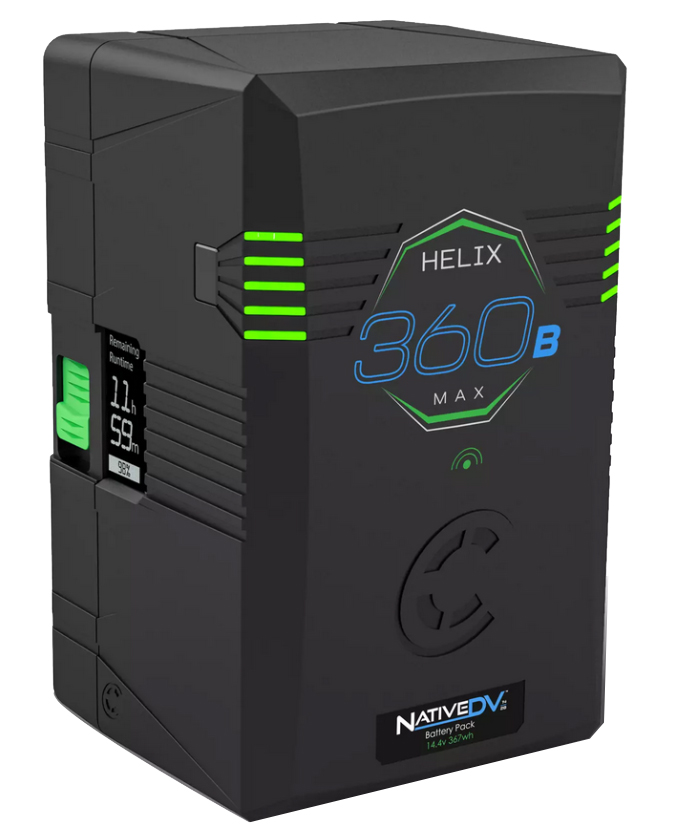

Core SWX Helix Max 360 B-mt SKU: HLX-360MXB Core SWX Helix Max 360 B-mt is a Native Dual Voltage lithium ion battery with a robust load output - 367Wh B-Mount. Helix360max, 14.4v/28.8v, 367wh ARRI B-mount compatible battery pack, LCD and w/ ptap and USB,, 20A Max Load. Helix Max battery packs are able to communicate remaining runtime to the camera’s display. By transmitting the same information displayed on the runtime LCD to the camera, operators can view important data such as voltage, battery runtime, and percentage directly on their camera. This feature not only saves time by eliminating the need to check the battery’s status manually, but it also ensures that camera operators always have the most up-to-date information about the battery’s performance. With this level of communication, professionals can work with greater efficiency and accuracy, knowing they have a reliable power source to support their creative vision. Native Dual Voltage lithium ion battery with a robust load outputCapacity: 367whOperational Voltage: Native Dual Voltage, DC 11v-16.8v/DC 22v-33.6vSize: 8,89 cm x 16 cm x 9,14 cmWeight: 1,63 KGLoad: continuous 20A @ 16.8v and 10A @ 33.6v Features 2K Cycles 2Y WarrantyCamera CommunicationCompatible ChargingDual Voltage OutputHigh Current DeliveryHigh Voltage EfficiencyRFIDRugged HousingStorage ModeUSB PowerWraparound LED

Core SWX Helix Max 275 V-mt SKU: HLX-275MXV Core SWX Helix Max 275 V-mt is a Native Dual Voltage lithium ion v-mount battery with a robust load output. The Helix Max 275 is equipped with a 3-phase backlit runtime LCD, strategically mounted on the side of the pack, providing the camera operator or grip unparalleled information on battery life and charge status. This advanced LCD is designed to display estimated runtime when the pack is not in use and actual calculated runtime when it is in use by sampling the load every 3 seconds. When placed on a charger, the LCD rotates 90 degrees to display the remaining charge time until the battery is fully charged. Additionally, the LCD displays a bar graph, runtime in hours and minutes, and remaining percentage capacity, allowing filmmakers and lighting professionals to make informed decisions about their power management strategy. Additionally, Helix Max battery packs are able to communicate remaining runtime to the camera’s display. By transmitting the same information displayed on the runtime LCD to the camera, operators can view important data such as voltage, battery runtime, and percentage directly on their camera. This feature not only saves time by eliminating the need to check the battery’s status manually, but it also ensures that camera operators always have the most up-to-date information about the battery’s performance. With this level of communication, professionals can work with greater efficiency and accuracy, knowing they have a reliable power source to support their creative vision. Features 2K Cycles 2Y WarrantyCamera CommunicationCompatible ChargingDual Voltage OutputHigh Current DeliveryHigh Voltage EfficiencyRFIDRuntime LCDUSB PowerWraparound LED Technical data Native Dual Voltage lithium ion battery with a robust load outputCapacity: 275whOperational Voltage: Native Dual Voltage, DC 11v-16.8v/DC 22v-33.6vSize: 8,89 cmx 16 cm x 7 cmWeight: 1,40 kgLoad: continuous 20A @ 16.8v and 10A @ 33.6v

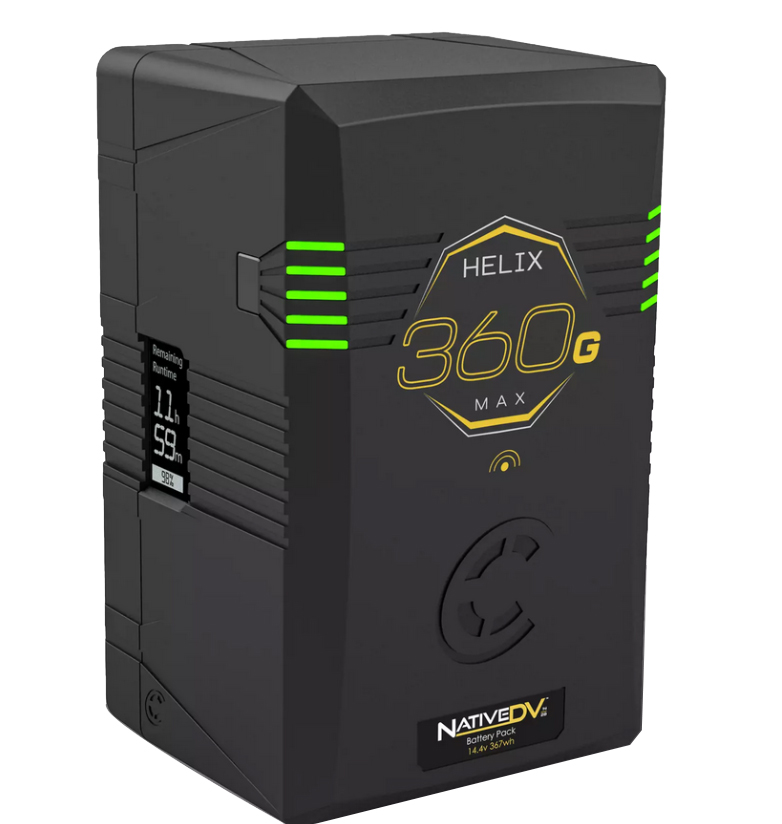

Core SWX Helix Max 360 G-mt SKU: HLX-360MXG Core SWX Helix Max 360 G-mt is a native Dual Voltage lithium ion G-mount battery with a robust load output - 367Wh Gold Mount. Helix360max, 14.4v/28.8v, 367wh 3-stud battery pack, LCD and w/ ptap and USB, , 20A Max Load. Capacity: 367wh Operational Voltage: Native Dual Voltage, DC 11v-16.8v/DC 22v-33.6v Size: 8,89 cm x 16 cm x 9,14 cm Weight: 1,63 kg Load: continuous 20A @ 16.8v and 10A @ 33.6v Features 2K Cycles 2Y WarrantyCamera CommunicationCompatible ChargingDual Voltage OutputHigh Current DeliveryHigh Voltage EfficiencyRFIDRugged HousingRuntime LCDStorage ModeUSB PowerWraparound LED
