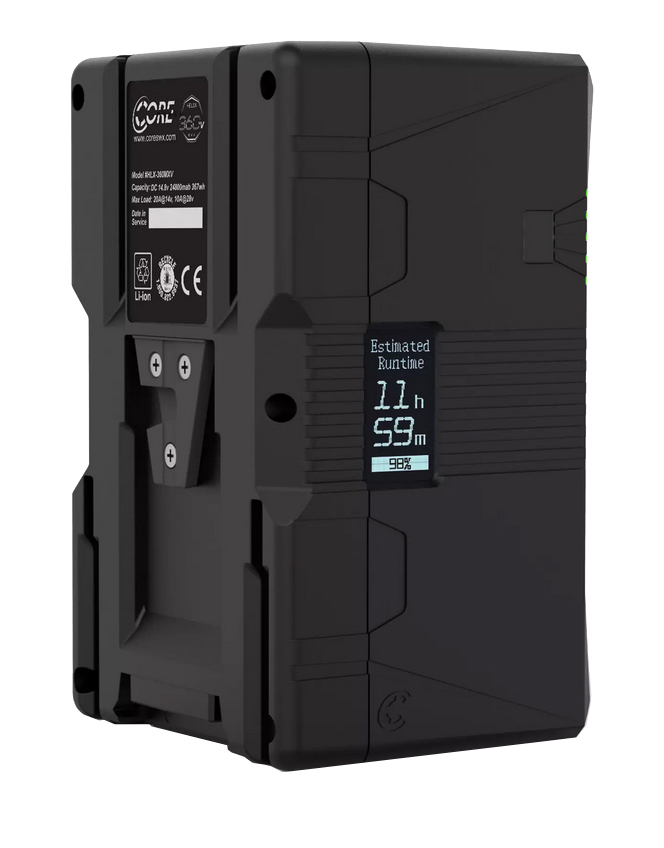

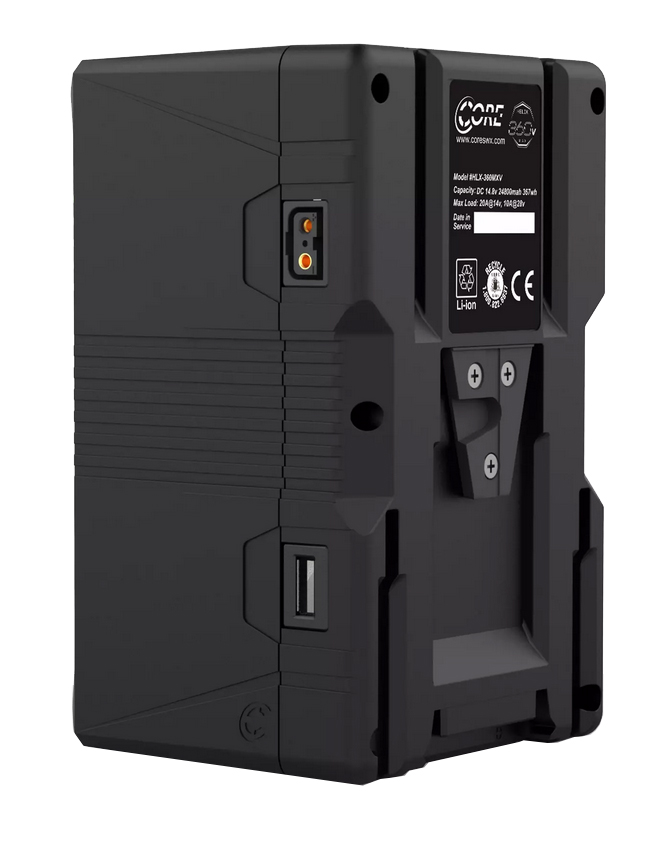

Core SWX HLX-360MXV Helix Max 360 V-mt

SWIT PB-C420S SWIT PB-C420S reaches the world’s largest capacity: 420Wh of handheld V-mount battery, long time power supply for cameras, monitors, lights and many power hungry devices of broadcast and film industry. PB-C420S consists of 24pcs Li-ion cells, 14.4V nominal voltage, 420Wh, 29.4Ah large capacity, and provides with 2x D-tap sockets at left and right side, for camera-top devices. PB-C420S outputs at least 250W/20A high load even at 1% capacity (Peak load up to 305W), to drive high power Cine cameras and on-camera devices together. The high load cells will also ensure battery life comparing to normal load batteries if long time full load output. Over current protection: 24A. PB-C420S supports 100W/6A fast charging to save more than 50% charging time. The 420Wh battery can be charged from 0 to 80% after 3.9 hours, and fully charged within 5.3 hours. The PB-C420S internal controller supports multiple protection circuit, to detect any abnormal conditions includes over load, over charging, over discharging, high temperature, short circuit, etc, and actively protect the devices from potential safely issue. SWIT battery will always be your reliable choice. Technical data Nominal Voltage: 14.4VCapacity: 420Wh/29.4AhPower Load: 250W / 20A constant, 305W peakCharging: DC 16.8V, 6A D-tap: 2x D-tap 150W/10A in totalMount Type: V-mountCharging Temperature: 0-40°CDischarging Temperature: -20°C-50°C (Capacity and Max Load may decrease when operating below 0°)Net weight: Approx 2.07kgDimensions: 155 x 101 x 80mm

Core SWX HLX-150MXS Core SWX Helix is the most complete on-board battery system ever offered to the cinematic industry. The system encompasses all the features of Hypercore NEO, with the added function of dual 14v/28v* simultaneous voltage output, answering the call for better designed and performing, on-board high voltage solutions.  Leveraging a proprietary, patented technology, Helix is ultra-efficient, providing nearly lossless power transmission at a 99% efficiency rate to high voltage operating equipment. Helix’s unique design allows it to output up to 33.6v, within the top range of high voltage acceptance, thus drawing less current, creating less heat and extending both operational runtime and product longevity.  Now even more robust with a maximum output of 20A(10A at 28.8v HV), the Helix Max series is capable of handling the most demanding power builds in the cinema industry. Available in 98wh and 150wh models, the packs will provide ample runtime in most camera and lighting applications but can also be used in conjunction with a Helix Hotswap plate to double available battery capacity and extend runtimes.  Offered in V-mount and 3-Stud, and with the inclusion of ARRI’s B-mount protocol, the Helix Max series can cover all your powering needs. Features 14.4v/28.8v, 147wh battery pack, LCD and w/ ptap and USB, 20A Max Load - V-mountLithium-ion battery chemistryWide range, dual voltage output from 11v to 33.6vV-mount with SMBUS camera/charger communicationSuper robust build with 20A current delivery at 16.8v(LV) and 10A delivery at 33.6v(HV)Runtime LCDP-Tap for aux output and 5v USB for powering mobile devices2k cycles/2 year warranty Technical data Capacity: 147Wh (14.8v, 9.9Ah)Operational Voltage: Dual Voltage, DC 11v-16.8v/DC 22v-33.6vSize: 89.92 x 118.11 x 68.6 mmWeight: 1 kgLoad: 20A @ 16.8v, 10A @ 33.6vMount Type: V-mount

Core SWX Helix Max 275 V-mt SKU: HLX-275MXV Core SWX Helix Max 275 V-mt is a Native Dual Voltage lithium ion v-mount battery with a robust load output. The Helix Max 275 is equipped with a 3-phase backlit runtime LCD, strategically mounted on the side of the pack, providing the camera operator or grip unparalleled information on battery life and charge status. This advanced LCD is designed to display estimated runtime when the pack is not in use and actual calculated runtime when it is in use by sampling the load every 3 seconds. When placed on a charger, the LCD rotates 90 degrees to display the remaining charge time until the battery is fully charged. Additionally, the LCD displays a bar graph, runtime in hours and minutes, and remaining percentage capacity, allowing filmmakers and lighting professionals to make informed decisions about their power management strategy. Additionally, Helix Max battery packs are able to communicate remaining runtime to the camera’s display. By transmitting the same information displayed on the runtime LCD to the camera, operators can view important data such as voltage, battery runtime, and percentage directly on their camera. This feature not only saves time by eliminating the need to check the battery’s status manually, but it also ensures that camera operators always have the most up-to-date information about the battery’s performance. With this level of communication, professionals can work with greater efficiency and accuracy, knowing they have a reliable power source to support their creative vision. Features 2K Cycles 2Y WarrantyCamera CommunicationCompatible ChargingDual Voltage OutputHigh Current DeliveryHigh Voltage EfficiencyRFIDRuntime LCDUSB PowerWraparound LED Technical data Native Dual Voltage lithium ion battery with a robust load outputCapacity: 275whOperational Voltage: Native Dual Voltage, DC 11v-16.8v/DC 22v-33.6vSize: 8,89 cmx 16 cm x 7 cmWeight: 1,40 kgLoad: continuous 20A @ 16.8v and 10A @ 33.6v

Core SWX Helix Max 360 G-mt SKU: HLX-360MXG Core SWX Helix Max 360 G-mt is a native Dual Voltage lithium ion G-mount battery with a robust load output - 367Wh Gold Mount. Helix360max, 14.4v/28.8v, 367wh 3-stud battery pack, LCD and w/ ptap and USB, , 20A Max Load. Capacity: 367wh Operational Voltage: Native Dual Voltage, DC 11v-16.8v/DC 22v-33.6v Size: 8,89 cm x 16 cm x 9,14 cm Weight: 1,63 kg Load: continuous 20A @ 16.8v and 10A @ 33.6v Features 2K Cycles 2Y WarrantyCamera CommunicationCompatible ChargingDual Voltage OutputHigh Current DeliveryHigh Voltage EfficiencyRFIDRugged HousingRuntime LCDStorage ModeUSB PowerWraparound LED

Core SWX HLX-9MXS Helix is the most complete on-board battery system ever offered to the cinematic industry. The system encompasses all the features of Hypercore NEO, with the added function of dual 14v/28v simultaneous voltage output, answering the call for better designed and performing, on-board high voltage solutions.  Leveraging a proprietary, patented technology, Helix is ultra-efficient, providing nearly lossless power transmission at a 99% efficiency rate to high voltage operating equipment. Helix’s unique design allows it to output up to 33.6v, within the top range of high voltage acceptance, thus drawing less current, creating less heat and extending both operational runtime and product longevity.  Now even more robust with a maximum output of 20A(10A at 28.8v HV), the Helix Max series is capable of handling the most demanding power builds in the cinema industry. Available in 98wh and 150wh models, the packs will provide ample runtime in most camera and lighting applications but can also be used in conjunction with a Helix Hotswap plate to double available battery capacity and extend runtimes.  Offered in V-mount and 3-Stud, and with the inclusion of ARRI’s B-mount protocol, the Helix Max series can cover all your powering needs. Features 14.4v/28.8v, 98wh battery pack, LCD and w/ ptap and USB, 20A Max Load - V-mountLithium-ion battery chemistryWide range, dual voltage output from 11v to 33.6vV-mount with SMBUS camera/charger communicationSuper robust build with 20A current delivery at 16.8v(LV) and 10A delivery at 33.6v(HV)Runtime LCDP-Tap for aux output and 5v USB for powering mobile devices2k cycles/2 year warrantyUN38.3 certified for ease of travel and shipping without limitations Technical data Capacity: 98Wh (14.8v, 6.6Ah)Operational Voltage: Dual Voltage, DC 11v-16.8v/DC 22v-33.6vSize: 89.92 mm x 118.11 mm x 60.45 mmWeight: 0.8 kgLoad: 20A @ 16.8v, 10A @ 33.6vMount Type: V-mount

SWIT HB-C420S SWIT HB-C420S provides the world’s largest capacity: 420Wh of handheld V-mount battery, and the world’s largest constant power load: 500W, to drive high power cine lights at longest time. For example, 2x HB-C420S could power Aputure LS 600C PRO at 100% output, and at least 1.2 hours. HB-C420S consists of 24pcs Li-ion cells, 28.8V (22-33.6V) high voltage, 420Wh large capacity, 500W constant load. Please do not use the battery on the device that doesn’t support 22-33.6V input. HB-C420S outputs at least 500W high load even at 1% capacity (Peak load up to 650W), to drive high power gears like the cines lights. Use SWIT dual batteries light stand adaptor TD-R230S, 2x HB-C420S could output 48V 750W to power cine lights like Skypanel S30/60/120, Orbiter, Creamsource Vortex 4 & Vortex 8, Aputure Nova P300/P600 etc. 2x HB-C420S and TD-R230S power adaptor could output 48V 750W DC to full power drive Creamsource Vortex 8 light which requires 650W power. The 2 batteries totally have 840Wh capacity, comparable with a large floor battery but it’s attached on light stand for easy movement, and will power the Vortex 8 for at least 1hr 20min HB-C420S supports DC 33.6V 100W fast charging by PC-P461S charger, to save more than 60% charging time. The 420Wh battery can be charged from 0 to 80% after 3.9 hours, and fully charged within 5.3 hours. Features 28.8V (22-33.6V) high voltage Standard V-mount connection 420Wh large capacity 500W constant high load, 650W peak load 33.6V 100W fast charging support 5-LED digital power indicators Multiple circuit protections Technical data Nominal Voltage: 28.8VCapacity: 420Wh/14.6AhPower Load: 500W constant, 650W peakCharging: DC 33.6V, 3A Mount Type: V-mountCharging Temperature: 0-40°CDischarging Temperature: -20°C-50°C (Capacity and Max Load may decrease when operating below 0°)Net weight: Net 2.07kg; With package2.15kgDimensions: 155 mm x 101 mm x 80mm

Core SWX Helix Max 360 B-mt SKU: HLX-360MXB Core SWX Helix Max 360 B-mt is a Native Dual Voltage lithium ion battery with a robust load output - 367Wh B-Mount. Helix360max, 14.4v/28.8v, 367wh ARRI B-mount compatible battery pack, LCD and w/ ptap and USB,, 20A Max Load. Helix Max battery packs are able to communicate remaining runtime to the camera’s display. By transmitting the same information displayed on the runtime LCD to the camera, operators can view important data such as voltage, battery runtime, and percentage directly on their camera. This feature not only saves time by eliminating the need to check the battery’s status manually, but it also ensures that camera operators always have the most up-to-date information about the battery’s performance. With this level of communication, professionals can work with greater efficiency and accuracy, knowing they have a reliable power source to support their creative vision. Native Dual Voltage lithium ion battery with a robust load outputCapacity: 367whOperational Voltage: Native Dual Voltage, DC 11v-16.8v/DC 22v-33.6vSize: 8,89 cm x 16 cm x 9,14 cmWeight: 1,63 KGLoad: continuous 20A @ 16.8v and 10A @ 33.6v Features 2K Cycles 2Y WarrantyCamera CommunicationCompatible ChargingDual Voltage OutputHigh Current DeliveryHigh Voltage EfficiencyRFIDRugged HousingStorage ModeUSB PowerWraparound LED
