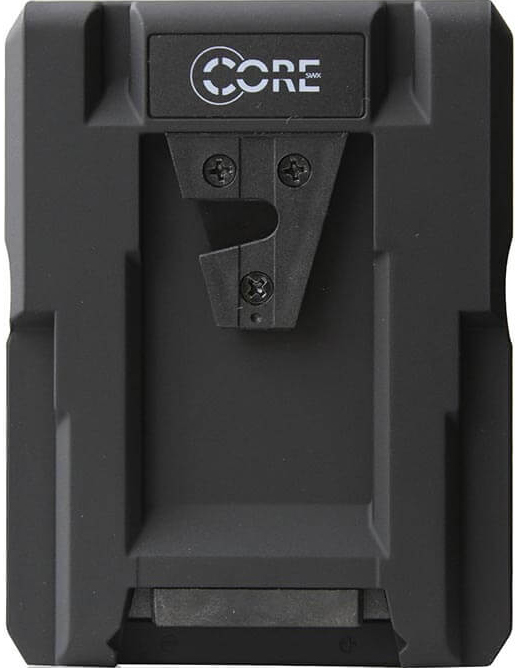

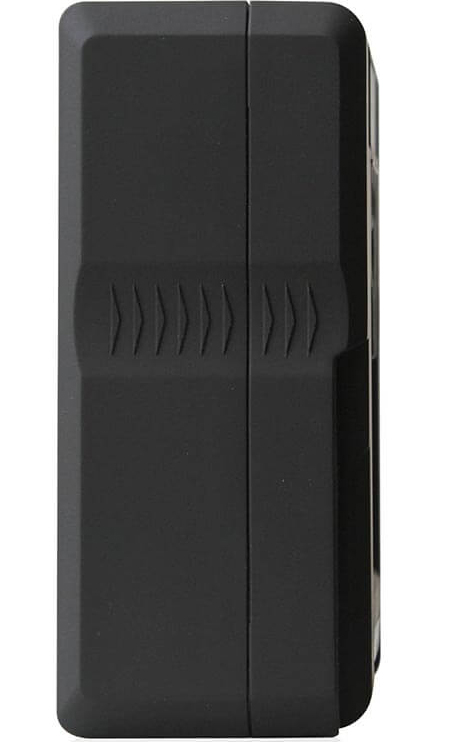

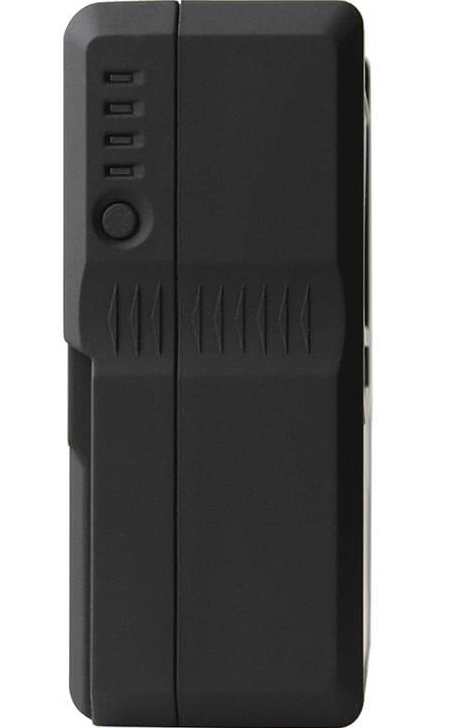

Core SWX Hypercore NEO 9 Mini V-mt (NEO-9S)

Core SWX Hypercore NEO 9 Mini V-mt

SKU: NEO-9S

The Hypercore NEO Mini 9 is the most complete 98wh, 14v Lithium Ion battery pack on the market. Encompassing all the original features of the award winning Hypercore line, with additional features exclusive to NEO.

As with other Core SWX packs, the Core SWX NEO pack is microprocessor-driven, making them safer as well as supporting the transmission of runtime and percentage data to your camera’s viewfinder or LCD. That same data can also be viewed on the new multipurpose, intuitive backlit LCD on the front of the battery packs. The LCD is multipurpose as it provides remaining runtime based on a 30W dummy load while not in-use, a remaining down to the minute runtime while connected to the device you’re powering, and it even provides remaining charge time while connected to a charger.

Further leveraging the microprocessor, the NEO packs have an RFID transmitter on the front of the packs, so you can easily grab all your battery data stored from the pack on your phone via our VoltBridgeID app available in the app store.

Not only was the NEO line constructed similar to Helix with the new LCD and RFID, it was also constructed in a modular design like Helix, which reduces cabling and maximizes product integrity. The pack is put together like building blocks within a very small battery housing, reducing the chance of a failure due to a drop or multiple drops. The modular design also makes it very easy to service as the components are plug and play.

Knowing 10A load delivery doesn’t cut it anymore; the NEO packs have an upgraded cell architecture which can sustain up to 16A peak loads, 12A continuous. In addition, there is SmartTap on the pack allowing you to power any 12vdc device from the p-tap port while also being able to transmit battery data if the device you are using is able to communicate that information. There is also a 5v USB for charging mobile devices, but also offers additional functionality as a fully function firmware upgrade port, so you will never be left behind as we continue to develop.

Lastly, as with all Core SWX battery packs, they are the most charger compatible on the market. The V-mount offerings will charge on RED, IDX, Sony, etc., and the Gold mount offerings will charge on Anton/Bauer chargers.

98wh, 14v Lithium Ion battery
16A Peak / 12A continuous load
RFID Voltbridge data
Totally new internal build, more robust and easier to service
SMBUS & RED Data communication to camera
‘Helix’ style LCD
Gold and V-Mount versions available
