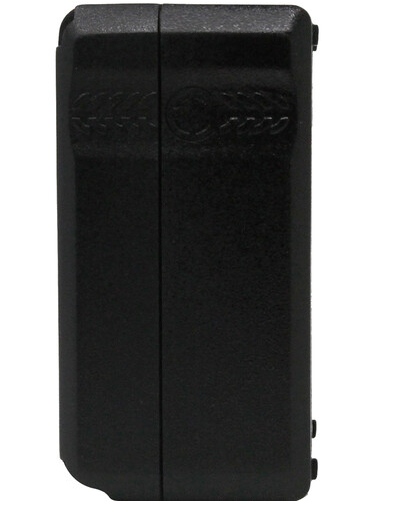

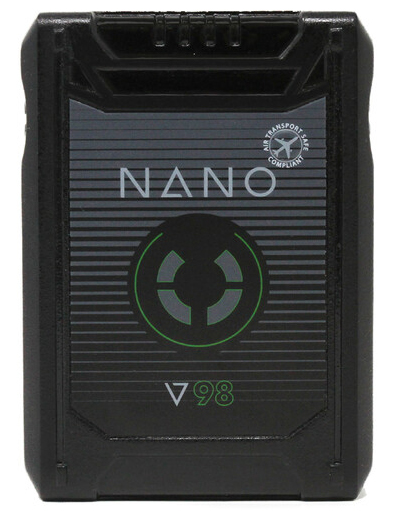

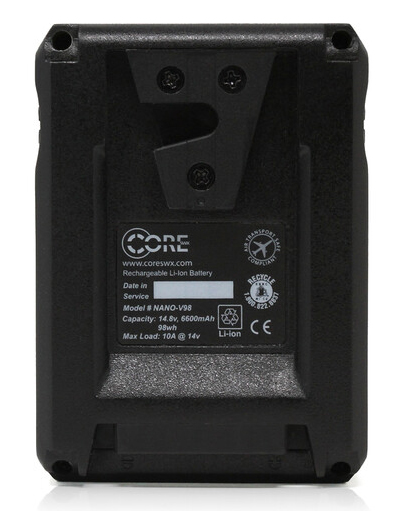

Core SWX NANO Micro 98Wh Lithium-Ion Battery (V-Mount)

PATONA Platinum NANO V50 Brand new to the PATONA Platinum series are our high-current NANO V-Mount batteries in a high-quality housing. Our batteries are equipped with the latest cell technology and have been specially designed to handle and maintain high power consumption. Protective circuits monitor cell equilibrium, temperature, overcharge and overdischarge to ensure safe and proper operation. Compared to normal V-Mount batteries, the new PATONA NANO V-Mount batteries have an approximately 30% smaller design with higher performance data. In addition, particular emphasis was placed on an appealing and modern design. A 4-stage LED display shows you the remaining capacity at any time. The P-Tap / D-Tap output can be used for lamps and many other external devices. Furthermore the USB output can also be used to charge smartphones and tablets, for example. Technical Data Voltage: 14,8 Volt Capacity: 3200mAh / 47Wh Cell type: Li-Ion Number of cells: 4 x 18650 LGMax. Power rating: 9A Overload protection: 10A P-Tap/D-Tap output voltage: max. 100W, 12.0V/8,3A / 16,8V/5,95AUSB-connection: normal mode 5V/2,4A / fast charging mode: 9 V/2A maximumweight: 316 gr size: 75 x 105 x 34mm Brand: PATONA Platinum

Core SWX CORE-N98S New for 2017, the Core Nano series of Lithium ion battery packs replace the ever popular XPL90 series, which was the “go-to” battery solution across all professional video segments for nearly a decade. The packs offer the first economical solution that is “smart,” allowing SMBUS/AN % data to present on the EVFs of most industry cameras, and the AG packs are Anton/Bauer charger compatible. The series features a much slimmer design, consistent with the Hypercore Slim series. The packs are perfect for the majority of camera powering applications with a maximum load handling of 8A. Given the slim design, these packs can be also be used when powering cameras on handheld gimbals, and UAVs. The 14.8v, 98wh capacity allows for the packs to be transported carry-on without restrictions under IATA, ICAO and UN regulations. The packs have been UN tested and certified, passing UN38.3 certification. The Core SWX Nano packs feature an on-board unregulated P-tap which can be used to power most 12vdc devices, as well as doubling as a charge input port. The packs also include a 5V, 3A USB for powering/charging mobile devices. A rubberized, shock absorbent shell casing is used to provide the lightweight pack with greater protection against the rigors of everyday production. The Core Nano packs feature a 4-LED State of Charge power gauge. The Core Nano 98S V-mount battery, offers SMBUS data communication, which communicates with Sony, BMD, etc. and RED DSMC2 cameras,  delivering the exact percentage of remaining capacity to the camera’s VF/LCD. Core SWX Nano V-Mount technical data Capacity: 98wh (14.8V, 6.6 Ah)Size: 9.65 cm x 14.91 cm x 3.78 cmWeight: 0.64 kgNormal Runtime: (25W) 3.6HrsMax Load: 8AP-tap and USB 5V

Hedbox NERO L The new HEDBOX NERO series stands for High Performance and High Safety Design. The new and revolutionary Cells Framing Construction System provides extra security and stability to the inner battery cells. Compared to all the other Battery Brands this new advance system not only makes the NERO batteries much safer for daily professional use but also for transportation. NERO L represents the Large cine V-lock Battery in the NERO family range. Through it’s additional D-Tap DC output the NERO L can deliver power to all professional devices. An extra USB power output allows the charging of mobile phones, tablets or other accessories using one single battery. Technical data Model: NERO L - Professional HIGH LOAD Lithium-Ion Battery PackMount Type: V-Mount ( V-lock holder )Power Meter: Blue Color 4-LED Power Monitor ( Display 100%, 75%, 50%, or 25% SOC capacity )Product Color: Dark GreyBat. Cell Model: LG High Load Stand 18650 x 16Bat. Cell Chemistry: Lithium-IonOutput Voltage: 14.8V DCMinimum Out Voltage: 10.0V DC ( Auto Power Control )Capacity: 13400 mAh / 195 WhMaximum Load: 13A / 190WUSB Output: 5V, 12W / 2.4A max ( Dust Protection Cover )D-Tap Output: 14.8V, 100W / 6.8A max ( Dust Protection Cover )Internal Protection: Cells Framing Construction System Maximum Charge: 16.8V / 3.0ADimensions (WxHxD): 152 x 96 x 60 mm Operating Temperature: –20°C to +45°CWeight: 970 g

Core SWX X2 Nano Micro 98 VM Battery Kit SKU: NANO-V98K Core SWX X2 Nano Micro 98 VM Battery Kit includes: 2 x Nano Micro 98 V-Mount1 x X2 Mini Charger V-Mount

PATONA Platinum NANO V95 The PATONA Platinum series was developed for a sensationally long lasting photo and film pleasure. The performance of the built-in cells is almost inexhaustible. In the PATONA Platinum series, the most advanced cells have been used, which have a quality that is not only extraordinary, but also impressive at the same time. The Platinum series is the highest quality, most durable and most innovative series from PATONA. By purchasing a battery from the PATONA Platinum series you acquire an excellent, exquisite product that will fascinate you. Technical Data Voltage: 14,8 Volt Capacity: 6400mAh / 95Wh Cell type: Li-Ion Number of cells: 8 x 18650 LGMax. Power rating: 11A Overload protection: 12A P-Tap/D-Tap output voltage: max. 100W, 12.0V/8,3A / 16,8V/5,95AUSB-connection: normal mode 5V/2,4A / fast charging mode: 9 V/2A maximumweight: 509 gr size: 75 x 105 x 50mm Brand: PATONA Platinum

Hedbox NERO S The new NERO series of Hedbox stands for High Performance and High Safety Design. The new and revolutionary Cells Framing Construction System provides extra security and stability to the inner battery cells. Compared to all the other Battery Brands this new advance system not only makes the NERO batteries much safer for daily professional use but also for transportation. NERO S represents the smallest cine V-lock Battery in the NERO family range. Through it’s additional D-Tap DC output the NERO S can deliver power to all professional devices. An extra USB power output allows the charging of mobile phones, tablets or other accessories using one single battery. Technical data Model: NERO S Professional HIGH LOAD Lithium-Ion Battery PackMount Type: V-Mount ( V-lock holder )Power Meter: Blue Color 4-LED Power Monitor ( Display 100%, 75%, 50%, or 25% SOC capacity )Product Color: Dark GreyBat. Cell Model: LG High Load Stand 18650 x 8Bat. Cell Chemistry: Lithium-IonOutput Voltage: 14.8V DCMinimum Out Voltage: 10.0V DC ( Auto Power Control )Capacity: 6700 mAh / 98 Wh - On AIR Transport CertificationMaximum Load: 10A / 145WUSB Output: 5V, 12W / 2.4A max ( Dust Protection Cover )D-Tap Output: 14.8V, 100W / 6.8A max ( Dust Protection Cover )Internal Protection: Cells Framing Construction System Maximum Charge: 16.8V / 3.0ADimensions (WxHxD): 152 x 96 x 41 mm Operating Temperature: –20°C to +45°C Weight: 560 g

Hedbox NERO M Hedbox NERO M represents the medium cine V-lock Battery in the NERO family range. Through it’s additional D-Tap DC output the NERO S can deliver power to all professional devices. An extra USB power output allows the charging of mobile phones, tablets or other accessories using one single battery. NERO M contains a built in 4-LED power meter that, at the press of a button, displays the remaining battery percentage at 100%, 75%, 50%, or 25%. NERO M has a standard V-mount connection with a high-quality lightweight aluminum V-wedge to ensure for safe and reliable mounting. Through it’s additional integrated D-Tap DC Power output the NERO M can deliver 14.8V, 118W/8A to all professional devices. An extra USB power output allows the charging of mobile phones, tablets or other accessories using one single battery. Technical data Model: NERO M - Professional HIGH LOAD Lithium-Ion Battery PackMount Type: V-Mount ( V-lock holder )Power Meter: Blue Color 4-LED Power Monitor ( Display 100%, 75%, 50%, or 25% SOC capacity )Product Color: Dark GreyBat. Cell Model: LG High Load Stand 18650 x 16Bat. Cell Chemistry: Lithium-IonOutput Voltage: 14.8V DCMinimum Out Voltage: 10.0V DC ( Auto Power Control )Capacity: 10400 mAh / 150 WhMaximum Load: 13A / 190WUSB Output: 5V, 12W / 2.4A max ( Dust Protection Cover )D-Tap Output: 14.8V, 100W / 6.8A max ( Dust Protection Cover )Internal Protection: Cells Framing Construction System Maximum Charge: 16.8V / 3.0ADimensions (WxHxD): 152 x 96 x 60 mmOperating Temperature: –20°C to +45°CWeight: 880 g

Core SWX Nano Micro 150 VM The Nano Micro series offer some of the smallest style packs on the market today. The Nano Micro 150 measures in at less than 10,16 cm in height and 7,62 cm in depth, while weighing a feathery 0,7 kg, making it a perfect “grab and go” pack. Capable of handling up to a 12A continuous load, consider these packs for the majority of powering applications. The packs feature an on-board unregulated p-tap which can be used to power most 12vdc devices, as well as doubling as a charge input port. The packs also include a 5V, 3A USB. Features 147wh Micro size SMART battery pack14.8v 9.9Ah. 12A Draw (16A peak) with 4 LED GaugeIntegrated Ptap Port and USB, SMBUS Camera CommunicationSize: 9,98 cm x 7,19 cm x 6,68 cmWeight: 0,7 kgNormal Runtime (25W): 5.9 hoursLoad: 16A peak/12A continuous
