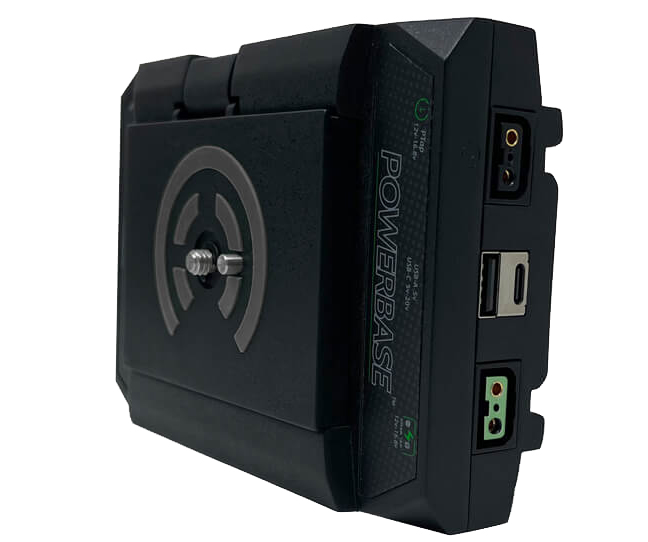

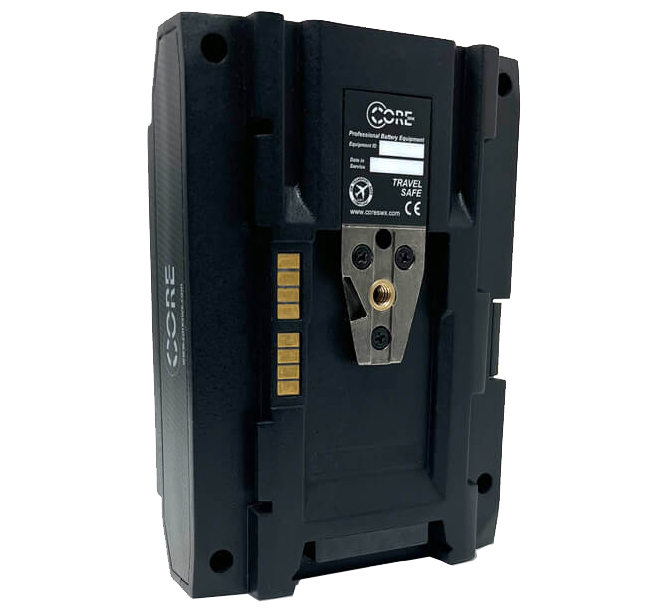

Core SWX PBE-LINK Small Form Cine V-mount Battery Pack 70wh

Core SWX PBE-LITE The Powerbase Edge Lite is the ideal pack for those already invested in the Powerbase system or those that don’t utilize the v-mount connection and want a “base” pack only. Similar to the original Edge, the Edge Lite has nearly all the features of the Edge minus a runtime LCD and the aforementioned V-mount connection. Features Small Form Cine Base Battery Pack 47wh, 14.8v47wh Base pack with 1/4-20 threadsQuick Release plate on top to quickly disconnect/reconnect(compatible with legacy PowerBase Edge model quick release plate)4-Stage LED Gauge2x unregulated ptap for accessories2x 5v USB, 3A output for quick charging mobile devices1x 8v output to use legacy PowerBase Edge battery paddle cables to power DSLRs/CamcordersCharges through ptap only utilizing a PB70C15 or PB70C15USCapacity: 47wh (14.8vdc, 3.3Ah)Size: 14,2 cmx 9,1 cm x 4,1 cmWeight: 0,6 kgMax Continuous Load: 8ANormal Runtime: approx. 8.25 hours (Sony A7 w/o accessories)

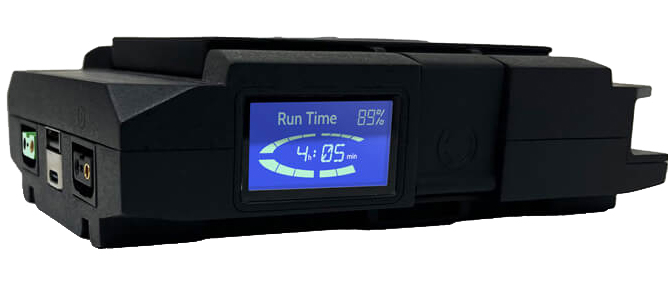

Core SWX PB-EDGE The follow-up to the highly successful Powerbase70, the Powerbase Edge is a feature-rich “small-form” Cine and DSLR pack, in a v-mount form. The 14.8v Lithium Ion pack includes one 8v port to power various cameras, two USB output, and two power tap outputs, one of which being a SmartTap. The 8v port provides a common power output for the majority of DSLRs and small-form cine cameras on the market which utilize small 7.4v Li-Ion battery packs. There are an assortment of dummy battery cable attachments available which insert into that 8v port. In addition to powering the camera, two on-board powertaps are accessible to power monitors, lights, wireless transmitters, etc. The two available USB ports are a welcoming addition to power/charge mobile devices on the fly, as well as power any 5v accessories (i.e. select audio recorders). As it is often difficult to approximate runtime when powering the camera as well as multiple devices, the Powerbase Edge has a built-in runtime LCD, to deliver exact battery expectancy to the minute. The LCD also has a button activated backlight to be view-able in any environment. As with it’s predecessor, the CORE SWX Edge has a quick release plate to attach underneath the camera, or quickly attach/detach to a rig or camera cage. It is 30% smaller than the Powerbase 70 yet can still withstand the draw of a full size Cinematic camera. Features Small Form Cine V-Mount Battery Pack 49wh, 14.8v - Battery Pack OnlyIncludes one 8v port to power various cameras2x USB output2x power tap outputs, one of which being a SmartTapBuilt-in runtime LCDQuick release plate Specifications Capacity: 49wh (14.8vdc, 3.3Ah)Size: 12,95 cm x 9,14 cm x 3,94 cmWeight: 0,59 kgNormal Runtime: approx. 8.25 hours (Sony A7 w/o accessories)Max Continuous Load: 8A
