DataVideo HDR-80 ProRes 4K Video Recorder-Desktop

DataVideo HDR-80

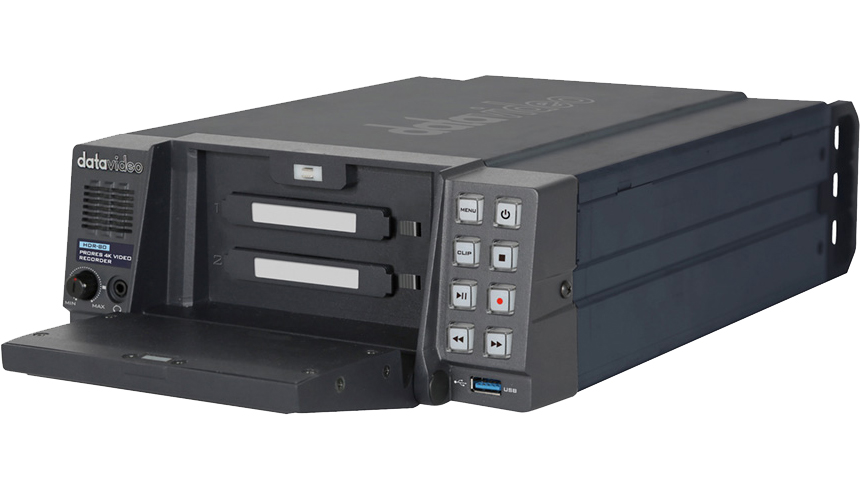

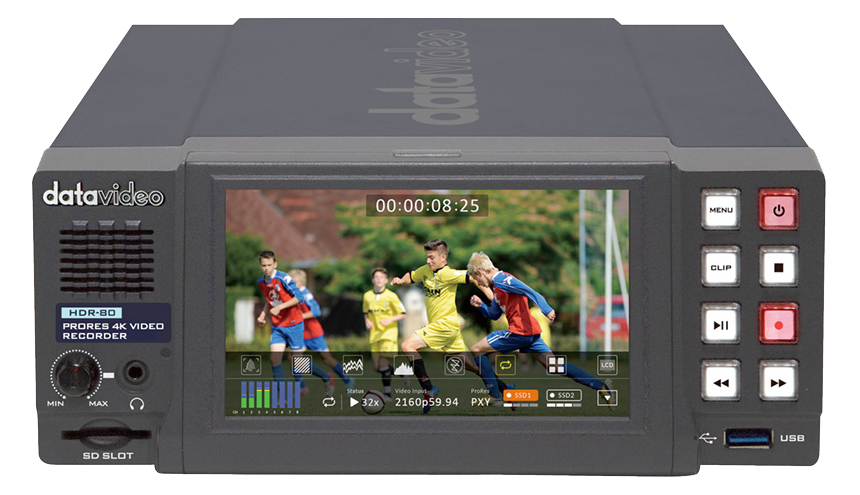

Datavideo HDR-80 is a ProRes 4K recorders that record video on two SSD hard drives. It is a desk top model meant to be used on a table top. The recorder has a high resolution 5” LCD touch screen on the front for video monitoring, device settings and configuration.

HDR-80 is able to record video in resolutions up to 2160p 60 using the available SDI and HDMI interfaces at the back. SDI is available in bitrates all the way from HD up to 12G-SDI while HDMI connections support both HDMI 2.0 and 1.4 technology. With multiple HDMI and SDI inputs you can also record up to four 1080p sources at the same time.

Dual SSD drives ensure sufficient storage for long duration recording. As one disk fills up, the recording automatically continue on the next disk. It’s easy to expand video storage by swapping a single disk.

Features

• 4K ProRes video recorder | 4 channel HD recorder and switcher
• 5-inch LCD touch screen for operation and monitoring live recording status
• 3G/HD/SD-SDI and HDMI input and output with audio embedding
• Multiple ProRes video compression techniques for recording (ProRes 422 Proxy, ProRes 422 LT, ProRes 422, ProRes 422 HQ) with superior 10-bit 4:2:2 image quality
• Dual 2.5" SSD storage so there is always more than enough for long hour recording
• Video input: 4 x 3G-SDI, 2 x HDMI | 1 x 12G-SDI
• Video output: 4 x 3G-SDI, 3 x HDMI
• Multiview output: HDMI
• Audio input: 2 x XLR Analogue
•  Audio output: 2 x XLR Analogue
• Control interface includes DVIP (Ethernet), GPI and RS-232, which are adaptable in all environments
• Provides time code as well as black burst and tri-level sync signals
• Close caption function allowing the subtitle to be saved separately as meta data in .mov file format

In the box

• 1 x HDR-80 Main Unit
• 1 x Adaptor + AC Cord
• 2 x 2.5” Removable HDD/SSD Enclosure
• 8 x Screws for 2.5 Removable HDD/SSD Enclosure
• 2 x Blank Label
• 1 x SATA to USB Cable
