Datavideo PTC-140 PTZ Camera HDMI/SDI
Free shipping
PLN 4,926.15*
net: PLN 4,005.00
Free shipping
Available, delivery time: 1-3 days
Our availability in the Christmas in-between period: we will be closed from 23.12.2024. All orders placed during this period will be accepted, but shipped after 06.01.2025. We wish you a Merry Christmas and a Happy New Year.
Product number:
SW23941
Manufacturer:
Datavideo
EAN:
672255008256
Manufacturer product number:
PTC-140
Delivery time:
1-3 days
Datavideo PTC-140
The PTC-140 series is a cost-effective SDI/HDMI PTZ camera, which features 1/2.8 inch CMOS sensor, 1920x1080px Full HD resolution 20x optical zoom, 10x digital zoom gives you sharp images no matter where you mount the camera. The PTC-140's onboard streaming encoder can encode up to 2 simultaneous streams to any cloud service, including Datavideo's dvCloud. It supports H.264 /H.265 video compression and dual stream output. Advanced 2D/3D noise reduction allows you to create high quality images even in low light conditions. The PTC-140 series comes in various models for different settings. Available variants:
- Datavideo PTC-140 - HD PTZ Camera
- Datavideo PTC-140 NDI - NDI|HX PTZ Camera
- Datavideo PTC-140T - HDBaseT PTZ Camera
The PTC-140 is a low-cost SDI/HDMI PTZ camera, which features 20x optical zoom, 10 digital zoom. The PTC-140 is an IP camera as well, supporting H.264/H.265 video compression and dual stream output.
PTC-140 NDI features NDI® | HX, which is the first NDI camera launched by Datavideo, and supports simultaneous NDI® | HX, 3G-SDI, HDMI up to 1080P60 hardware output. Datavideo PTC-140 works with HDBaseT Technology, which allows you to shoot 1080p video, tally, power, and remote by using only one ethernet cable without a need for IP connection.

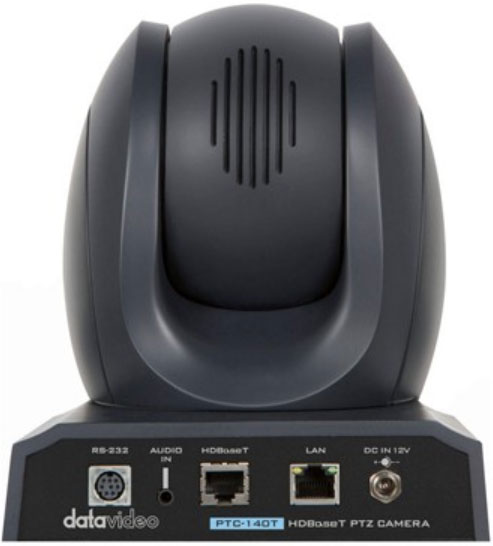

The PTC-140T is a cost-effective HDBaseT PTZ camera featuring PoE, a built-in streaming encoder, and 20x optical zoom. All signals, power and control data travel through a single CAT6 (“network cable”) and can reach a distance up to 100 meters. The PTC-140T's on-board streaming encoder can encode up to 2 simultaneous streams to any cloud service, including Datavideo’s own DVS-200. The PTC-140T is compatible with HDBaseT portable studios such as the HS-1500T and HS-1600T and controllers like the RMC-300 and RMC-180.
Details of the manufacturer
- Datavideo Technologies Co. Ltd – Taiwan
- 10F. No. 176, Jian 1st Road Zhonghe Dist. New Taipei City 235, Taiwan
+886-2-8227-2888
Details of the person responsible for putting the product on the European market
- ComLine GmbH Value Added Distribution
- Richard Gäbel
- Lise-Meitner-Straße 16
- 24941 Flensburg, Germany
+49 461 77303-300
Related links of the manufacturer
Accessory Items
Free shipping
Marshall CV730-BK / CV730-WH 30X UHD60 PTZ Camera
PLN 15,325.80*
net: PLN 12,460.00
Marshall CV730
Marshall CV730 features a 30x optical zoom block and flexible 12GSDI/HDMI/IP simultaneous outputs with crystal clear UHD images up to 3840x2160p at 60fps. Remote adjust and match settings include Iris, Zoom, Pan/Tilt, White Balance, Exposure, Pedestal, and many more over long distances or during setup with capable Auto settings that track environmental fluctuations.
Featuring 12GSDI, HDMI2.0, and IP simultaneous outputs from a professional level 8.5MP 1/1.8" UHD sensor and smooth synchronous movements. CV730 delivers crystal-clear UHD images up to 3840x2160p at 60fps and remote broadcast-style adjust & match setting control through RS232, RS422 or IP using universal protocols
Constructed with a precision 30x optical zoom range starting at just under 65° horizontal angle-of-view at 6.5mm all the way out to 202mm which captures a crystal clear head & shoulder shot at very long distances.
Features
8.5 Megapixel UHD Sensor (1/1.8")30x Optical zoom (6.5mm~202mm) starting at 65° H.AOV340° panning and 120°tilt range12G/6G/3G-SDI, HDMI2.0 and IP (HEVC/H265) simultaneous outputs3840 x 2160p (UHD) up to 60fps, 1080/720p (HD) up to 60fps59.94, 50, 29.97, 25 frames per second options3.5mm TRS Stereo Audio over I/O cable (Mic/Line)12V Power cable included (30W max)
Free shipping
RGBLink VUE PTZ Camera 12x Optical Zoom
PLN 3,995.66*
net: PLN 3,248.50
RGBLink VUE PTZ Camera 12x Optical Zoom
SKU: RGB12X-POE-TLY
The RGBlink VUE PTZ Camera 12x Optical Zoom is a professional broadcast PTZ camera in a sleek black design with a tally LED light on top. With its fast, silent rotation and zoom function, it is ideal for smaller productions, live events or in the education sector. Video output is via HDMI, 3G-SDI, USB 2.0 or IP streaming via network at up to 1080p60. Even in low-light conditions, it delivers top-notch image quality with rich colors thanks to dynamic noise reduction. The lens' high zoom factor and intelligent, fast autofocus allow for sharp distance shots.
The camera has one HDMI, 3G-SDI, USB and network port each, simultaneously outputting video signals at a maximum of 1080p60. Connected to a PC via USB, the camera is recognized as a UVC webcam without driver installation. It can be immediately integrated into OBS-Studio for streaming or into Zoom, MS-Teams or similar for video conferencing. The video signal can be output at 720p or 1080p with the frames common in broadcast. Optionally, date, time and the individual camera name can be displayed in the image. Audio signals from a microphone or line-in device are embedded in the HDMI, SDI or network stream via the 3.5 mm stereo jack. Power is supplied to the camera via the included AC adapter, or alternatively via LAN thanks to the PoE function if Power over Ethernet is supported by the router.
Features
High image quality with dynamic noise reduction in low light conditionsHigh-speed optical zoomFull HD resolution with up to 60 frames/sec simultaneously on all video outputsEmbedded audio in HDMI, SDI and network streamsH.264/H.265 dual streaming with all relevant network protocolsTally LED light on topOSD menu with manual IP entry/DHCP activation via remote controlAdministration via web browserPTZ camera control via VISCA or Pelco protocolsPower supply via PoEPower saving sleep function with parking position of lens vertically downwards1/4" tripod thread on the bottom sideSuitable for wall or ceiling mounting (accessories not included)
Free shipping
Datavideo PTC-280 12x 4K PTZ Camera
PLN 8,757.60*
net: PLN 7,120.00
Datavideo PTC-280
Datavideo is introducing the 4K50/60p PTZ camera lineup which includes the PTC-280 Professional PTZ Camera that can be easily controlled via traditional RS-422 serial port or IP remote control via DVIP (Datavideo proprietary protocol) or Sony VISCA over IP. This brand new 4K camera series supports dual streaming output for A/V market applications, so you can easily stream to Facebook (RTMPS), YouTube simultaneously. It also works well with dvCloud.
PTZ View Assist: Control up to four cameras
The camera control app is tailored for the Datavideo PTZ camera series. It can monitor the live streaming video from PTC-140, and PTC-280 series. The app can control up to 4 cameras simultaneously via DVIP, you can intuitively set up and recall the presets, and adjust white balance, focus and IRIS.
The app is able to decode the live streaming via RTSP, SRT, and NDI. Easily monitor the live streaming video and set up the parameters promptly in one application. Datavideo provides iOS and Android versions, which you can download on Google Play and App Store for free!
Compatible with Various Controller
Control real-time pan, tilt, and zoom camera movements with Datavideo PTZ View Assist APP, RMC-300A and RMC-180. With configurable preset positions supported.
Free shipping
Datavideo PTC-285T 4K HDBaseT Tracking PTZ Camera
PLN 13,683.75*
net: PLN 11,125.00
Datavideo PTC-285T
Datavideo is introducing the 4K50/60p auto tracking PTZ camera, Datavideo PTC-285T can be easily controlled via traditional RS-422 serial port, or IP remote control via DVIP or Sony VISCA over IP. This brand new 4K camera series supports dual streaming output for A/V market application. You can easily stream to Facebook (RTMPS), YouTube and dvCloud.
This HDBaseT version allows single CAT-6 cable to transfer video, control, power, and tally.
One Cable Solution
HDBaseT allows you to transmit power, HD video, control, and tally over a single Ethernet cable.
Quick Access to Camera's Auto Tracking
You will be allowed direct access to auto tracking via various external controllers such as the supplied RMC-1 remote control and DVIP controllers (RMC-300A, RMC-180 MARK II and PTC View Assist).
In addition to camera controllers, you can also easily enable auto tracking on smart switchers which include KMU-200, SHOWCAST 100, etc as well as complete solution systems like ZR-1 Smart Classroom.
Custom Auto TrackingIf you are filming multiple people, you can designate a person for auto tracking. Once linked to the camera, only the designated person will be tracked, avoiding interferences such as the desks, people coming back and forth, large objects, etc.Smart PTZ Speed AdaptationThe integrated PID algorithm is able to detect the movement speed of the identified object and automatically adjust the camera's corresponding pan, tilt and zoom speeds in such a way that the lens movement will be smooth, avoiding common camera lens movement problems like jerky movements or unpredicted halts.
Features
4K Auto Tracking PTZ Camera with HDBaseTOne Cable SolutionRMC-1 IR remote controller includedLow Noise in Low LightTally LightSupports H.264/H.265 Video CompressionAvailable in dark gray or white to remain inconspicuous in permanent setups
In the box
1x PTC-285T1x RMC-1 IR remote controller1x Ceiling mount bracket-A1x Ceiling mount bracket -B6x Ceiling mount bracket screw M3*4mm1x DC 12V Power Adaptor1x A tightrope
Free shipping
Datavideo BC-50 IP Block Camera
PLN 4,378.80*
net: PLN 3,560.00
Datavideo BC-50
Datavideo BC-50 is a cost-effective block camera with 20x optical and 16x digital zoom. Support PoE Technology. The video output is 3G/HD-SDI, it also supports VISCA/Pelco-D/Pelco-C protocols for control via RS-485.
The BC-50 can encode into H.265, H.264 and MJPEG, it fully supports RTSP and RTMP protocols making it easy to stream to popular platforms such as Youtube, Facebook Live as well as hardware and software decoders. The BC-50 Block Camera is a small HD camera with sturdy and durable metal case can be used in different types of environments.
Features
Full HD Block Camera1080P Full HD resolution20x optical zoom with a maximum aperture of F1.8. The camera gain setting of 0.05 LUX is sufficient for video production with a smooth PTZ controlSupport PoE Technology for remote powerH.264/H.265/Motion-JPEG compression through RJ-45 connectionStream to popular platforms such as Youtube & Facebook live.Regular 3G SDI output for uncompressed video up to 1080PControllable by VISCE/Pelco-C/Pelco-DTally lights for broadcast level applicationsThe camera is only 6.4 inch long facilitating setup in all environments.Cold shoe mount for connecting an external LED light or monitor
Specifications
Video format: 1080p 60/50/30/25 | 1080i 60/50 | 720p 60/50Image Sensor: 1/2.7" progressive scan CMOS sensorEffective Pixels (approx.): 2.07 Mega pixelsMin. Illumination: 0.05 Lux @ (F1.8, AGC ON)Electronic Shutter: 1/30s ~ 1/10000sZoom Ratio: 20x Optical zoom ; 16x Digital zoomGamma Control: YesIris Control: Auto / ManualDigital Noise Reductions: 2D & 3DOn-Screen Display (OSD): English, Simplified Chinese, Traditional ChineseWhite Balance: Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, ManualAGC / Gain Control: Auto / Manual (0 to 28 step) | Max. Gain Limit (6 to 28 step)Mirror / Flip Image: YesFocus Mode: Auto / ManualPanning/Tilting Range: N/APanning/Tilting Speed: N/APreset: N/AField of View: (Horizontal, Wide) Approx. 63.7° (WIDE END) / 2.3° (TELE END)Image Compensation: Day & Night FunctionVideo Output: 3G/HD-SDI x1Tally LED: Dual colour (Red, Green)Filter: M52.0 x 0.75 Thread with UV ProtectionProtocol: VISCA, Pelco-D, Pelco-CRemote Control Interface & Transmit Distance: RS-485: Transmit up to 1000mF/W Update: EthernetIR Control: N/ASize of Screw Hole for Tripod: Use hot shoe mount
Free shipping
Marshall CV730-NDI 30X UHD30 PTZ Camera with NDI|HX
PLN 16,694.18*
net: PLN 13,572.50
Marshall CV730-NDI / CV730-NDIW
Marshall CV730-NDI features a 30x optical zoom block and flexible simultaneous 12GSDI and HDMI outputs with NDI®|HX and crystal clear UHD images up to 3840x2160p at 60fps. NDI®|HX provides low latency, high quality, frame-accurate video, and audio in real time to IP workflows. NDI® Tools opens the ability to integrate more video devices and applications into your production workflow. CV730-NDI is the first UHD60 PTZ camera with NDI®|HX.
Best of Class
Featuring 12GSDI, HDMI2.0, and NDI®|HX from a professional level 8.5MP 1/1.8" UHD sensor and smooth synchronous movements. CV730-NDI is the first to deliver UHD60 performance with NDI®|HX ease-of-use delivering crystal-clear images up to 3840x2160p at 60fps. NDI®|HX provides Video, Audio, Control, Tally and Power over one Ethernet cable for remote broadcast-style adjust & match settings control.
Flexible Zoom Range
Constructed with a precision 30x optical zoom range starting at just under 65° horizontal angle-of-view at 6.5mm all the way out to 202mm which captures a crystal clear head & shoulder shot at very long distances.
Ease of Use
Install one-cable to camera with NDI®|HX for all functions, simple connect to any Ethernet port - THAT'S IT - or use Ethernet for PoE+/Preview and other outputs (12GSDI/HDMI) for simultaneous workflows for streaming, production, or archiving.
Professional Broadcast Performance
Marshall Camera Division continues to develop cutting edge camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners. CV730-NDI constitutes the World's first NDI®|HX PTZ camera with Ultra-HD video quality at 60fps.
In the box
8.5 Megapixel UHD Sensor (1/1.8")30x Optical zoom (6.5mm~202mm) starting at 65° H.AOV340° panning and 120°tilt range opens range of motion12G/6G/3G-SDI, HDMI2.0 and NDI®|HX simultaneous3840 x 2160p (UHD) up to 60fps, 1080/720p (HD) up to 60fps59.94, 50, 29.97, 25 frames per second options3.5mm TRS Stereo Audio over I/O cable (Mic/Line)12V Power cable included (30W max)
Free shipping
RGBlink 4K PTZ Camera 12X Optical Zoom
PLN 6,568.20*
net: PLN 5,340.00
RGBlink 4K PTZ Camera 12X Optical Zoom
SKU: RG4KPTZ12X
4K Ultra HD Image, with resolution up to 4K@60fps12x optical zoom lens, with 80.4° FOV without distortionFast, accurate and stable auto focusLow Noise and High SNR4K output through LAN, HDMI and USB 3.0Multiple Audio/Video Compression StandardMultiple Control port and control protocolMultiple Network Protocol include RTMP,RTP,VISCA
Technical data
ConnectorsVideo(Output)HDMI: 1×HDMI-AUSB3.0: 1×USB-BLAN: 1×RJ45Audio Input1×3.5mm Stereo Jack (audio embedded only in net-stream)CommunicationRS232 In/Out 2×DIN 8RS422 (RS485) 1×4Pin TerminalPerformance CameraOptical Zoom: 12XFocus: f=3.85 mm～ 43.06 mm ±5%View Angle Horizontal: 7.59°(tele)～80.4°(wide)Tilt:4.6°(tele)～50.0°(wide)Effective Pixels: 8.51m,16:9Aperture: F1.8 ～ F3.56±5%Minimum Illumination: 0.05 lux (F1.8, AGC ON)DNR: 2D & 3D DNRWhite Balance: Auto/Manual/One Push/Specified color temperatureFocus Mode: Auto/Manual/One PushExplosure Mode: Auto/Manual/Shutter Priority/Iris Priority/Whiteness PriorityShutter Speed: 1/25～1/10000Dynamic range: OFF/Dynamic level adjustmentBLC: ON/OFFVideo Adjustment: Brightness/Color/Saturation/Contrast/Sharpness/B/W mode/Gamma curveSNR: ≥50dBPan-and-Tilt ParameterPan/Tilt Rotation: -110°～+110°/-30°- +30°Pan/Tilt Control Speed: 0.1～100°/S ; 0.1～70°/SPreset Speed/Numbers: Pan:100°/S, Tilt:70°/S; Up to 255 preset positions (10 remote control)Audio CompressionFormat: AAC,MP3,G.711AVideo CompressionFormat: LAN:H.264, H.265 USB3.0: MGPG, H.264, YUY2, NV12Output ResolutionsHDMI:SMPTE: 720p@50/60 | 1080i@50/60 | 1080p@25/30/50/60 | 2160p@25/30/50/60
USB 3.0:YUY2/NV:12 320×176@25/30 | 640×360@25/30 | 640×480@25/30 | 960 ×540@25/30 | 1280×720@25/30 | 1920×1080@25/30MJPEG/H.264/H.265: 320×176@25/30 | 640×360@25/30 | 640×480@25/30 | 960 ×540@25/30 | 1280×720@25/30 | 1920×1080@25/30 | 3840×2160@25/30Control ProtocolVISCA | Pelco-D | Pelco-PBaud Rate(bps)115200 | 9600 | 4800 | 2400bpsNetwork ProtocolRTSP | RTMP | ONVIF | GB/T28181 | NDI | VISCAPowerInput Voltage: DC12VMax Power: 12W
EnvironmentTemperature: -10℃～50℃Humidity: 20%～80%
PhysicalWeight: 1.7kgDimension: 220mm×144mm×159mm
Free shipping
DataVideo PTC-285 4K Tracking PTZ Camera
PLN 10,399.65*
net: PLN 8,455.00
DataVideo PTC-285
Datavideo is introducing the 4K50/60p auto tracking PTZ camera, DataVideo PTC-285 can be easily controlled via traditional RS-422 serial port, or IP remote control via DVIP (Datavideo proprietary protocol) or Sony VISCA over IP. This brand new 4K camera series supports dual streaming output for A/V market application. You can easily stream to Facebook (RTMPS), YouTube and dvCloud.
Datavideo also provides extended models such as PTC-285T 4K HDBaseT and NDI to meet the needs of different workflows.
Features
Low Noise in Low LightAdvanced 3D noise reduction technology is also used to further reduce the noise while ensuring image sharpnessMultiple Simultaneous Video OutputsSupports simultaneous HDMI 2.0 and IP output up to 2160p 50/60 and also 3G-SDI output up to 1080p60/50Multiple Network Protocol with Dual Stream FunctionSupport RTSP and RTMPS protocols, easy to stream directly to two different CDN platforms and Datavideo dvCloud as wellCompatible with Various ControllerControl real-time pan, tilt, and zoom camera movements with Datavideo PTZ View Assist APP, RMC-300A and RMC-180. With configurable preset positions supportedRS-422, DVIP and Ethernet Camera ControlRS-422 and ethernet to use DVIP or VISCA over IP commands to integrate with larger control systemsPower over EthernetThe PTC-285 supports PoE for easy installation. No need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply run a single CAT6 cable to power your PTC-285Tally LightGreen and red lights tally to show the preview and program status for broadcast applicationsWide 80° Field of ViewPTC-285 provides a wide Field of View of 80°, easily shooting all the scenes in the fieldSupports H.264/H.265 Video CompressionSupport compression of resolution up to 3840x2160 with frame up to 59.94, 60fps and the second channel 720x480 with 29.97fps compression. AAC, MP3 and PCM audio compression also supportedDark or Light BodyThe PTC-285 is available in dark gray or white to remain inconspicuous in permanent setups
In the box
1 x PTC-285 product 1 x RMC-1 IR remote controller 1 x Ceiling mount bracket-A 1 x Ceiling mount bracket -B 6 x Ceiling mount bracket screw M3*4mm 1 x DC 12V Power Adaptor 1 x A tightrope
