DataVideo PTR-10T Mark II HDBaseT Robotic Pan Tilt Head

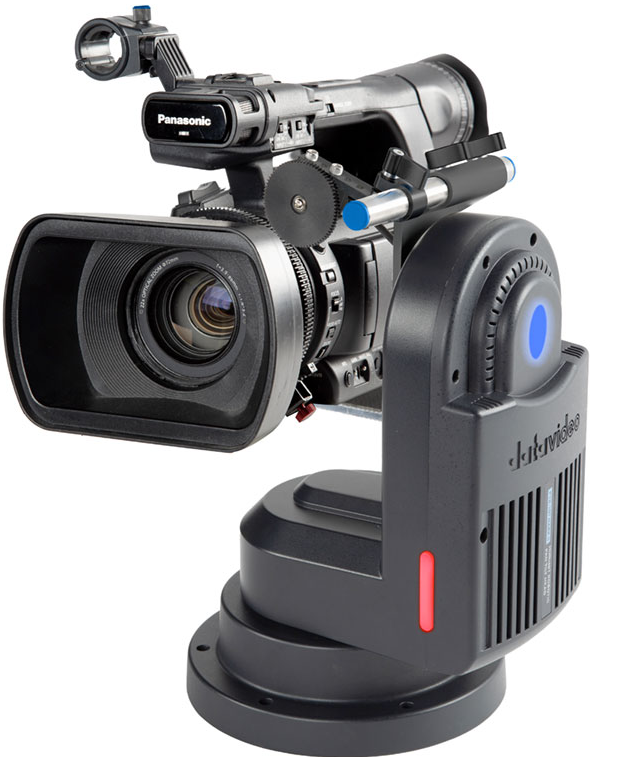

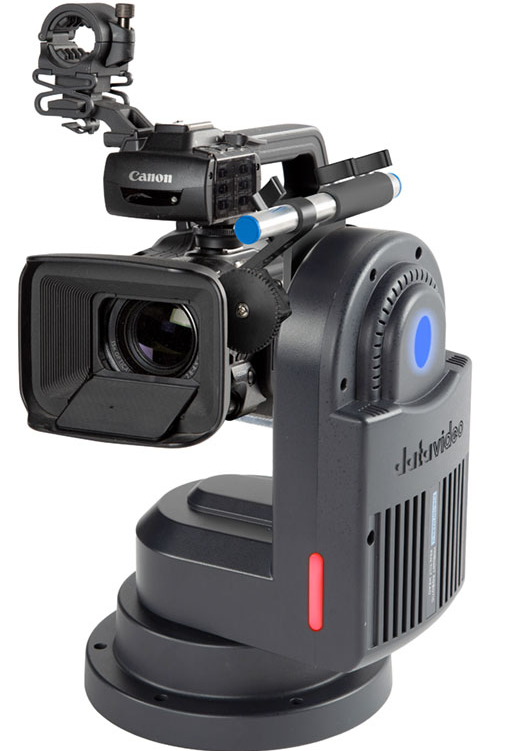

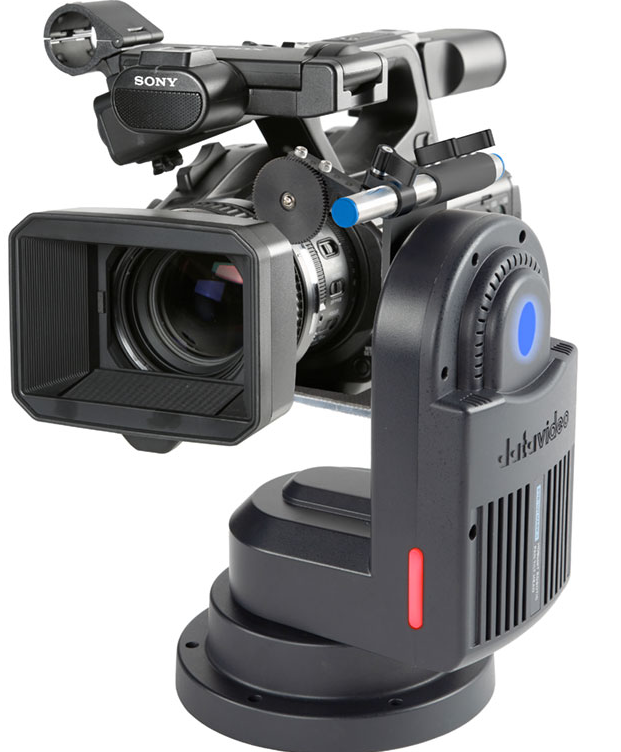

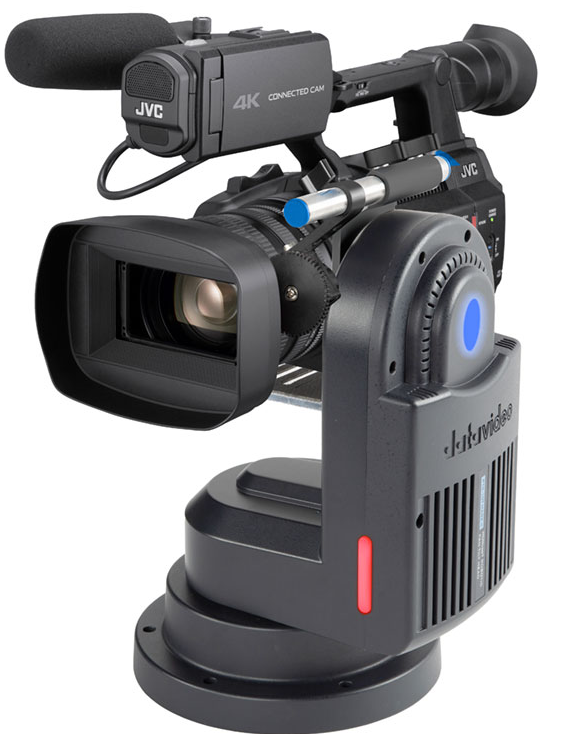

Datavideo’s brand-new PTR-10T MARK II is a Robotic Pan-Tilt Head that is designed to turn any small size Video Camera or Block Cameras into a Robotic Camera. A sleek design fits seamlessly in your studio. With its weight of 3.4 Kg, it can be placed on any heavy-duty tripod or mounted on the wall and ceiling which brings up a lot of flexibility for your video production.
The PTR-10TMKII can be controlled by the included IR controller, VISCA protocol controller, Datavideo RMC-180 Camera controller, RMC-300A Universal Remote-Control Panel, HS-1600T series and compatible with HDBaseT over Ethernet and other integration solutions such as Crestron.
Technical data

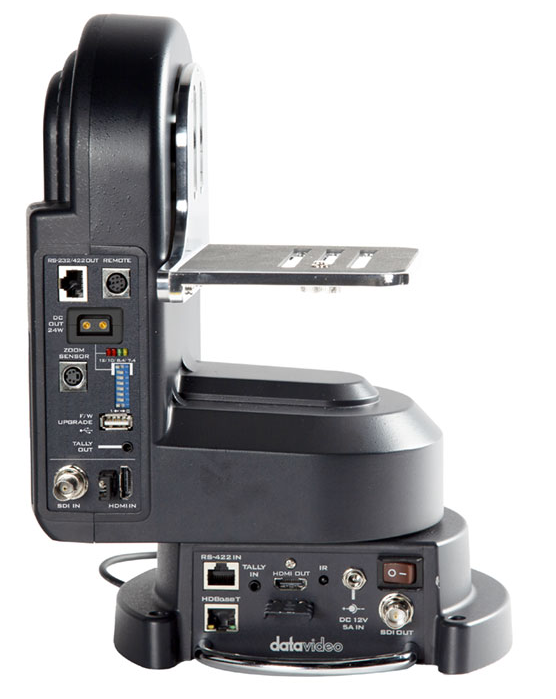

- Video Interface: HDMI x 1 / SDI x 1 / RJ45 x 1 (HDBaseT)
- Video Output: 2160p 29.97/25, 1080p 59.94/50, 1080i 59.94/50, 720p 59.94/50
- Control Unit: RMC-180, HS-1600T, HS-1600T Mark II, RMC-300A
- VISCA Protocol Controller: IP Control / IR remote
- Panning / Tilting Range: Pan: 340° / Tilt: ±45°
- Panning / Tilting Speed: Pan: 0.12~15° /Sec / Tilt: 0.06~10° /Sec
- Preset: Pan/Tilt position 50
- Control Distance: 1,200M by RS422 / 100M by HDBaseT / Control Protocal / Sony VISCA / DVIP
- Control Input: RS-422 / HDBaseT Maximum Load: 4 KG Max
- Control Output: RS-232 / RS-422 / BX-Lens / LanC
- Power Requirement: DC 12V~ 18V, 3A (Without Camera) / DC 12V~ 18V, 5A (With Camera)
- Power Supply: DC 12/10/8.4/7.4V, 24W Max
- Operating Temp. Range: 0~40 C°
- Operating Humidity Range: 10~80%
- Storage Temp. Range: -10~60C°
- Storage Humidity Range: 5~80%
- Weight: 3.4 KG
- Dimension (LxWxH): 230 x 190 x 300 mm
In the box
- 1 x PTR-10T Mark II Main Unit
- 1 x DC 12V power adaptor
- 1 x AC cord
- 1 x IR remote control
- 1 x DC with lock to D-Tap cable
- 1 x HDMI cable
- 1 x SDI cable
- 1 x Remote cable (2.5mm phone-jack to mini-din 8pin)
- 2 x 1/4” screw
- 1 x 1/4” to 3/8” screw adaptor
