Datavideo TLM-102 Dual 10" Full HD desktop monitor

Datavideo TLM-102 Dual 10" Monitor

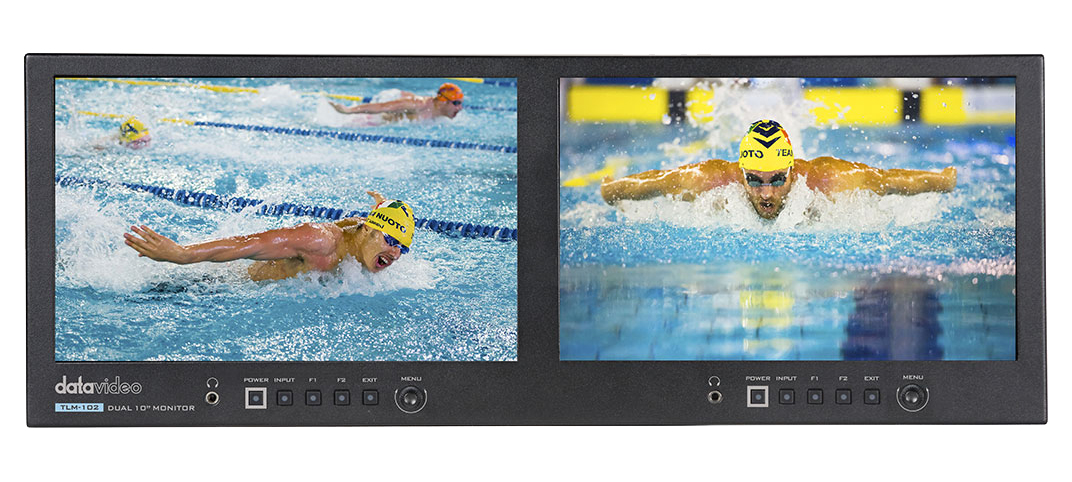

The Datavideo TLM-102 Dual 10” monitor is a 4RU Rack mount dual monitor which is designed for the broadcast quality monitoring application. Datavideo TLM-102’s 4RU rack design, SDI and HDMI inputs and outputs and different mounting methods make it the best solution for various applications such as live vans, on-site monitoring and video wall.

The Datavideo TLM-102 Dual 10” monitor brings high quality and user friendly viewing experience for users via its excellent display quality and advanced auxiliary functions. Please see following chapters for more details about the TLM-102 Dual 10” monitor.

TLM-102 provides a 90-degree angle adjustment design, so you can install it on a rack or place it on a desk. The thoughtful angle design allows you to freely adjust the most appropriate viewing angle when monitoring, making work very easy and convenient.

Technical data

• Screen: Dual 10.1" LCD
• Chassis: 4RU Rack Mount
• Resolution: 1280x800

Viewing Angle

• (H) +85/-85°
• (V) +85/-85°

Luminance/Contrast

• 300cd/m²
• 800:1

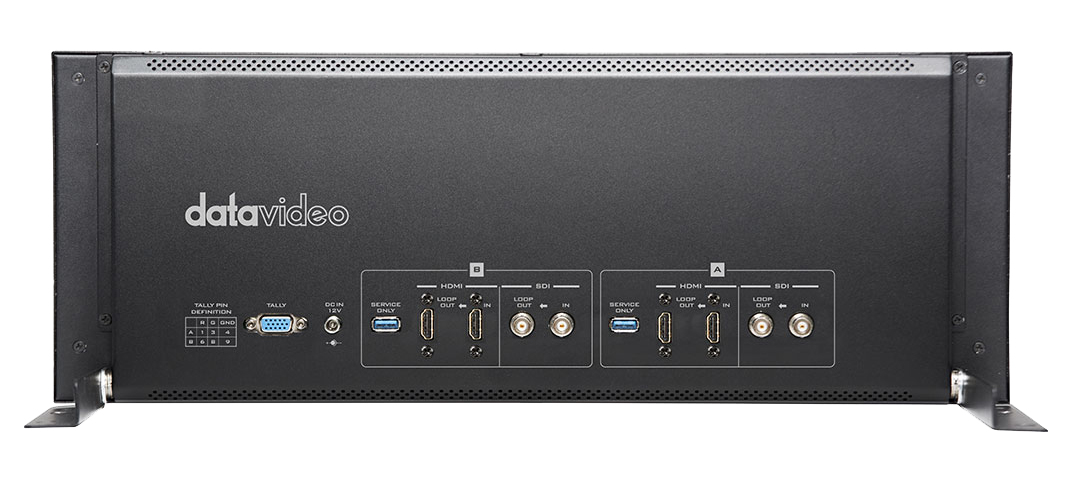

Video Inputs

• 2x 3G/HD/SD-SDI
• 2x HDMI

Loop Through

• 2x 3G/HD/SD-SDI
• 2x HDMI

• Aspect Ratio: 16:9, 4:3
• Aspect Marker: YES
• Safty Marker: YES

Tally LED

• Live (Red)
• Cued (Green)

Audio In/Out

• Embedded Audio on SDI and HDMI
• Headphone Jack

• Special Features: time code, waveform, vector scope & audio level meter , peaking, zoom, pix to pix, underscan, SDI, HDMI cross conversion
• Dimension (WxHxD): 482 x 178 x 38 mm
• Weight: 3.6 kg
• Operating Temp. Range: 0~40 °C
• Power: DC 12V, 28W

Supported Input Resolutions

• 1080p(23.98/24/25/29.97/30/50/59.94/60Hz)
• 1080i(50/59.94/60Hz)
• 720p(23.98/24/25/29.97/30/50/59.94/60Hz)
• 480i(NTSC), 576i(PAL)

In the Box

• 1 x TLM-102 product
• 1 x AD Switch DC 12V with AC Cord
• 1 x Tally Convertor
• 2 x Screw φ3.0*6m/m
• 4 x Screw M5 x 10mm
