adicam MAX 003-09
Product number:
SW25059M.2
Manufacturer:
AdiCam
EAN:
5904194860059
Manufacturer product number:
003-09
Delivery time:
1-3 days

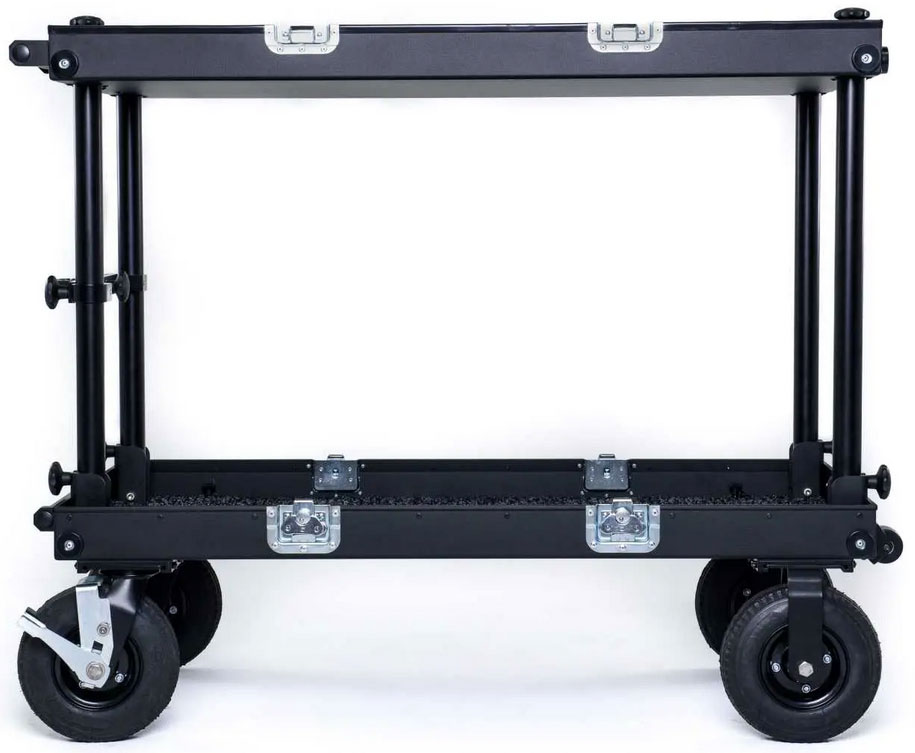

adicam MAX
The biggest and the strongest film cart in our offer, created to meet even greater demands. Reinforced model MAX can lift up to 250 kilograms of heavy equipment on your set! Built-in mounting together with the crossbar between the legs provides even greater stability and the ability to mount a 35mm tube / tripod without removing the top cover.
- Fully customizable with all our accessories
- Four hand-folded pneumatic wheels (9″- fi225 mm) which are equipped with sealed bearing and standard foot brake system
- The two additional wheels make it easier to transport the cart when it is folded
- Each deck has been covered with facing to prevent the equipment displacing
- Assembly and disassembly takes only 2 minutes, no tools are needed and the entire cart as well as its individual parts can be folded into an easy to transport case
Details of the manufacturer
- Adi Trade Adrian Wyszyński
- ul. Gdyńska 61A
- 05-200 Wołomin, Poland, EU
+48 536 267 126
Warnings and safety information
