DZOFILM Pictor Zoom 14-30mm T2.8

DZOFILM Pictor Zoom 14-30

SKU: DZO-7220003B

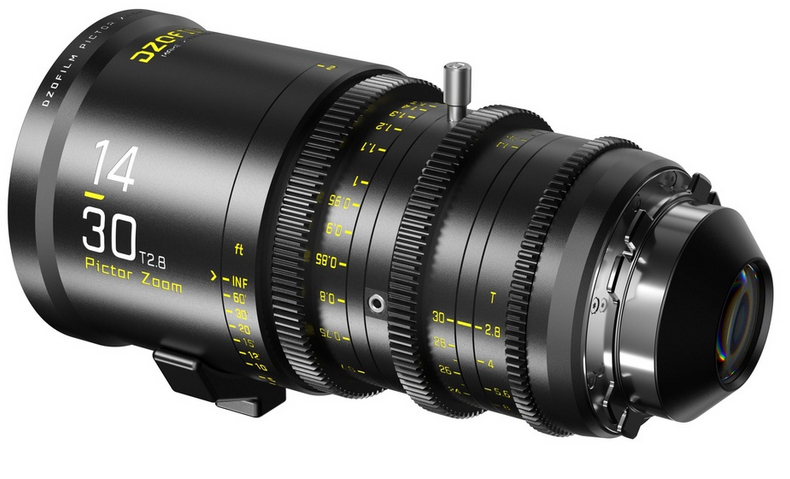

DZOFILM Pictor 14-30mm T2.8, the latest Super 35 wide-angle lens

The Pictor 14-30mm T2.8 Super35 Parfocal Zoom Lens features a relatively fast maximum aperture of T2.8 with an aperture range of T2.8 to T22, and it adds an extreme wide-angle zoom to the Pictor line of lenses. As you would expect from a cinema-style zoom, the lens is parfocal, meaning it holds focus throughout the zoom range. The internal focus design with floating elements virtually eliminates focus breathing. It covers a Super35 image circle, comes standard with an interchangeable PL mount, and includes an EF mount.

The 16-blade iris creates round out-of-focus highlights, which have a more natural appearance and contribute to the lens's natural-looking bokeh. The lens features cine-style gear rings on the focus, iris, and zoom lens rings, making it compatible with cine-style lens accessories such as follow focus units, lens motors, and lens control systems. The 95mm outer front diameter allows you to use a variety of compatible third-party matte boxes, and the lens has an 86mm filter thread. A lens support foot allows you to support the lens on rods to help reduce strain on your camera's lens port.

Please Note: According to the manufacturer, when converted to EF mount this lens is not compatible with DSLR cameras that have an EF mount. However, it is compatible with mirrorless cameras that have an EF mount, including Blackmagic Design cameras.

Features

Maintains focus throughout the zoom range
Minimal focus breathing
16-blade iris produces round out-of-focus highlights
T2.8 to T22 aperture
Common Pictor 95mm front diameter
Compatible with standard cine-style lens accessories

Technical data

FOCAL LENGTH: 14-30MM
MOUNT: PL/EF
T - STOP: T2.8-22
Image Circle: φ31.5 mm（S35）
CLOSE FOCUS: 0.6m / 2ft
ZOOM Ratio: ≈2.14X
Flange Distance: PL=52mm / EF=44mm
Iris control: 61°
FOCUS control: 270°
ZOOM control: 100°
FRONT OUTER DIA.: φ95 mm/3.74”
FILTER SIZE: M86*0.75
Gear Pitch: 0.8M
LENGTH: 173mm (PL) 6.81” / 181mm (EF) 7.13”
Iris blades: 16
WEIGHT: ≈1880g
