Freefly Ember S5K (Active EF Mount, 4TB)

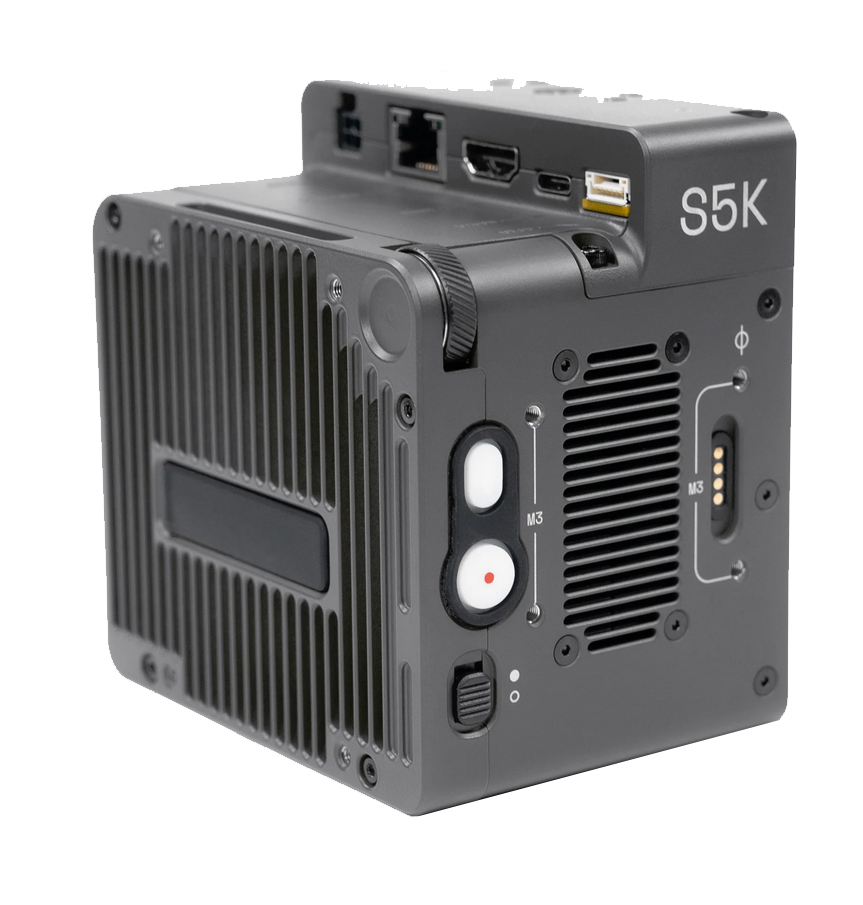

Freefly Ember S5K

Ember was designed to be the most efficient high speed camera ever. It’s small, light, and insanely fun to use. FREEFLY Ember is unique in that it can record continuous high speed footage with no ram based clip limit since it records directly to a 4TB internal SSD. Ember is as small and simple as possible and focus on an app based workflow. Its faster, easier, and much more powerful.

A magical new way to capture high speed imagery. All new Sensor, Chassis, and App designed to go from capture to share as quickly as possible. Ember is a 100mm cube, 800grams, and can shoot 4K 800fps, 5K 600fps. With Ember you simply press the record button, roll as long as you like, then share your best shots right from the app. Shooting high speed is now just like shooting anything else, push record to start and stop, and Ember captures everything to solid state memory - as simple... as that.

The Ember app for iOS means you can go from capture to sharing in seconds.

Features

• 5K max resolution at 600fps
• 4K 800fps
• Gpixel sensor
• Fast iOS based app workflow
• Apple ProRes Codec
• Global Shutter
• Wireless Control
• USB 3.2 Type C

Technical data

• S35 Gpixel Sensor =4K and 5K recording mode
• 10bit Apple ProRes Codec
• Active EF compatible lens mount or universal locking lens mount (tested lenses)
• Weight: With Active EF compatible lens mount: 830 g
• Dimensions: With Active EF compatible lens mount: 100 mm x 104 mm x 110 mm (WHD)

4TB Drive option

• Maximum shooting capacity for Ember
• Actual formatted data capacity - 3,980GB

Capture time (max)

• 5120 x 2880, 600fps - 36min (1,296,000 frames, 15hrs of playback at 24fps)
• 4096 x 2160, 800fps - 45min (2,160,000 frames, 25hrs of playback at 24fps)

2.56TB drive option

• High endurance drive rated for 80 Petabytes or 10,000 hours of continuous recording
• Ideal for heavy use of Ember Pre-Record
• Actual formatted data capacity - 2,534GB

Capture time (max)

• 5120 x 2880, 600fps - 23min (828,000 frames, 10hrs of playback at 24fps)
• 4096 x 2160, 800fps - 29min (1,392,000 frames, 16hrs of playback at 24fps)

In the box

All Ember S5K bodies ship with the following accessories

• 1 x Ember S5K camera body
• 1 x Rear accessory mount stand-offs (pair)
• 1 x USB C-C 3.0 Cable
• 1 x D-Tap-Ember Power Cable
• 8 x M3 x 10mm SHCS fasteners for accessory mounts

We offer two pre-installed internal SSD options

Ember S5K (Active EF Lens Mount, 4TB) - 950-00145

• 1 x Active EF compatible lens mount, pre-installed
• 1 x Internal 4TB SSD (pre-installed, user upgradable but not on-set swappable)

Ember S5K (Active EF Lens Mount, 2.56TB pSLC) - 950-00152

• 1 x Active EF compatible lens mount, pre-installed
• 1 x Internal 2.56TB pSLC SSD (pre-installed, user upgradable but not on-set swappable)
