HedBox HBP-NPF V-lock DV NP-F Battery Converter Power Adapter Plate
PLNÂ 246.31*
HedBox HBP-NPF

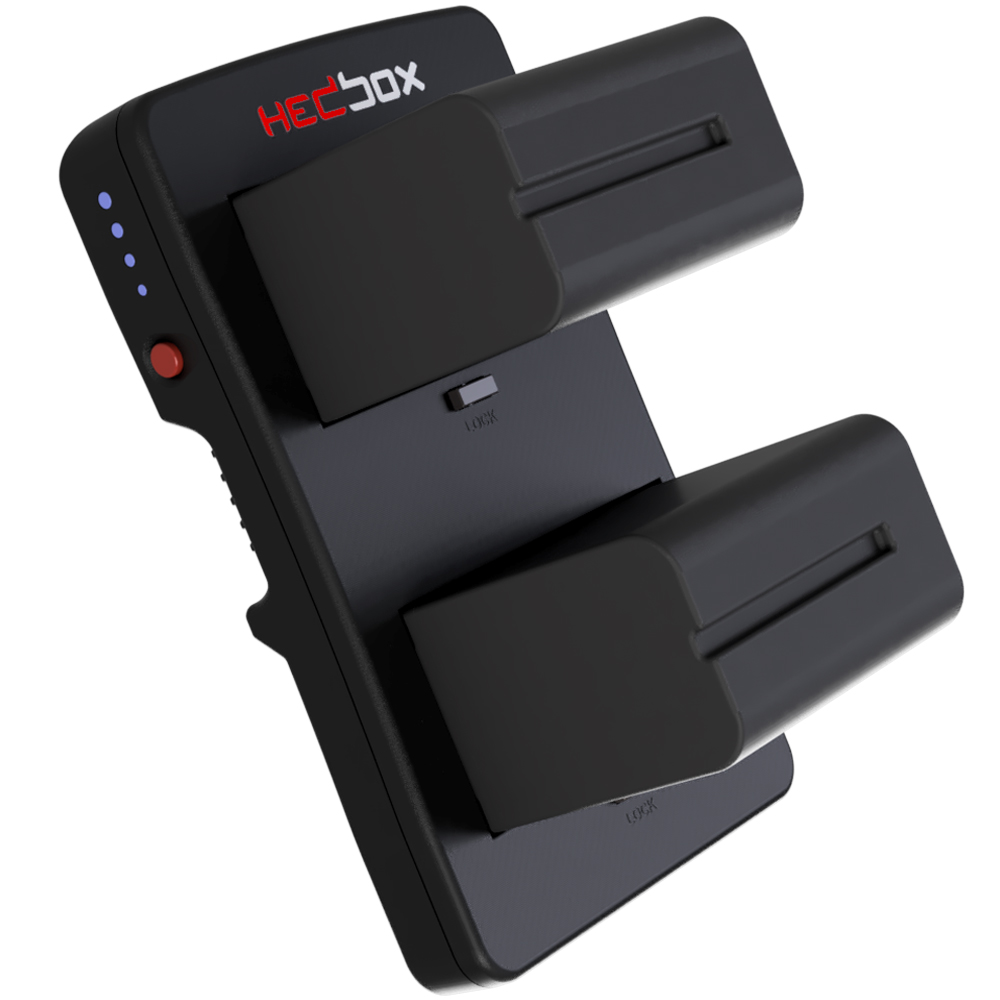

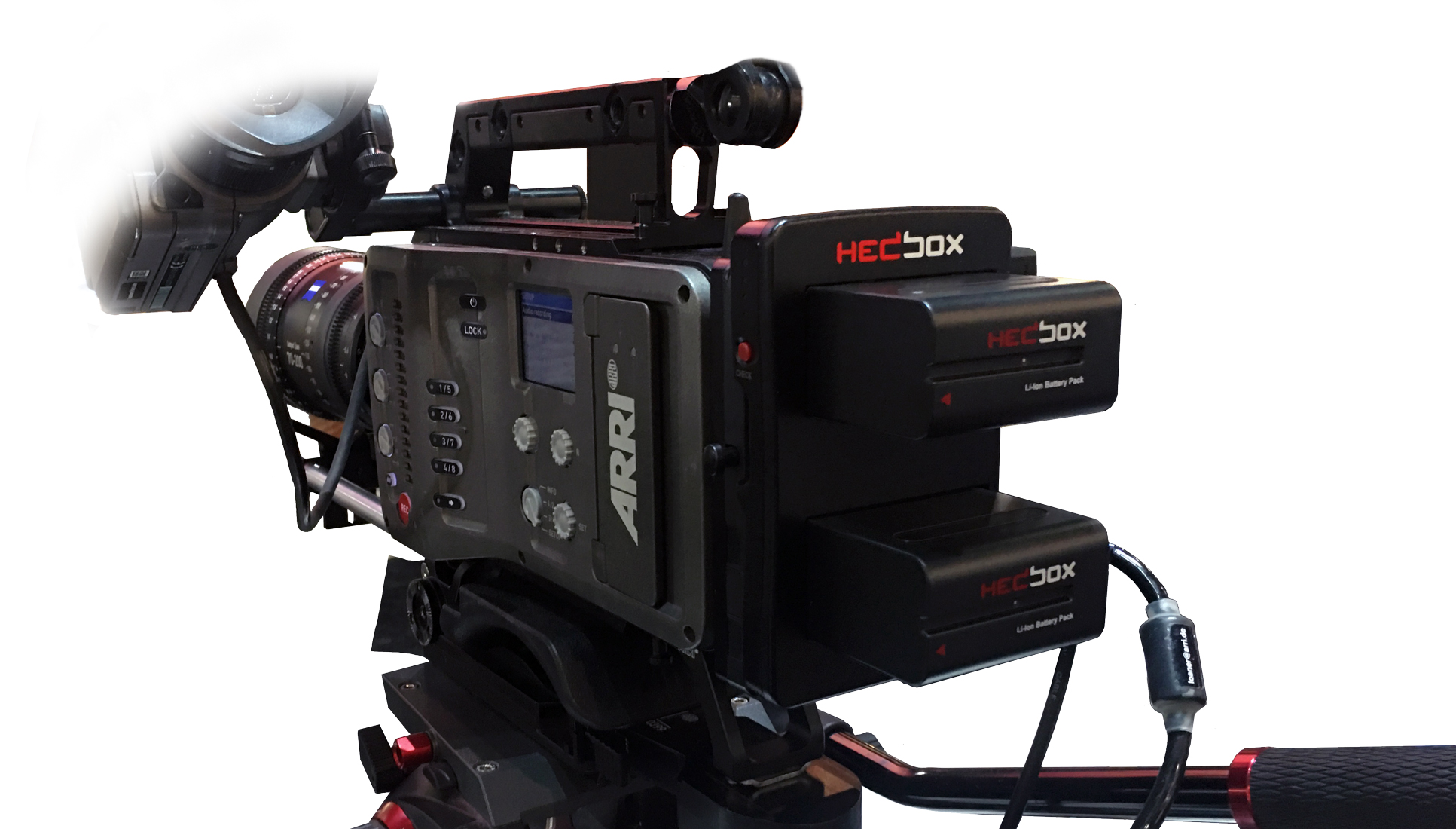

HedBox HBP-NPF allows you to power any V-Mount/V-Lock Professional Broadcast Camcorder, with standard two High Capacity L-series or NP-F Batteries, as long as the voltage is equivalent to 7.2V ~ 7.4V. The combined voltage of the two L-series or NP-F Batteries will be 14.4V ~ 14.8V, which is the standard output power of a V-Mount Battery Pack, that use all world brand Professional Broadcast Camcorders…
HBP-NPF allows you to power any V-Mount/V-Lock Professional Broadcast Camcorder, with standard two High Capacity L-series or NP-F Batteries, as long as the voltage is equivalent to 7.2V ~ 7.4V. The combined voltage of the two L-series or NP-F Batteries will be 14.4V ~ 14.8V, which is the standard output power of a V-Mount Battery Pack, that use all world brand Professional Broadcast Camcorders…

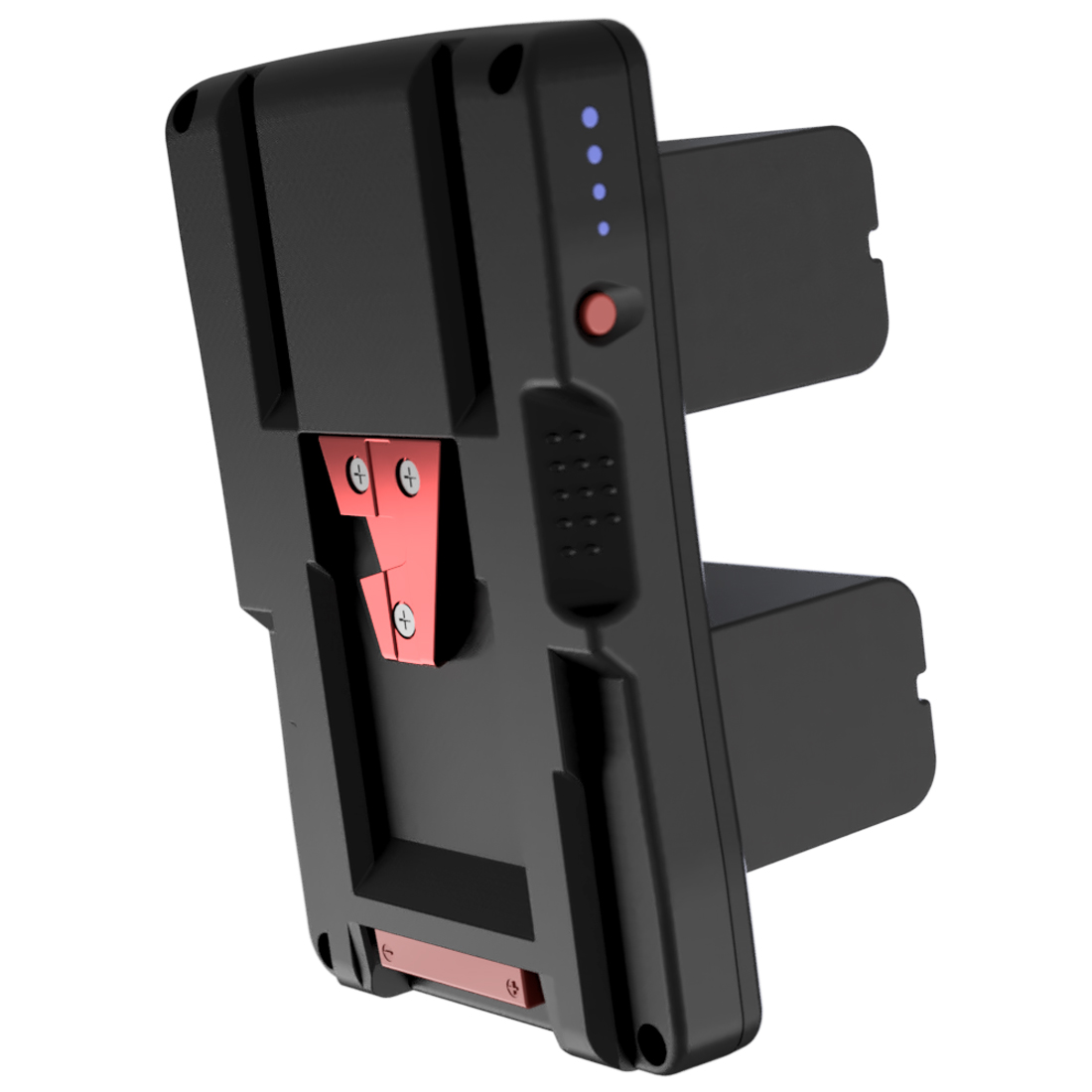

V-Mount Connection Holder
HBP-NPF is equip with standard V-mount connection, and we adopt the high quality lightweight aluminium V-wedge that ensures the reliable and safe mounting.

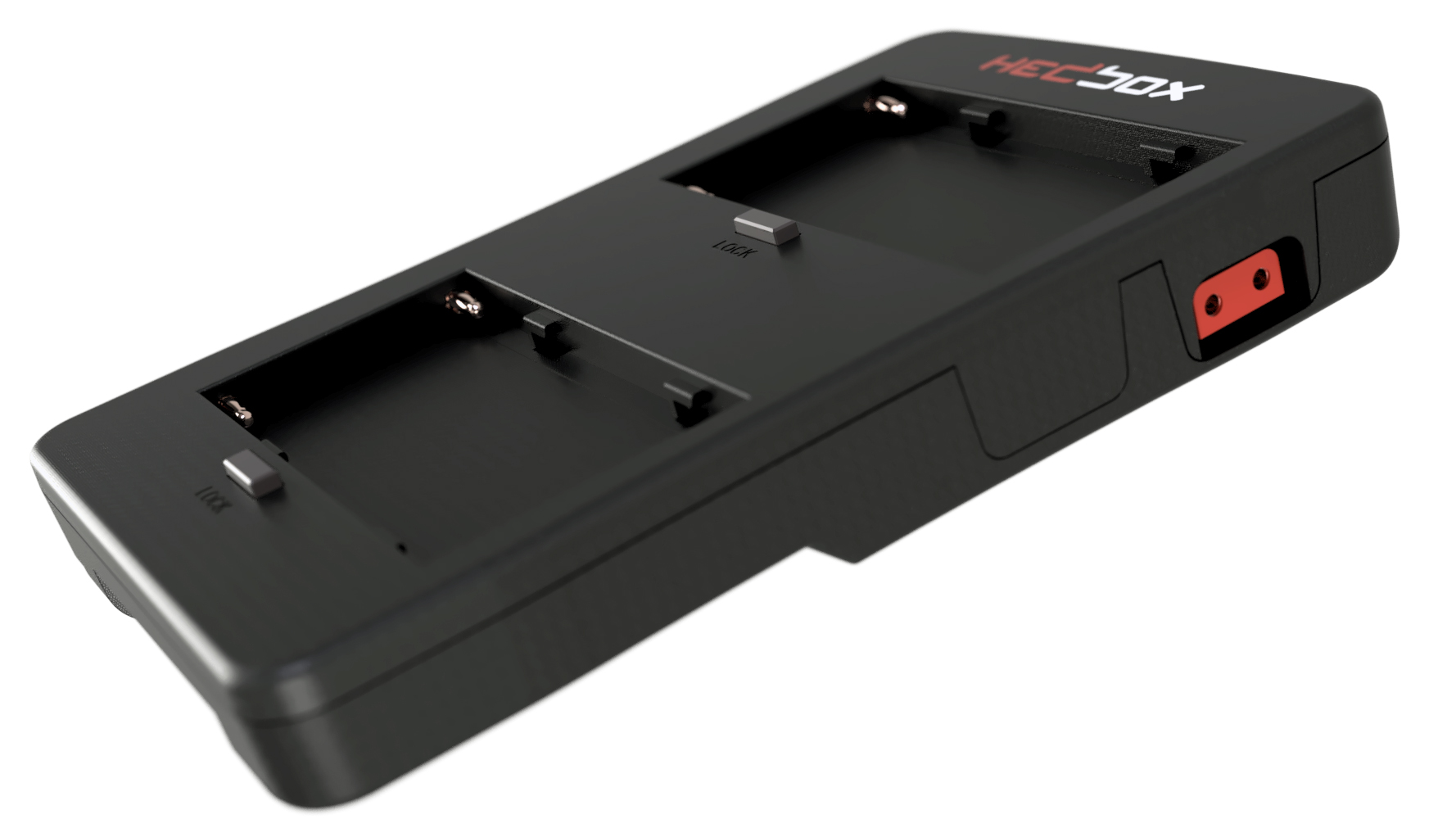

Built-in D-tap Output 14.8V 72W, 6A DC Socket
A D-Tap DC output socket is equipped on the side of the HBP-NPF plate. With this external Power supply facility, you can connect on-camera LED light, Video Monitor or Wireless Transmitter on the D-tap socket, and get power simultaneously together with Battery Plate attached to the Camera, or totally separately like independent Power Station. The Max power from D-tap is 72W, 6A.

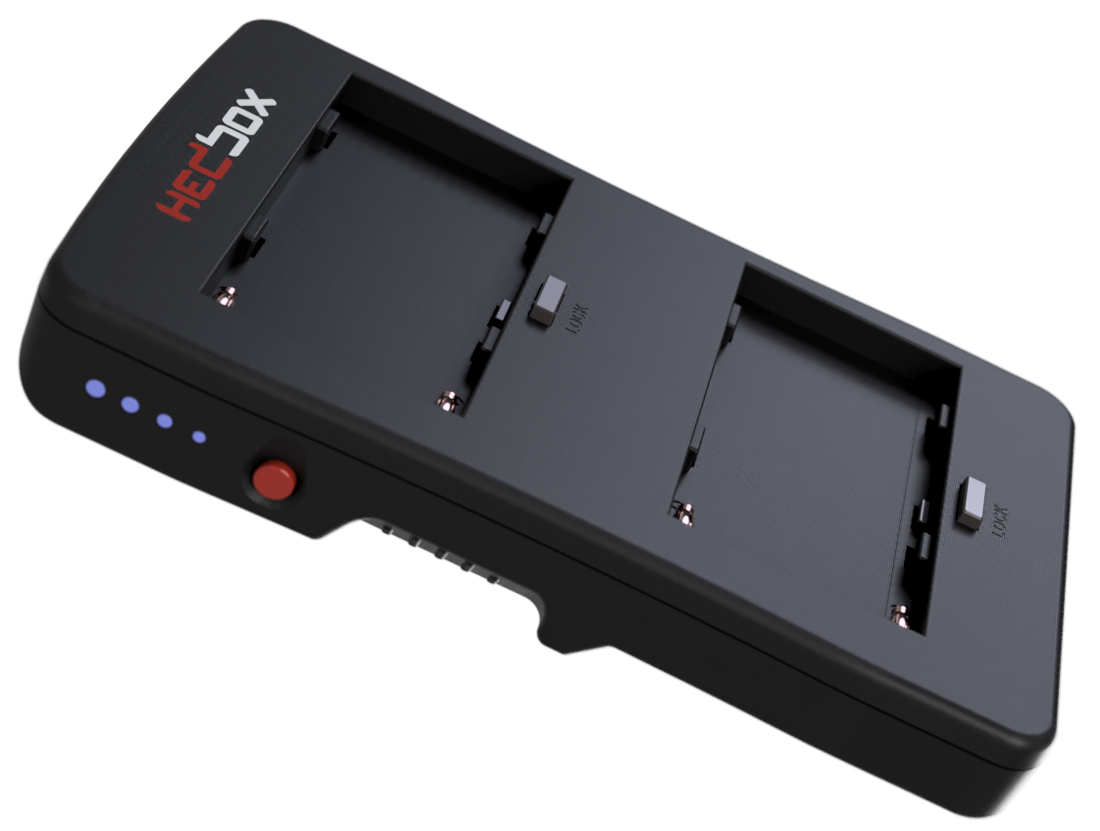

4-LED Power Monitor Indicator
HBP-NPF V-Lock Battery Converter Plate have build in 4-LED Power Monitor indicator that, upon the press of test button, shows whether 100%, 75%, 50%, or 25% of power is left remaining in the mounted DV Battery Packs.
Technical data
Model: HBP-NPFÂ V-lock DV NP-F Battery Converter Power Adapter Plate
Mount Type: V-Lock ( High Quality Aluminium Alloy wedge plate)
DV Battery Slots: 2 x Sony NP-F Style Battery
Output Voltage: DC 13 – 16.8V , 8A / 72W (max)
Support Bat Voltage: DC 7.2 – 7.6V
Supported Capacity: From 1400mAh to 20000mAh
D-Tap DC Output: 14.8V / 8A / 72W (max)
Power Meter: Blue Color 4-LED Power Monitor ( Display 100%, 75%, 50%, or 25% bat. capacity )
Operating Temperature: –20°C to +45°C
Dimensions (WxDxH): 96 x 22 x 151 mm
Weight: 140 g
Operational Method: Mount 2 x DV Sony NPF Style battery to generate 14.8V / 8A V-lock mount DC Power
