HEDBOX NERO SX
The new NERO SX V-Mount battery with High Performance and high safety designed specially for RED Cameras. The NEW and revolutionary Cells Framing Construction System provides extra security and stability to the inner battery cells.
Compared to all the other Battery Brands this new advanced system not only makes the NERO batteries much safer for daily professional use but also for transportation.
NERO SX represents the smallest cine V-Mount Battery in the NERO family range that is fully compatible with all RED Family Cameras. Through it’s additional D-Tap DC output the NERO SX can deliver power to all professional devices. An extra USB power output allows powering of all devices that need DC 5V DC.
HEDBOX NERO SX is fully compatible with all RED Family Cameras.
Built-in data communication chip that is RED protocol ready. Provide NERO SX battery syncing compatibilities with the RED Camcorder to display the exact power percentage on their LCD screen.
NERO use NEW and revolutionary Cells Framing Construction System, that provide extra security and stability to the inner battery cells. With this new advance system NERO is much more safe for transportation and daily operational use, compering to all other Battery Brands.
NERO SX contains a built in 4-LED power meter that, at the press of a button, displays the remaining battery percentage at 100%, 75%, 50%, or 25%.

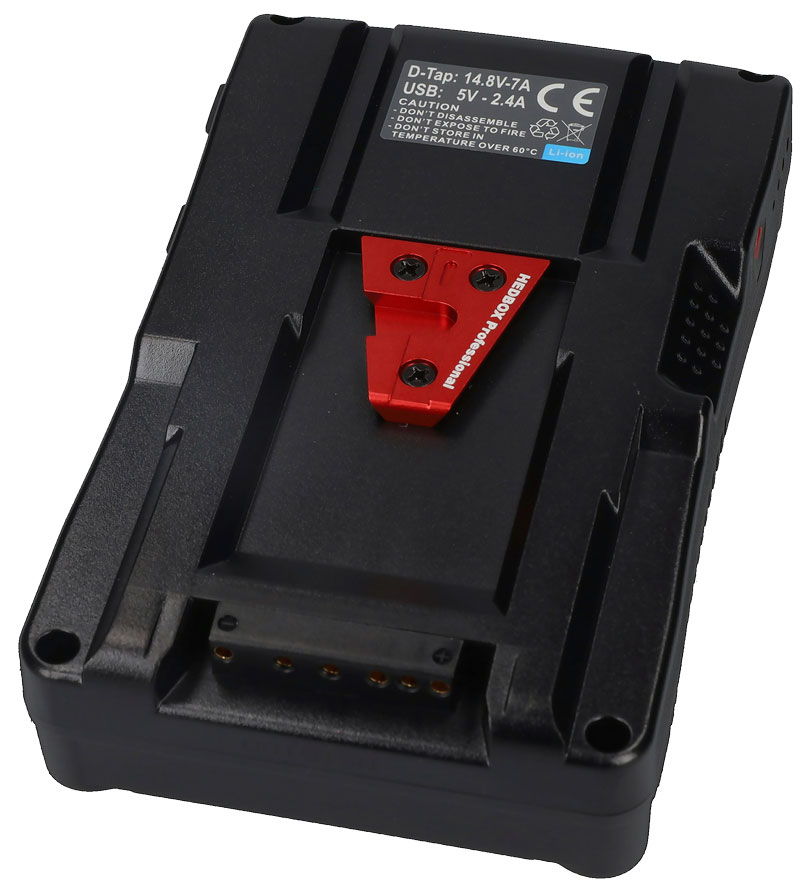

NERO SX has a standard V-mount connection with a high-quality lightweight aluminum V-wedge to ensure for safe and reliable mounting.

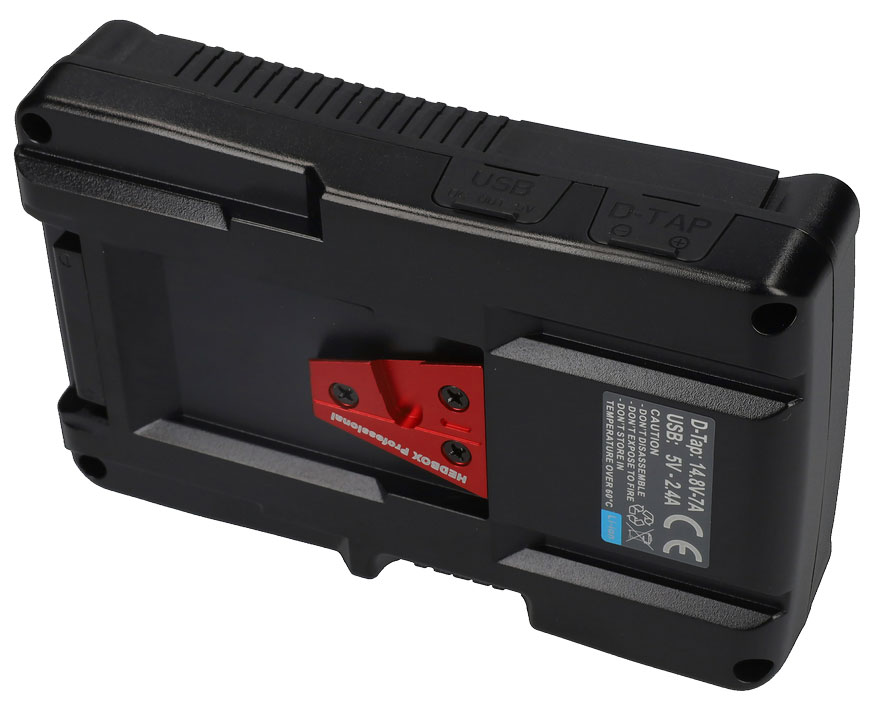

Through it’s additional integrated D-Tap DC Power output the NERO SX can deliver 14.8V, 148W/10A to all professional devices. An extra USB power output allows the charging of mobile phones, tablets or other accessories using one single battery.
Technical data
Model: NERO SX – Professional HIGH LOAD Lithium-Ion Battery Pack
Mount Type: V – Mount RED Cameras Compatible ( V-lock holder )
Power Meter: Blue Color 4-LED Power Monitor ( Display 100%, 75%, 50%, or 25% SOC capacity )
Product Color: Dark Grey
Bat. Cell Model: LG High Load Stand 18650 x 8
Bat. Cell Chemistry: Lithium-Ion
Output Voltage: 14.8V DC
Minimum Out Voltage: 10.0V DC ( Auto Power Control )
Capacity: 6700 mAh / 98 Wh – On AIR Transport Certification
Maximum Load: 10A / 145W
USB Output: 5V, 12W / 2.4A max ( Dust Protection Cover )
D-Tap Output: 14.8V, 100W / 6.8A max ( Dust Protection Cover )
Internal Protection: Cells Framing Construction System
Maximum Charge: 16.8V / 3.0A
Dimensions (WxHxD): 152 x 96 x 41 mm
Operating Temperature: –20°C to +45°C
Weight: 560 g
