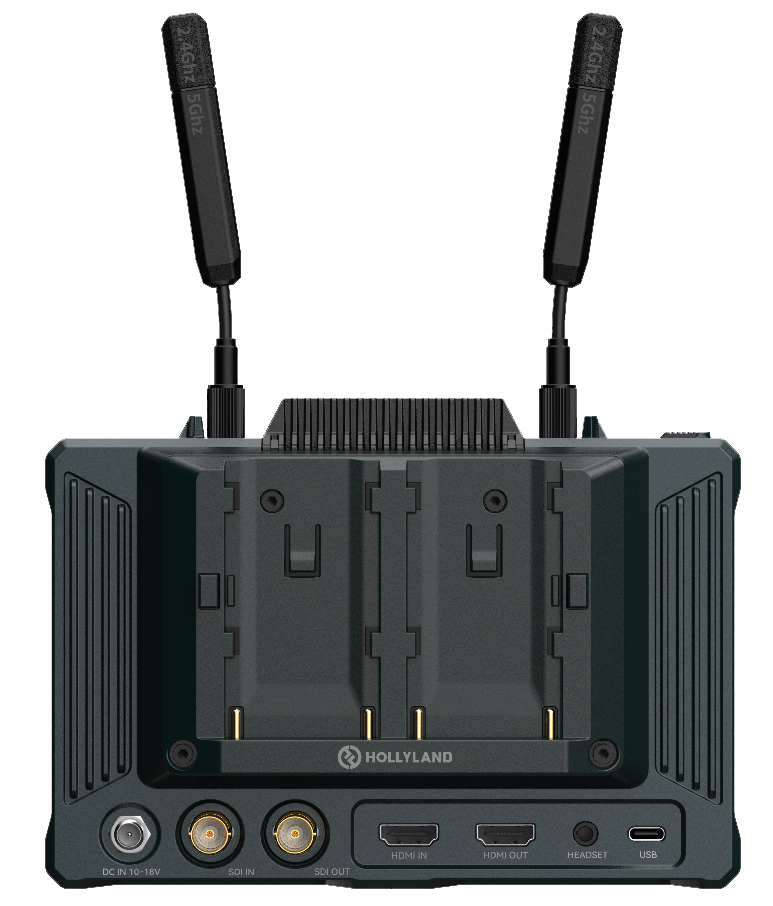

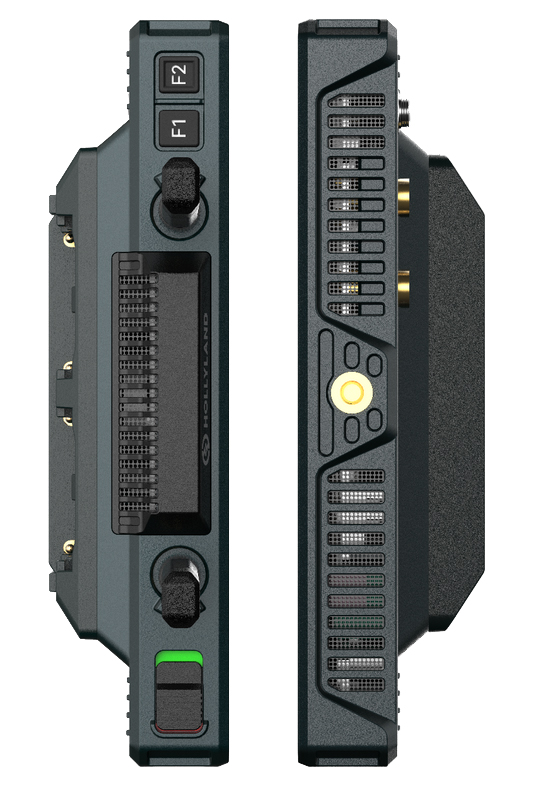

Hollyland Pyro 7 wireless monitor
Product number:
SW28207.1
Manufacturer:
Hollyland
Manufacturer product number:
Pyro 7
Delivery time:
1-3 days
Hollyland Pyro 7
Hollyland Pyro 7 is a 7-inch wireless monitor that integrates the functionalities of TX, RX, and monitor, all in one. It utilizes Auto Dual-Band Hopping (ADH) technology. With 1,300ft (400m) and an incredibly low latency of only 60ms, Pyro 7 supports 2.4GHz/5GHz dual-band transmission and automatic frequency hopping. Its exceptional hardware design enables Pyro 7 to simultaneously connect one transmitter to four receivers, and the convenience of dual-camera monitoring is achieved through customizable shortcut keys. Additionally, the upgraded HollyOS system provides enhanced image analysis capabilities and allows for video file export via an external SD card. Pyro 7 is compatible with Pyro H and Pyro S, which means you can easily pair Pyro 7 with either Pyro H or Pyro S. This provides you with greater flexibility and scalability to meet various monitoring needs.
FEATURES
- 1TX & 4RX
- 1300ft (400m) & 0.06s Latency
- 2.4GHz & 5GHz Dual Band
- Auto Frequency Hopping
- TX, RX, and Monitor – All in One
- Dual-View Quick Monitoring Switch
- 7 Inch & 1200 nits
- Precise Image Analysis (icon HollyOS)
- SDI & HDMI Loopout
- RTMP Streaming
Technical data
- Input port: HDMI 1.4b + 3G SDI
- Outout port: HDMI 1.4b + 3G SDI
- Antenna: RP-SMA Malex2
- Power input: DC Input (2.0mm core socket)
- Headphone Jack: 3.5mm
- Screen Resolution: 1920 × 1200 pixels
- Pixel Density: 323 PPI
- Aspect ratio: 16:9
- Screen Brightness: 1200 nits
- Screen size: 7-inch touchscreen
- Contrast ratio: 1000:1
- Power consumption: < 22W
- Audio format: HDMI 1.4b 8-Channel
- Bandwidth: 20 MHz; 40 MHz (in Broadcast mode)
- Transmission latency: ≈ 60ms (test data when 1080p60 signals are transmitted in a laboratory)
- Transmit Power: ≤ 23 dBm
- Receiver Sensitivity: -80 dBm
- Display Latency:< 50ms
Details of the manufacturer
- Shenzhen Hollyland Technology Co.,Ltd
- 8F, Building 5#D, Skyworth Innovation Valley, Tangtou Road Shiyan Street, Baoan District, Shenzhen, China
(852) 3666 5111
Details of the person responsible for putting the product on the European market
- Hollyland Europe GmbH
- Ingolstädter Str. 20
- 80807, Munich, Germany
+49 89 13957785
Warnings and safety information
Related links of the manufacturer
Skip product gallery
Accessories
Hollyland Pyro H
PLN 1,855.52*
net: PLN 1,508.55
Hollyland Pyro H
Hollyland Pryo H, your ultimate HDMI-only solution specially designed for video transmission at up to 4K/30fps, is now available on the market. With transmission over dual 2.4 GHz and 5 GHz frequency bands, this innovative kit marks Hollyland’s pioneering leap into the realm of 4-receiver support, offering enhanced monitoring stability and collaboration on set. With a new level of performance in transmission range, and latency, among other things, Pyro H is to make a difference.Key Features1TX & 4RXUp to 1,300ft (400m)0.06s Low Latency2.4 GHz & 5 GHz Dual Band4K30 TransmissionHDMI LoopoutUSB Video Class (UVC)Smart Channel Scan
Technical data
Power Consumption: <7WNet Weight: 192gDimensions: L × W × H: 109 × 62.3 × 33.4mmTransmit Power: < 23 dBmLatency: 0.06s (test data when 1080p60 signals are transmitted in a laboratory)Range: 1,300ft (400m)(test data in an open, interference-free environment)Bandwidth: 20 MHz (Broadcast: 40 MHz)Operating Frequency5 GHz Frequency Band5.150 – 5.250 GHz5.250 – 5.350 GHz5.470 – 5.725 GHz5.725 – 5.850 GHz2.4 GHz Frequency Band2.412 – 2.484 GHzInput/Output FormatHDMI720p50/59.94/601080i50/59.94/601080p23.98/24/25/29.97/301080p50/59.94/60
4K30/25/24HDMI Loopout720p50/601080i50/601080p24/25/301080p50/604K30/25/24PortDC Input: 2.0mm Core SocketHDMI Input: HDMI 1.4bHDMI Loopout: HDMI 1.4bUSB-C: USB 2.0 OTGAntenna: SMA MalePower SupplyUSB-C: 5V/2A (not supported in Broadcast mode)Battery Voltage Range: 6.8 – 8.4VDC Voltage Range: 6 – 16V

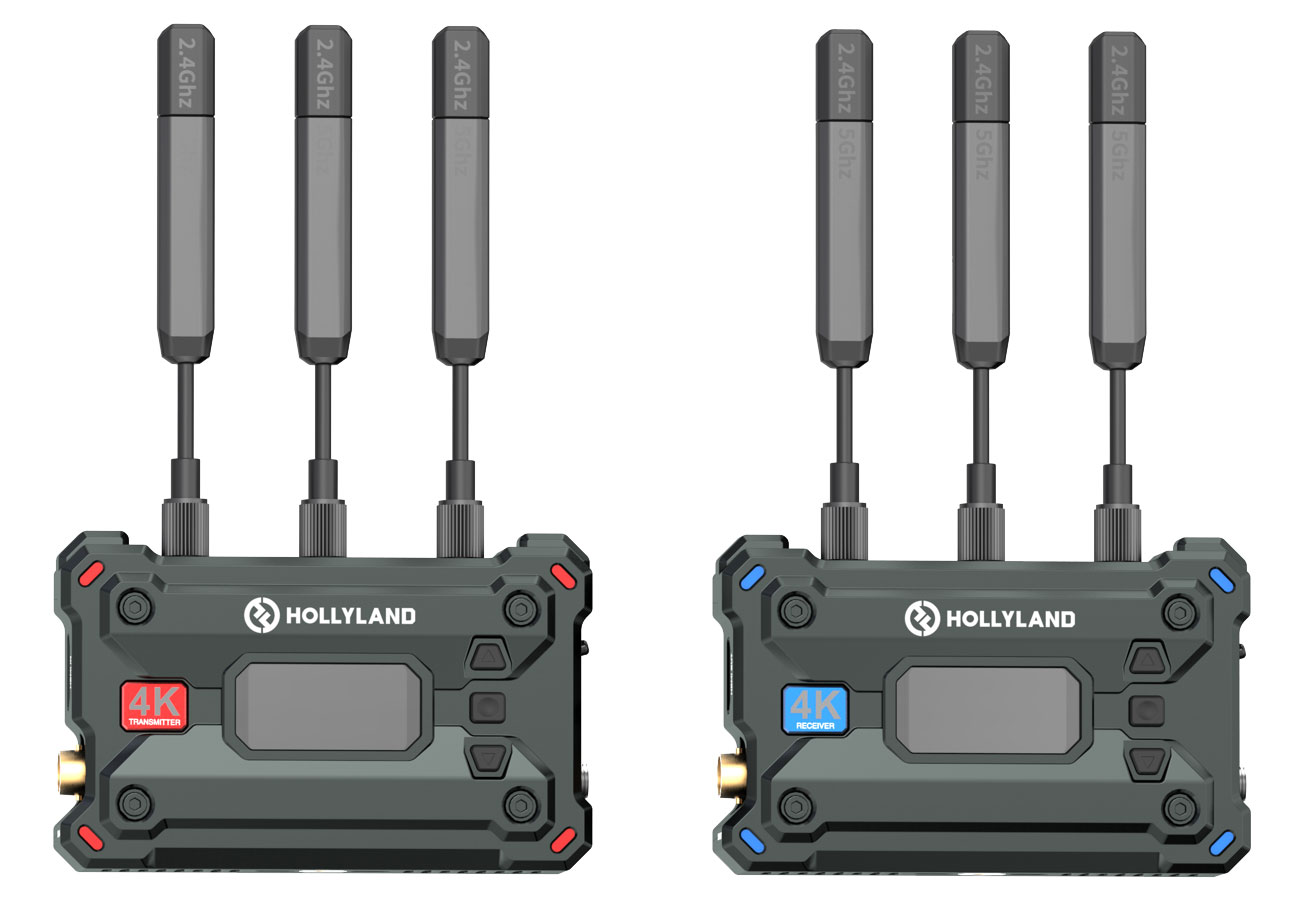

Hollyland PYRO S RX TX
PLN 2,293.40*
net: PLN 1,864.55
Hollyland PYRO SPyro S is a groundbreaking addition to the Hollyland Pyro Series lineup, which redefines wireless video
transmission. Hollyland Pyro S supports both HDMI and SDI input/output and can transmit to up to four receivers
simultaneously, with a range of up to 1,300ft (400m) and minimal latency of just 50ms. Pyro S uses advanced
Auto Dual-Band Hopping (ADH) technology to ensure reliable transmission and features selectable modes for
your real-world shooting needs. Lighter and more durable than traditional models, Pyro S's magnesium alloy
shell makes it easier to carry and handle. It's ideal for multi-user monitoring in dynamic shooting scenarios, such as film production, live events, and ENG/EFP applications.
FEATURES1 Transmitter to 4 ReceiversUp to 1,300ft (400m)0.05s Low Latency2.4 GHz & 5 GHz Dual BandAuto Frequency HoppingHDMI & SDIMultiple Power Supply OptionsUVC Streaming4K30 TransmissionReady Out of the Box

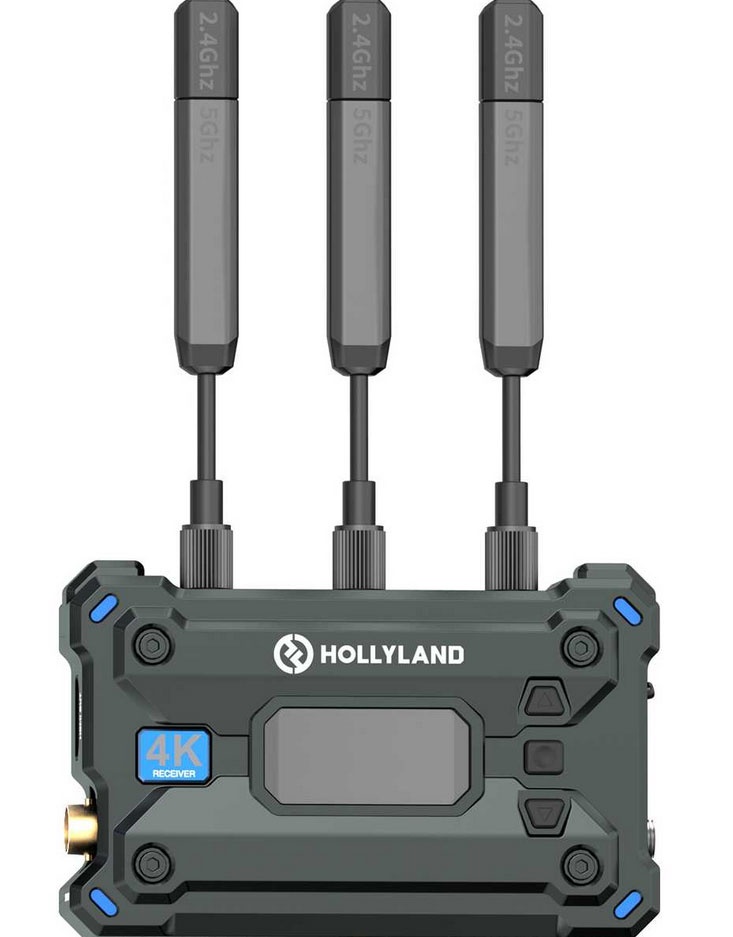

Hollyland Pyro S RX Wireless Video Receiver
PLN 1,253.43*
net: PLN 1,019.05
Hollyland Pyro S RXPyro S is a groundbreaking addition to the Hollyland Pyro series lineup, which redefines wireless video transmission. Pyro S supports HDMI and SDI input/output and can transmit to up to four receivers simultaneously, with a range of up to 1,300ft (400m) and minimal latency of just 50ms. Pyro S uses advanced Auto Dual-Band Hopping (ADH) technology to ensure reliable transmission and features selectable modes for your real-world shooting needs.Features1 TX to 4 RXUp to 1300ft(400m)0.05S low latency2.4 GHz & 5 GHzADH (Auto Dual-Band Hopping)HDMI & SDIUVC & RTMP streaming4K30 transmission
What's in the Box1 x Pyro S Wireless Video Receiver3 x Paddle Antenna (2.4 GHz & 5 GHz)1 x USB-C OTG Adapte*1 User Manual1 x Warranty Card1 x Packing List Card1 x Hollyland Ecosystem Leaflet1 x 12V/2A DC Power Adapter
Technical dataPortDC Input: 2.0mm Core SocketHDMI Output: HDMI 1.4bSDI Output: 3G SDIUSB-C: USB 2.0 OTGAntenna: SMA MalePower SupplyBattery Voltage Range: 6.8 – 8.4VDC Voltage Range: 6 – 16VPower Consumption
< 8WNet Weight
207gDimensions
L × W × H: 112 × 71.2 × 34.1mmInput/Output FormatHDMI Output720p50/59.94/601080i50/59.94/60080p23.98/24/25/29.97/301080p50/59.94/603840*2160 30/25/24/29.97/23.98SDI Output1080p50/59.94/601080i50/59.94/601080p23.98/24/25/29.97/30720p50/59.94/601080p23.98/241080i50/59.94/60Operating Frequency5 GHz Frequency Band5.150 – 5.250 GHz5.250 – 5.350 GHz5.470 – 5.725 GHz5.725 – 5.850 GHz2.4 GHz Frequency Band2.412 – 2.484 GHzReceiver Sensitivity
-85 dBm (Broadcast: -80 dBm)Latency
as low as 50msBandwidth20 MHz(Broadcast: 40 MHz)Temperature10 – 45℃ (working)-40 – 60℃ (storage)

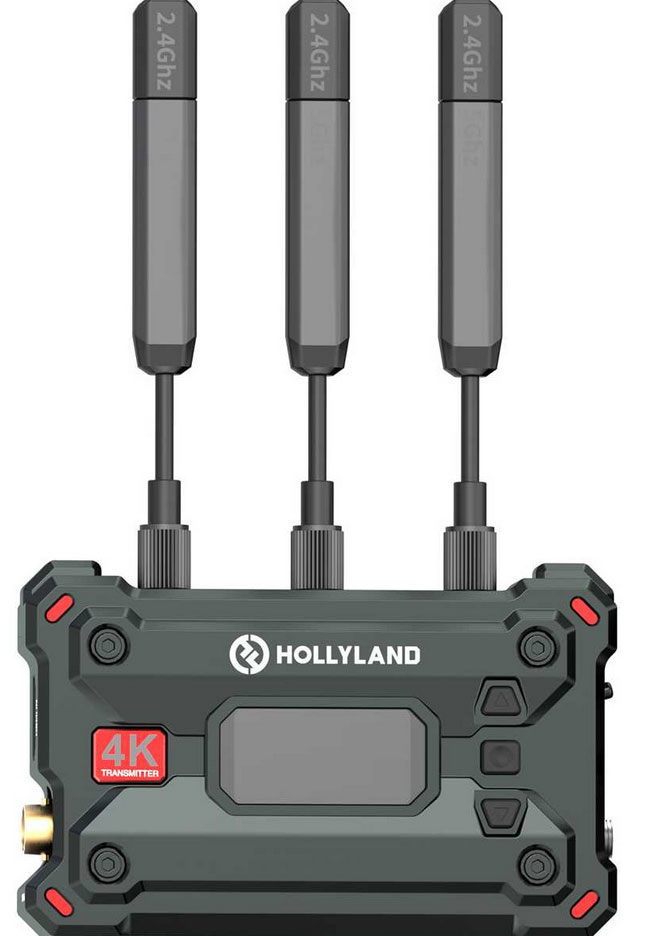

Hollyland Pyro S TX Wireless Video Transmitter
PLN 1,253.43*
net: PLN 1,019.05
Hollyland Pyro S TXPyro S is a groundbreaking addition to the Hollyland Pyro series lineup, which redefines wireless video transmission. Pyro S supports HDMI and SDI input/output and can transmit to up to four receivers simultaneously, with a range of up to 1,300ft (400m) and minimal latency of just 50ms. Pyro S uses advanced Auto Dual-Band Hopping (ADH) technology to ensure reliable transmission and features selectable modes for your real-world shooting needs. Lighter and more durable than traditional models, Pyro S’s magnesium alloy shell makes it easier to carry and handle. It’s ideal for multi-user monitoring in dynamic shooting scenarios, such as film production, live events, and ENG/EFP applications. Features
1 TX to 4 RXUp to 1300ft(400m)0.05S low latency2.4 GHz & 5 GHzADH (Auto Dual-Band Hopping)HDMI & SDIUVC & RTMP streaming4K30 transmissionIn the box1 x Pyro S Wireless Video Transmitter3 x Paddle Antenna (2.4 GHz & 5 GHz)1 x Rotatable Cold Shoe Mount1 x USB-C OTG Adapter1 x User Manual1 x Warranty Card1 x Packing List Card1 x Hollyland Ecosystem Leaflet
Skip product gallery
Similar products
Hollyland Mars M1 Enhanced
PLN 2,134.67*
net: PLN 1,735.50
M1 Enhanced:
5.5" Wireless Transceiving Monitor
Hollyland Mars M1 Enhanced
The Mars M1 Enhanced is a versatile wireless monitor that integrates transmitter, receiver, and monitoring functions into one solution. The 5.5″ touch screen with groundbreaking advantages such as accurate color calibration and Rec.709 color gamut, delivers a pleasant monitoring experience with professional image analysis functions. The device supports an impressive LOS range of up to 450ft (150m) and boasts a low latency of only 0.08 seconds, allowing for more flexibility in device deployment and ensuring seamless monitoring without noticeable lag.
The Mars M1 Enhanced wireless transmission monitor is a powerful and comprehensive solution for all your monitoring needs. Because it is an all-in-one device integrating the functionalities of a transmitter, receiver, and monitor into a single solution, you can effortlessly switch between the transmitter and receiver modes on its settings interface. Furthermore, a single Mars M1 Enhanced transmitter can seamlessly connect with up to two receivers or four mobile device apps.
The Hollyland Mars M1 Enhanced is a top-quality monitor with excellent color accuracy. Its highly responsive 5.5″ LCD touch screen and outstanding brightness of up to 1,000 nits make it perfect for outdoor use. The monitor undergoes a color calibration process during manufacturing, ensuring that every image is displayed with stunning resolution, vivid details, and unmatched color accuracy. Additionally, you can fine-tune the RGB gain using a simple reset option to achieve the perfect colors suitable for your needs.
5.5" Wireless Transceiving Monitor - In the box
1 x Hollyland Mars M1 Enhanced2 x Capsule Antenna1 x Tempered Glass Screen Protector1 x USB-C Converter1 x D-Tap to Locking DC Power Cable
DUAL 5.5" Wireless Transceiving Monitor - In the box
2 x Hollyland Mars M1 Enhanced4 x Capsule Antenna2 x Tempered Glass Screen Protector2 x USB-C Converter2 x D-Tap to Locking DC Power Cable

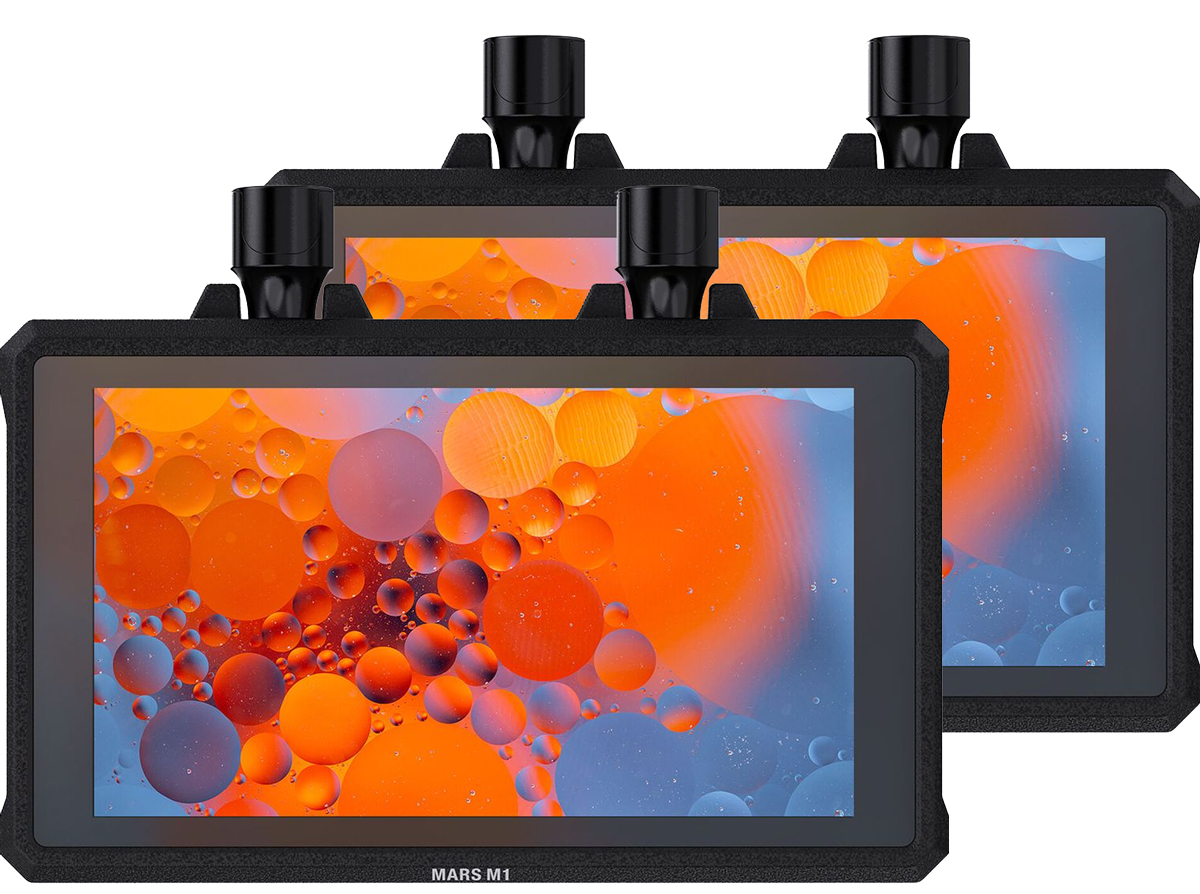

Hollyland Mars M1 Enhanced Kit
