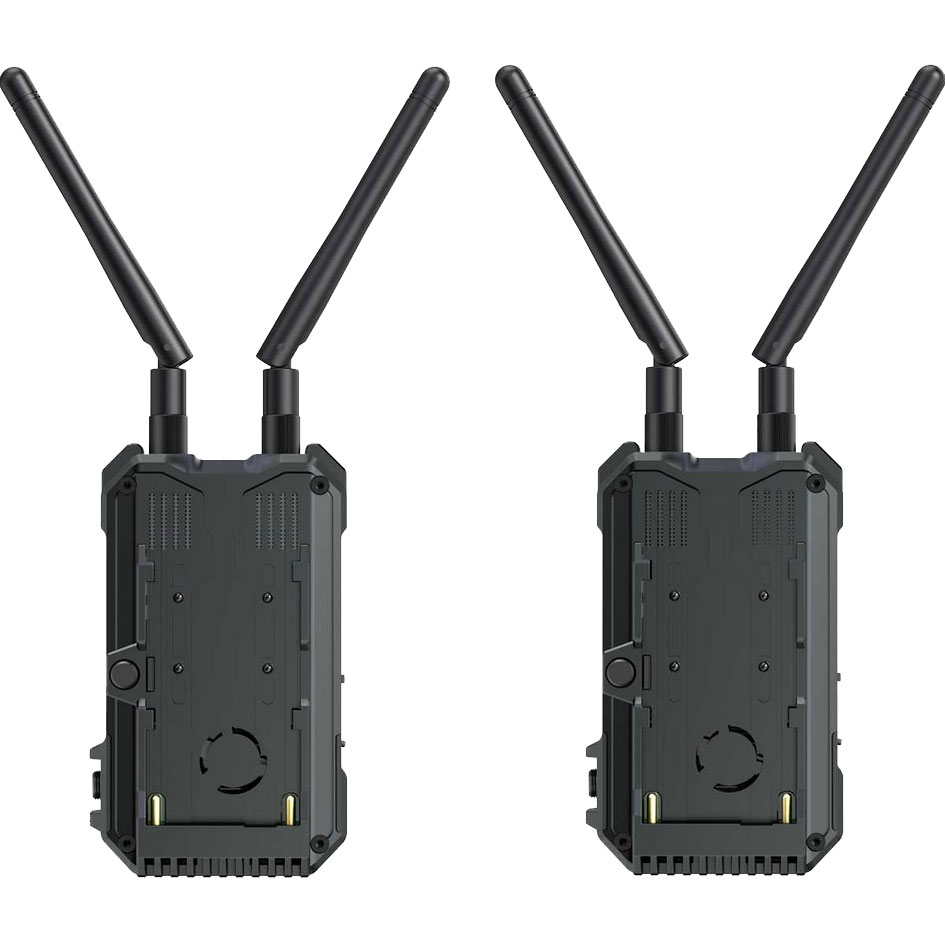

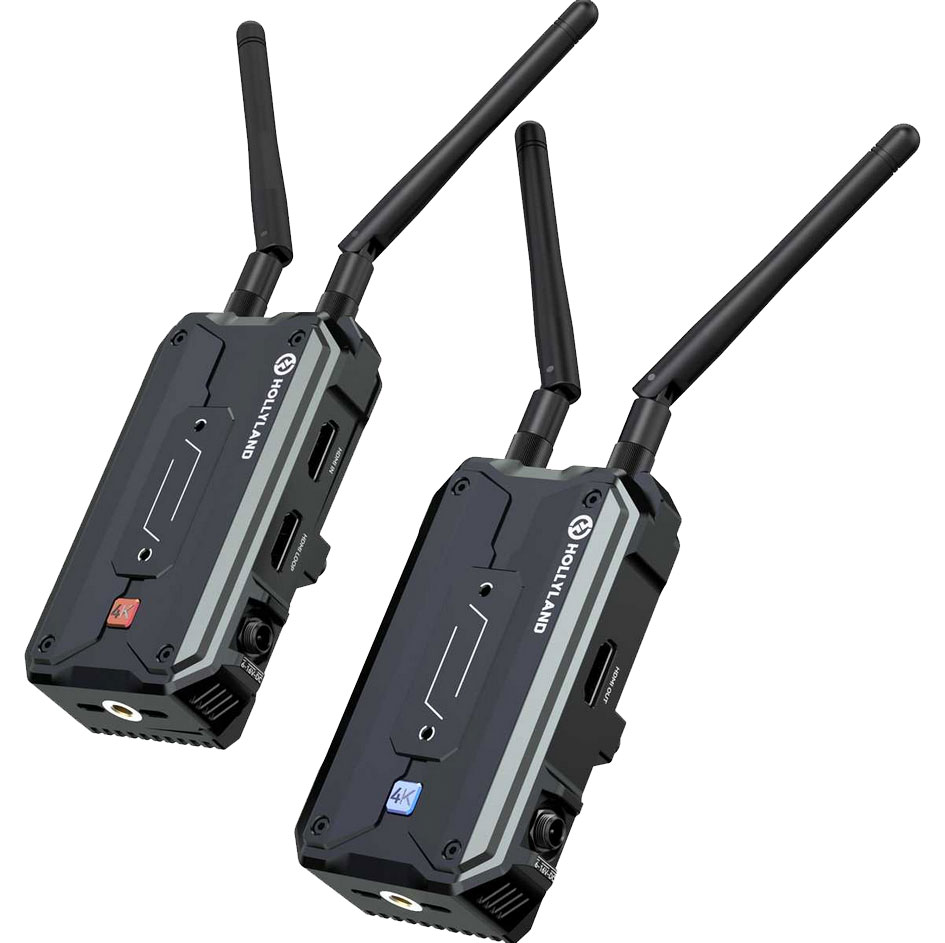

Hollyland Pyro H
PLN 2,348.13*
Available, delivery time: 1-3 days
Hollyland Pyro H
Hollyland Pryo H, your ultimate HDMI-only solution specially designed for video transmission at up to 4K/30fps, is now available on the market. With transmission over dual 2.4 GHz and 5 GHz frequency bands, this innovative kit marks Hollyland’s pioneering leap into the realm of 4-receiver support, offering enhanced monitoring stability and collaboration on set. With a new level of performance in transmission range, and latency, among other things, Pyro H is to make a difference.
Key Features
- 1TX & 4RX
- Up to 1,300ft (400m)
- 0.06s Low Latency
- 2.4 GHz & 5 GHz Dual Band
- 4K30 Transmission
- HDMI Loopout
- USB Video Class (UVC)
- Smart Channel Scan
Technical data
- Power Consumption: <7W
- Net Weight: 192g
- Dimensions: L × W × H: 109 × 62.3 × 33.4mm
- Transmit Power: < 23 dBm
- Latency: 0.06s (test data when 1080p60 signals are transmitted in a laboratory)
- Range: 1,300ft (400m)(test data in an open, interference-free environment)
- Bandwidth: 20 MHz (Broadcast: 40 MHz)
Operating Frequency
- 5 GHz Frequency Band
- 5.150 – 5.250 GHz
- 5.250 – 5.350 GHz
- 5.470 – 5.725 GHz
- 5.725 – 5.850 GHz
- 2.4 GHz Frequency Band
- 2.412 – 2.484 GHz
Input/Output Format
HDMI
- 720p50/59.94/60
- 1080i50/59.94/60
- 1080p23.98/24/25/29.97/30
- 1080p50/59.94/60 4K30/25/24
HDMI Loopout
- 720p50/60
- 1080i50/60
- 1080p24/25/30
- 1080p50/60
- 4K30/25/24
Port
- DC Input: 2.0mm Core Socket
- HDMI Input: HDMI 1.4b
- HDMI Loopout: HDMI 1.4b
- USB-C: USB 2.0 OTG
- Antenna: SMA Male
Power Supply
- USB-C: 5V/2A (not supported in Broadcast mode)
- Battery Voltage Range: 6.8 – 8.4V
- DC Voltage Range: 6 – 16V
