PLN 13,683.75*
Available, delivery time: 1 day

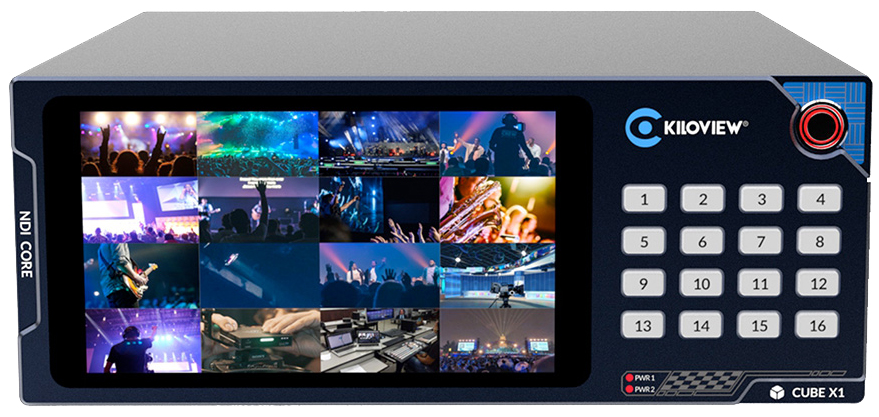

Kiloview CUBE X1
The CUBE X1 is designed for unified scheduling, switching, distribution, and management of all NDI signals, supporting up to 13CH NDI inputs and 26CH NDI outputs. It can achieve seamless switching of all NDI sources and switch without lagging or black screen.
Additionally, it is capable of multiple distribution of NDI data sources, multi-business grouping management, NDI signal rotation playback, etc. It is also compatible with NDI signals of any format or from any device, such as NDI High Bandwidth/NDI HX3/NDI HX2 for seamless docking. Equipped with an LCD touch screen, the KILOVIEW CUBE X1 allows users to monitor the network status, storage space, and CPU usage in real time.
Technical data
- Inputs/Outputs: 4KP60 up to 5/10 NDI inputs/outputs, NDI High Bandwidth 1080P60 up to 13/26 I/O, NDI HX up to 16 inputs and 32 outputs. Total input bandwidth not exceeding 2.5 Gbps. Total output bandwidth not exceeding 5 Gbps
- NDI Formats: NDI High Bandwidth/NDI HX/NDI HX3
- Resolution: Up to 4Kp60
- USB Ports: 2*use 2.0 (Type-A)
- Audio I/O: 1x 3.5mm LINE IN 1x 3.5mm LINE OUT
- Network: 2 x 10GbE SFP+ port;1 x 1GbE RJ45 Ethernet port
- Output Port: 1*HDMI
- Buttons: 16 buttons+1 Power
- Display: 5.5" 1080p LCD touch screen
- CPU: 8 CORE ARM 64-bit Processor
- RAM: 12GB
- ROM: 16GB
- Power supply: Redundant power, 100~230V AC
- System: Linux
- Weight: 2.00kg
- Management: Web
- Dimension (mm): 220*231.45*88mm(Combine two CUBE X1 to 2RU)
