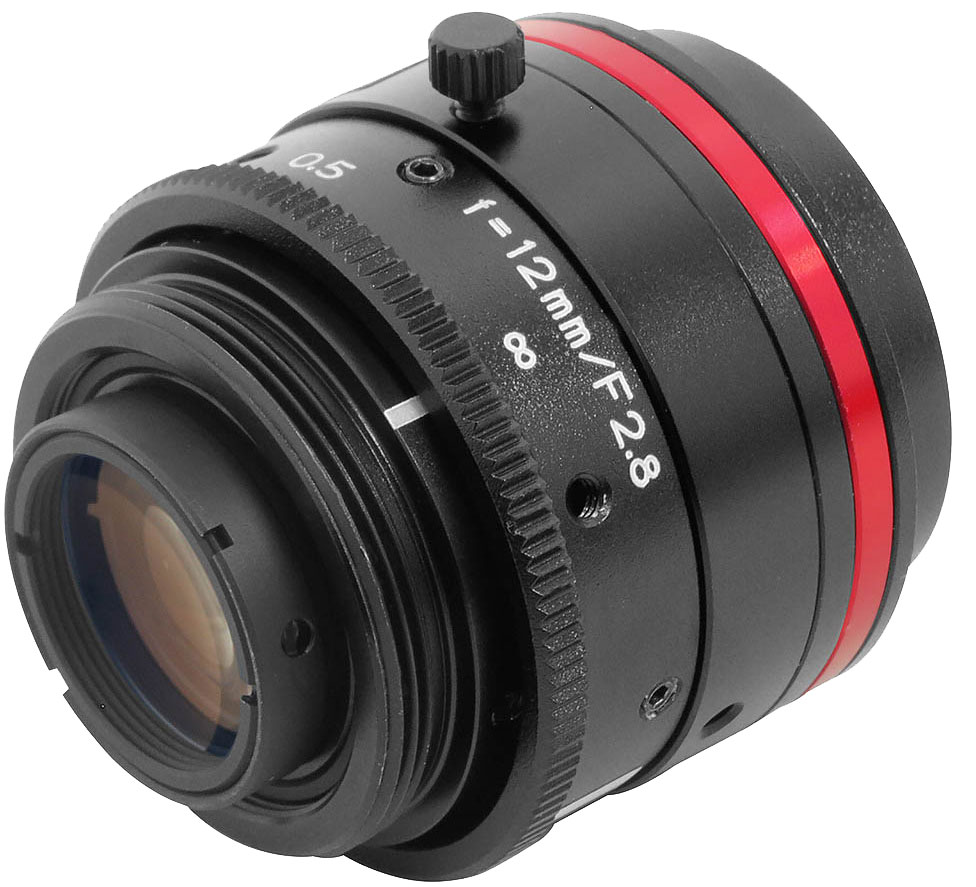

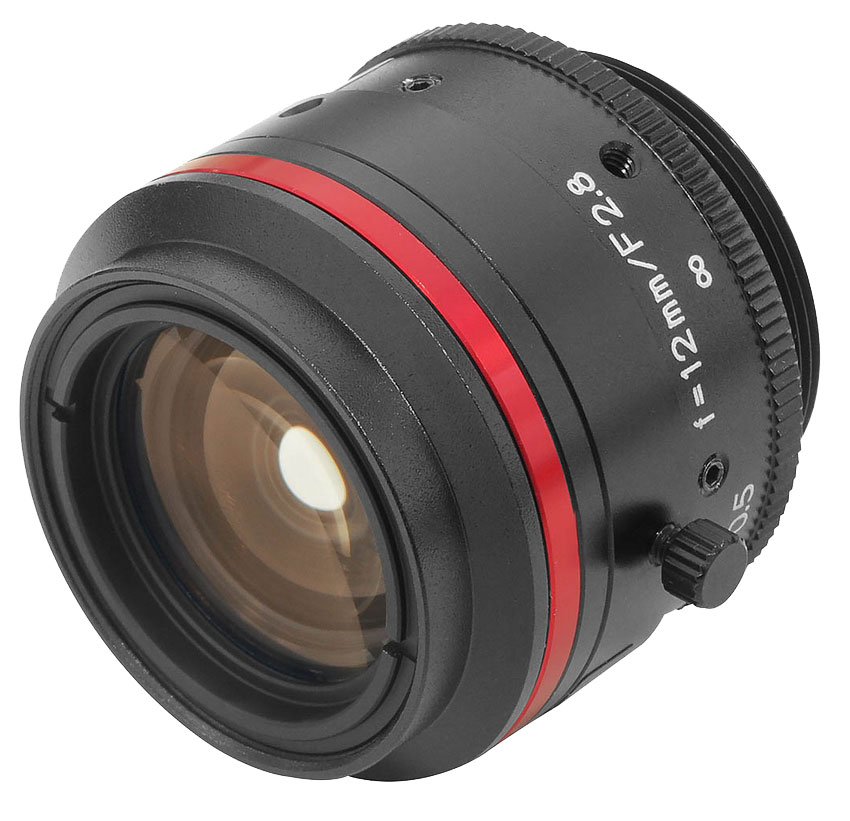

Kowa LM12JC5MC 12mm ULTRA COMPACT Lens (C-Mount)

Kowa LM12JC5MC

2/3" 5 Megapixel C-mount industrial lens
Focal length 12mm
For sensors with a pixel size from 3.5μm
Suitable for Sony IMX250, Sony IMX252, Sony IMX264, Sony IMX265 sensors and many more
Smallest 5 megapixel lens in its class
Ultra-compact design

Technical data

Focal Length (mm): 12
Sensor Size: 2/3"
Pixel Size (µm): 3,45
Mount: C-mount
Iris Control: Manual
Iris Range (F-Stop): 2,8 - 16
Lens Type: Fixed Focal Lens
Wavelength Range: VIS (380nm - 780nm)
Focusing Range (m): 0,2 - ∞
Focus Control: Manual
Shooting range at MOD, horizontal (mm): 159
Shooting range at MOD, vertical (mm): 118
Resolution, Center: 160
Resolution, Corner: 100
Megapixel: 5
Distortion (TV) (%): -0,43
Back focus in air (mm): 12,6
Size (mm): Ø32 X 26,8
Weight (g): 55
Temperature Range (℃): -10°C - +50°C
Series: JC5MC
Application: Machine Vision
