PLNÂ 2,178.45*

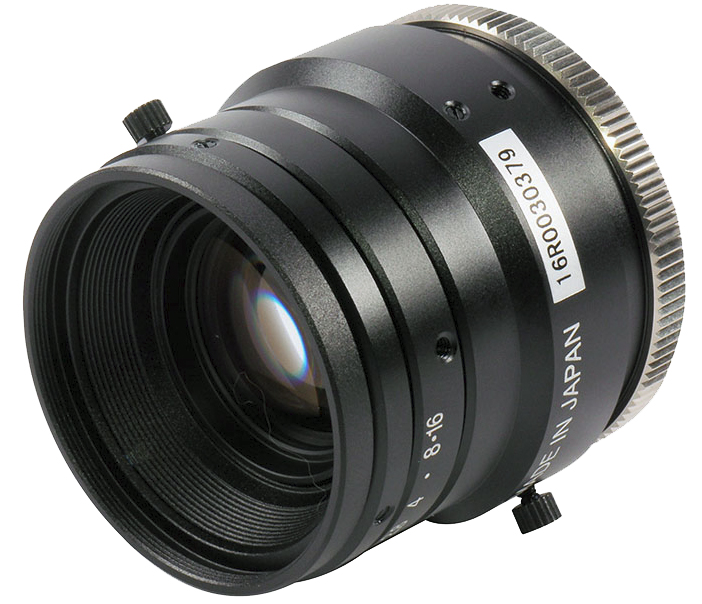

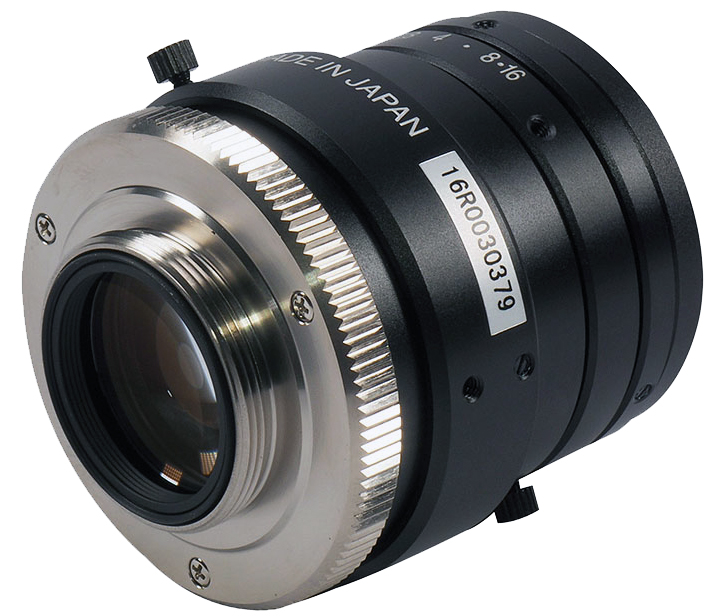

Kowa LM25HC
Kowa LM25HC is a C-Mount 25mm Fixed Lens designed for 1MP cameras. LM25HC offers low distortion and can be used with smaller format cameras. Technical data:
Focal Length (mm): 25
Sensor Size: 1"
Pixel Size (µm): 5
Mount: C-mount
Iris Control: Manual
Iris Range (F-Stop): 1,4 - 16
Lens Type: Fixed Focal Lens
Wavelength Range: VIS (380nm - 780nm)
Focusing Range (m): 0,3 - ∞
Focus Control: Manual
Shooting range at MOD, horizontal (mm): 160,7
Shooting range at MOD, vertical (mm): 119,2
Resolution, Center: 120
Resolution, Corner: 80
Distortion (TV) (%): -1
Back focus in air (mm): 16,5
Filter Size (mm): M35,5 x P0,5
Size (mm): Ø43 X 43
Weight (g): 125
Temperature Range (℃): -10°C - +50°C
Series: HC
Application: Broadcast, ITS/Traffic Control, Machine Vision
