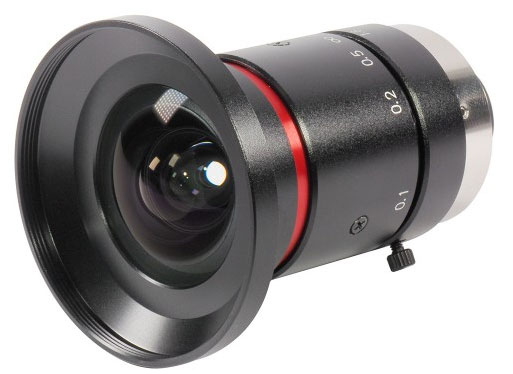

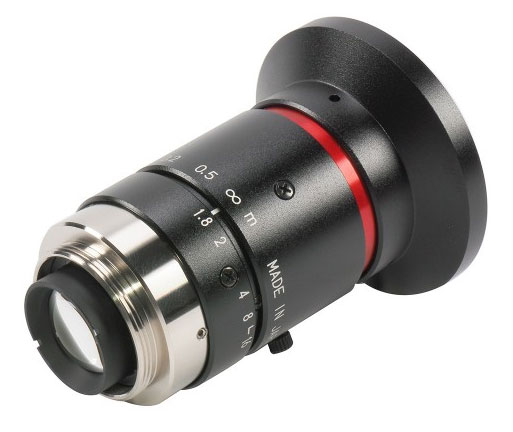

Kowa LM5JC10M 2/3" 5mm 10MP C-Mount Lens
PLN 4,926.15*
Free shipping
Available, delivery time: 1 day
Kowa LM5JC10M
2/3" 10 Megapixel C-mount Industrial Lens
Focal length 5mm
For sensors with a pixel size from 2.5μm
Suitable for Sony IMX250, Sony IMX264 and Aptina MT9D131 sensors and many more
Floating mechanism to eliminate optical aberrations
Broadband Coating: Transmission from VIS to NIR
Technical data
Focal Length (mm): 5
Sensor Size: 2/3"
Pixel Size (µm): 2,5
Mount: C-mount
Iris Control: Manual
Iris Range (F-Stop): 1,8 - 16
Lens Type: Fixed Focal Lens
Wavelength Range: VIS (380nm - 780nm), Broad Band Coating (380nm - 1000nm)
Focusing Range (m): 0,1 - ∞
Focus Control: Manual
Shooting range at MOD, horizontal (mm): 197
Shooting range at MOD, vertical (mm): 147
Resolution, Center: 200
Resolution, Corner: 160
Megapixel: 10
Distortion (TV) (%): -0,33
Back focus in air (mm): 10,3
Filter Size (mm): M46 x P0,75
Size (mm): Ø48 X 59,4
Weight (g): 120
Temperature Range (℃): -10°C - +50°C
Series: JC10M
Application: Broadcast, Machine Vision
Details of the manufacturer
- Kowa Optronics Co., Ltd.
- 2F Kudan Center Bldg. 4-1-7, Kudan-Kita, Chiyoda-Ku, Tokyo, 102-0073, Japan
Details of the person responsible for putting the product on the European market
- Kowa Optimed Deutschland GmbH
- Fichtenstr. 123
- 40233 Düsseldorf, Germany
+49-(0)211-542184-0
