Kowa LMZ69M 2/3" 11.5-69mm F1.4 C-Mount Lens

PLN 2,463.08*

net: PLN 2,002.50

Prices incl. VAT plus shipping costs

Available, delivery time: 1 day

Our availability in the Christmas in-between period: we will be closed from 23.12.2024. All orders placed during this period will be accepted, but shipped after 06.01.2025. We wish you a Merry Christmas and a Happy New Year.

Product number: SW23278

Manufacturer: Kowa

Manufacturer product number: LMZ69M

Delivery time: 1 day

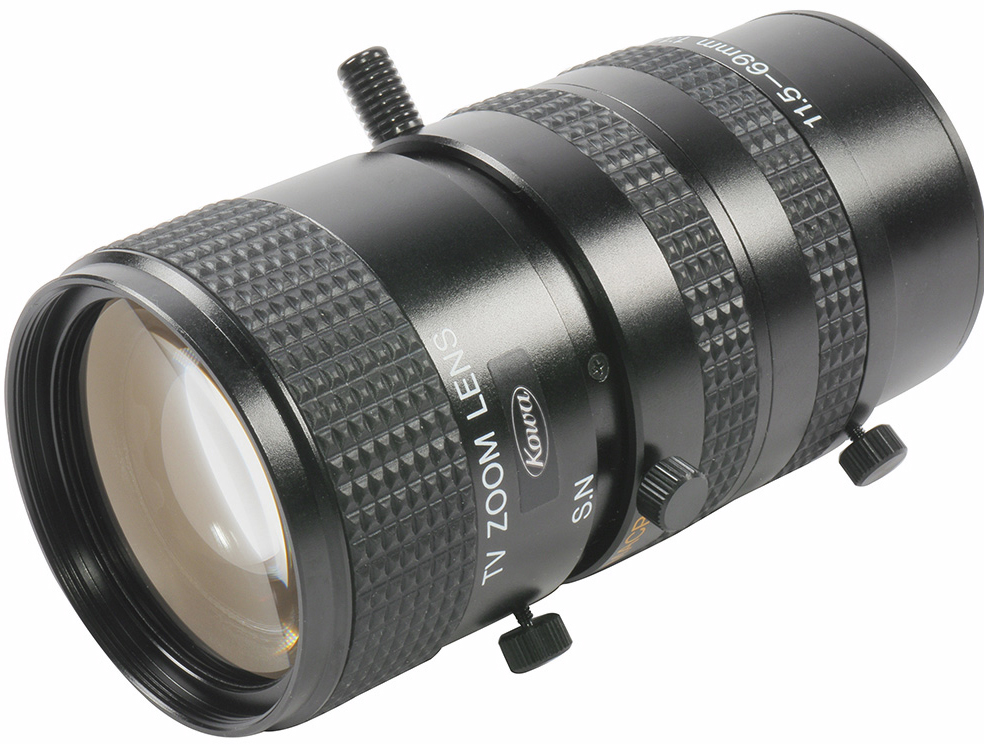

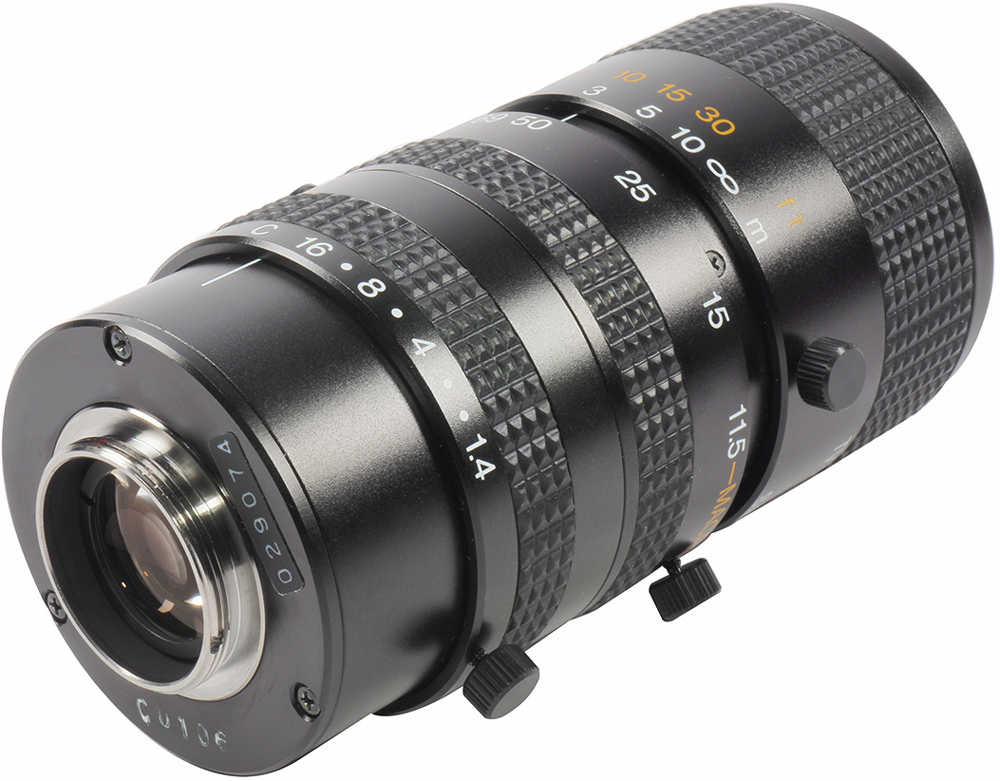

Kowa LMZ69M

Kowa LMZ69M 2/3" 11.5-69mm F1.4 Manual Zoom, Focus & Iris C-Mount Lens w/ Macro Mode

Metal mount
Metal housing

Technical data

Focal Length (mm): 11,5-69
Sensor Size: 2/3"
Pixel Size (µm): 5
Mount: C-mount
Iris Control: Manual
Iris Range (F-Stop): 1,4
Lens Type: Zoom
Wavelength Range: VIS (380nm - 780nm)
Focusing Range (m): 0,01 - ∞
Focus Control: Manual
Zoom Control: Manual
Resolution, Center: 100
Resolution, Corner: 60
Distortion (TV) (%): -
Back focus in air (mm): 17,93
Filter Size (mm): M46 x P0,75
Size (mm): Ø48 X 102,7
Weight (g): 300
Temperature Range (℃): -10°C - +50°C
Series: Macro Zoom
Application: Machine Vision
