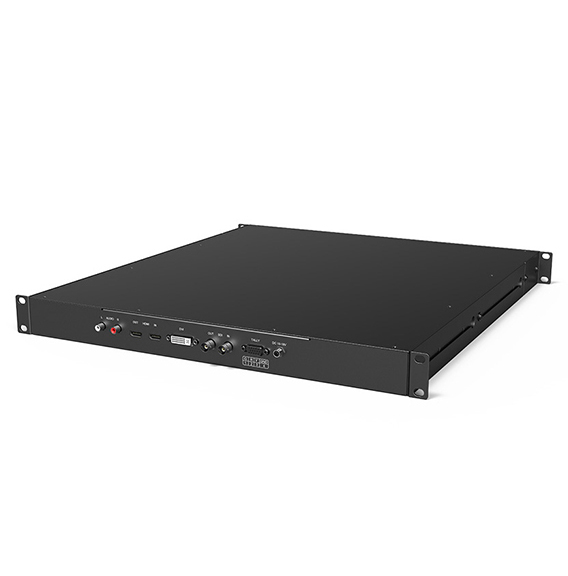

Lilliput RM-1730S 17.3" Full HD 3G-SDI/HDMI Pullout Rackmount Monitor
PLN 6,020.85*
Available, delivery time: 1-3 days
Lilliput RM-1730S
The LILLIPUT RM-1730S 17.3" Full HD 3G-SDI/HDMI Pullout Rackmount Monitor features a 16:9 IPS panel and offers a maximum resolution of 1920 x 1080p60. It provides a brightness rating of 300 cd/m2, a contrast ratio of 700:1, and viewing angles of 178°. The monitor comes with a host of functions including cross conversion, timecode, pixel zoom, vectorscope.
Technical data
Display
- Size: 17.3”
- Resolution: 1920×1080
- Brightness: 330cd/m²
- Aspect ratio: 16:9
- Contrast: 700:1
- Viewing Angle: 178°/178°(H/V)Video Input
- SDI: 1×3G
- HDMI: 1xHDMI 1.4
- DVI: 1
- LAN: 1
Video Loop Output （SDI / HDMI cross conversion）
- SDI: 1x3G
- HDMI: 1xHDMI 1.4
Supported In / Out Formats
- SDI: 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60
- HDMI: 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60
Audio In/Out (48kHz PCM Audio)
- SDI: 12ch 48kHz 24-bit
- HDMI: 2ch 24-bit
- Ear Jack: 3.5mm
- Built-in Speakers: 2
Power
- Operating power: ≤32W
- DC In: DC 10-18V
Environment
- Operating Temperature: -20℃~60℃
- Storage Temperature: -30℃~70℃
Other
- Dimension(LWD): 482.5 mm x 44 mm x 507.5mm
- Weight: 8.6kg (with case)
Accessory Items
