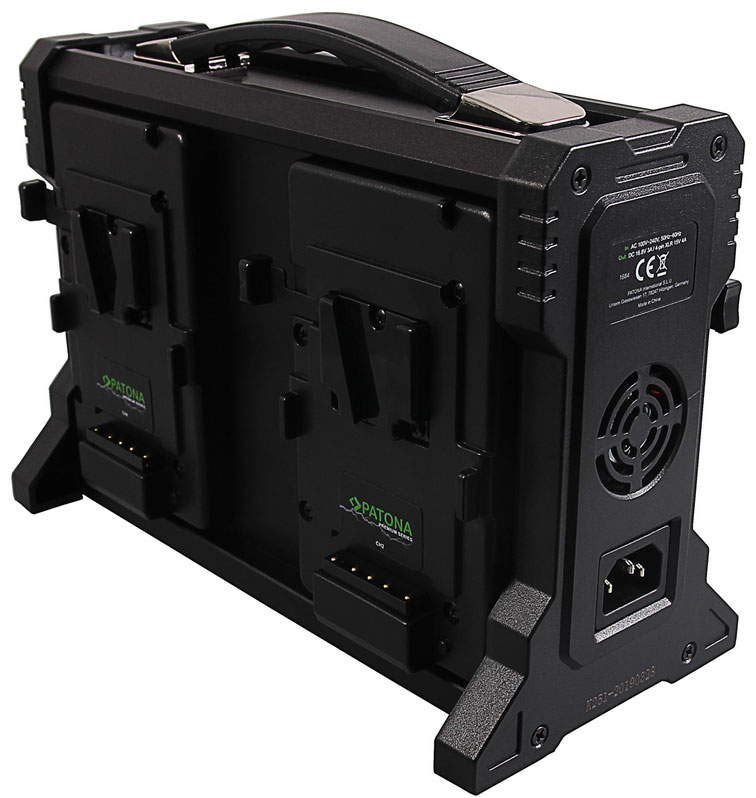

PATONA 4 position V-Mount charger

PATONA 4 position V-Mount charger

With this parallel charger you can charge up to 4 V-Mount batteries (with 3 Ampere each) at the same time. Furthermore, it can be used in power supply mode with devices to 60 Watts. The charger has a strong outer material made of black painted metal as well as a practical carrying handle.

On top of that, into the front is a XLR 4-pin DC Power output integrated. Through this one, the charger can also be used as power supply for LED lights, camcorders or monitors. Other devices can also be operated with it, provided that these are working with a voltage of 15 volts and a maximum power of 4 amps. This power supply function is activated with a three-way toggle switch. In power supply mode, the adoption of the charging function is unfortunately not possible.

In contrast of a sequential charger, the parallel charger has great advantages in sophisticated film productions. You can have lunch for an hour, while you're charging all four PATONA V95 V-Mount batteries at the same time comfortably. All four charged batteries reach a capacity about 50% during this time. With a sequential charger, only one of the four batteries would be charged to 50%. The three others would have not received any charge. Of course, this do not happen without a power loss. This is conducted as warm air through a fan from the charger.

Technical Data

Input: AC 100V-240V 50/60Hz
Output: DC 15V / 4A (4 Pin XLR-Anschluss)
Output: 16,8V / 3A
Weight: 2,7kg
gold-plated contacts
charge indicator

In the box

4-fold V-Mount charger
1x mains cable EU / UK
1x 4 Pin XLR cable
