BLUESHAPE MVQUICK V-Mount Hot Swap Adapter
PLNÂ 1,970.46*
net: PLNÂ 1,602.00
BLUESHAPE MVQUICK
V-Mount Hot Swap Adapter
MVQUICK is a hot swap system to be installed as a battery interface between the camera (or any other V-lock compatible device) and the battery pack. The main purpose is to allow camera battery replacement without any power interruption through an automatic detection of the battery removal.
Additionally,  BLUESHAPE MVQUICK provides an alternative power source of about 21Wh to be used as UPS in case of a sudden power failure or extended power requirements.
MVQUICK Features
About up to 10~15 minutes runtime when used standalone as an UPS backup batteryInstallable on any V-Lock enabled deviceSelf charging through the installed battery, can be charged also on any V-Lock chargersAllow data communication from battery to cameraNEW: enhanced contact protection for safer air transport
Technical data
Nominal Voltage 14.8VVoltage range 10.8V ~ 16.8VNominal Capacity 1.5Ah, 21WhMax. discharge current 10ASize 142 mm 83 mm x 50mmWeight 0.49Kg1. LED indicators showing state of charge of internal battery2. Push button for capacity check3. Installation interface for external V-Lock battery4. Output connector (power outlet, to camera)5. Data communication selector to enable or disable battery communication to camera6. D-Tap auxiliary connector7. V-Lock interface for MVQUICK installation

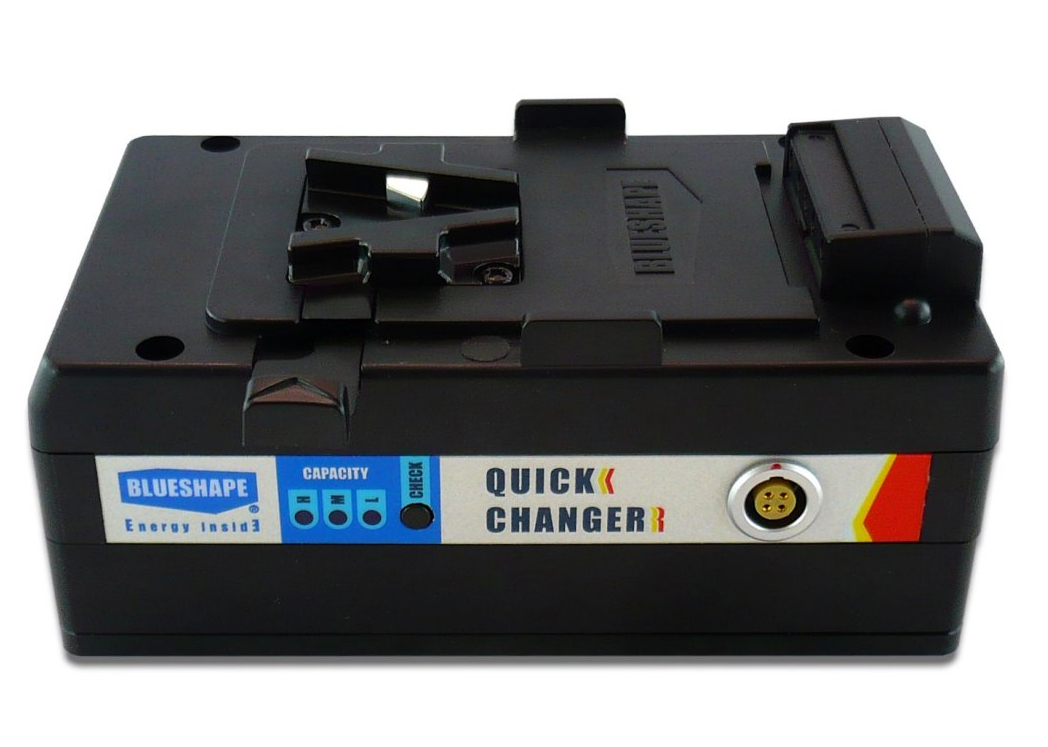

BlueShape MVQUICKAL Battery Hot Swap system for ARRI ALEXA
PLNÂ 4,324.07*
net: PLNÂ 3,515.50
BlueShape MVQUICKAL
Battery Hot Swap system for ARRI ALEXA
MVQUICKAL is a hot-swapping and digital communications interface, with the same features of MVQUICK, to be installed permanently on the back of ALEXA.
The main purpose of this device is to allow battery replacement without power interruption to the camera through an automatic detection of the battery removal.
Best used with BLUESHAPE V-lock batteries, it acts as a digital communication interface allowing direct communication of the battery runtime parameters to the LCD and viewfinder.
Additionally, BlueShape MVQUICKAL provides an alternative power source of about 21Wh to be used as UPS in case of a sudden power failure or extended power requirements.
MVQUICKAL Specifications
About up to 8~10 minutes runtime when used standalone as an UPS backup batteryInstallable on the back side of ALEXA®Self charging through the installed battery, can be charged with a separate charging unitAllow data communication from battery to camera: the state of charge is displayed to the userNEW: enhanced contact protection for safer air transport
In the box
1 x MVQUICKAL1 x ACDC Charging Unit1 x Screw set
Technical data
Nominal Voltage 14.8VVoltage range 10.8V ~ 16.8VNominal Capacity 1.5Ah, 21WhMax. discharge current 10ASize 142 mm x 83 mm x 55mmWeight 0.55Kg1. LED indicators showing state of charge of internal battery2. Push button for capacity check3. Installation interface for external V-Lock battery4. Charging socket. Plug the charger here to apply the first full charge session5. D-Tap auxiliary connector6. Installation side to back of the camera7. Special spring loaded output connector (power and data outlet to camera)8. Screw pattern for installation on back of ALEXA
