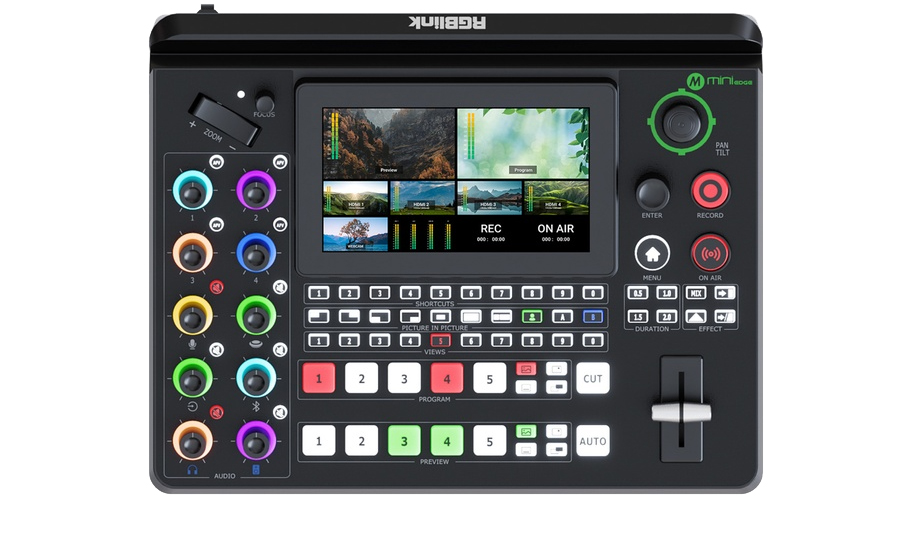

RGBlink Mini Edge Production Mixer

RGBlink Mini Edge

SKU: MINIEDG

RGBlink Mini Edge is a controllable live broadcast recording and directing station with 5 video inputs, 8 audio inputs and multiple output interfaces, supporting multi-layer and mixing control. It is not only suitable for multi-platform live broadcasts and remote audio and video conferencing, but can also be used for various live events such as stages, education, press conferences, and sports games, while providing high-quality functions. while having excellent cost performance. The onboard 5.5-inch HD full-color screen monitors all input channels and output images in real time. Full-featured keyboard, fast control of any function.

Integrated PTZ Camera Control

Forget about having multiple separate control panels for video and camera control. mini-edge brings it altogether, supporting industry standard VISCA protocol for PTZ control directly from the mixer. Control up to four separate cameras with pan, tilt, zoom and focus.

Precise Fingertip Control

Integrated joystick provides tactile control for each PTZ camera. Used together toggle, pan, tilt, zoom and focus from the front panel. Joystick and toggle are additionally dynamically assigned to settings including scale, position and crop for enhanced useability.

One-Click Chroma Key

Enable presenters to be in virtual studios and environments with Chroma Key. Select from standard key colours and enable Chroma Key directly on mini-edge without the need for an app. Refine colour selection and tolerances from the touch screen to optimise.

  • Built-in 5.5 inch LCD screen

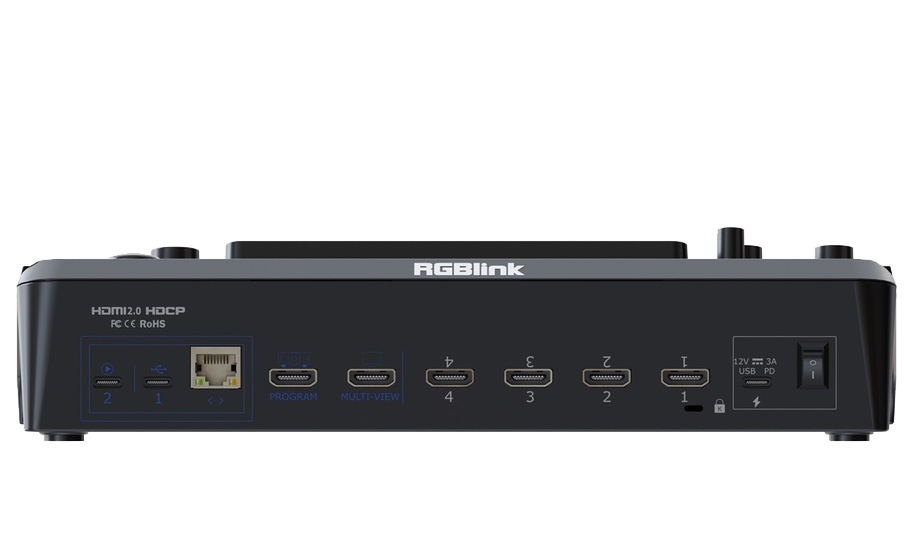

  • Quad HDMI 2.0 inputs (HDCP), resolution up to 4K@60
  • One USB (UVC) input supports camera source from RGBlink vue PTZ and webCAM
  • Dual HDMI 1.3 outputs for monitoring of multi-window PVW, PGM or AUX
  • Eight audio inputs with Four HDMI 2.0 embedded audio inputs and Four external audio inputs (one MIC, one LINE, one Bluetooth and one Type-C digital audio)
  • Dual audio out jacks for listening
  • Eight audio inputs allow for output of mixed audio across one or all available channels
  • Web control and monitoring, compatible with mobile devices and computers, compatible with multiple operating systems
  • Simultaneous streaming to 4 live streaming platforms via RTMP(S)
  • Support multi-layer overlay, layer scaling and cropping
  • 17 switching effect modes
  • 5-direction joystick for controlling up to 4 PTZ cameras
  • Support Chroma Key
  • One-key recording. Recording capacity of hard drive is up to 2T
  • Save up to 10 scene presets and thumbnails for real-time full preview
  • 5G/4G Smartphone Tethering for iOS and Android system
  • Air cooling design to ensure 24/7 stable operation
