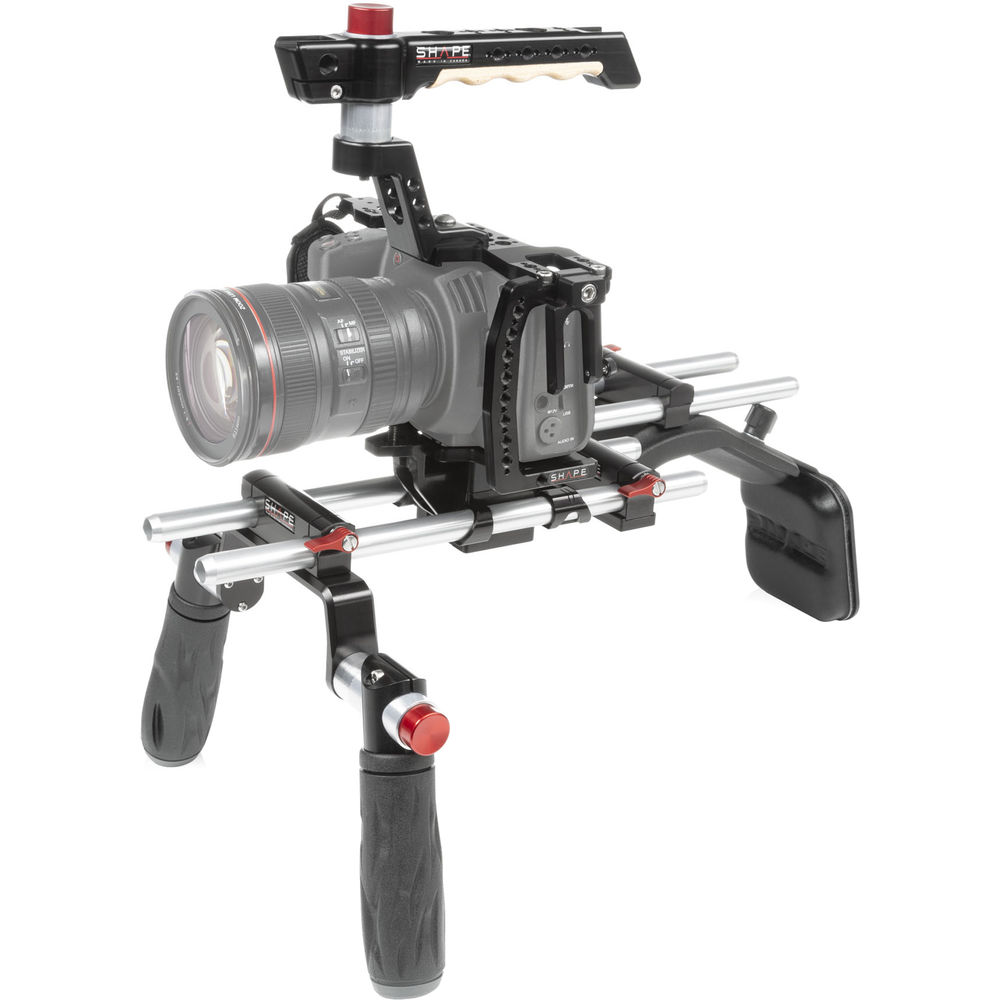

SHAPE Blackmagic Pocket Cinema 4K Offset Shoulder Mount

SHAPE Blackmagic Pocket Cinema 4K Offset Shoulder Mount

SKU: BM4KSMOF

SHAPE BLACKMAGIC POCKET CINEMA 4K OFFSET SHOULDER MOUNT MADE IN CANADA WITH CNC MACHINED ALUMINUM designed for Blackmagic Pocket Cinema Camera 4K

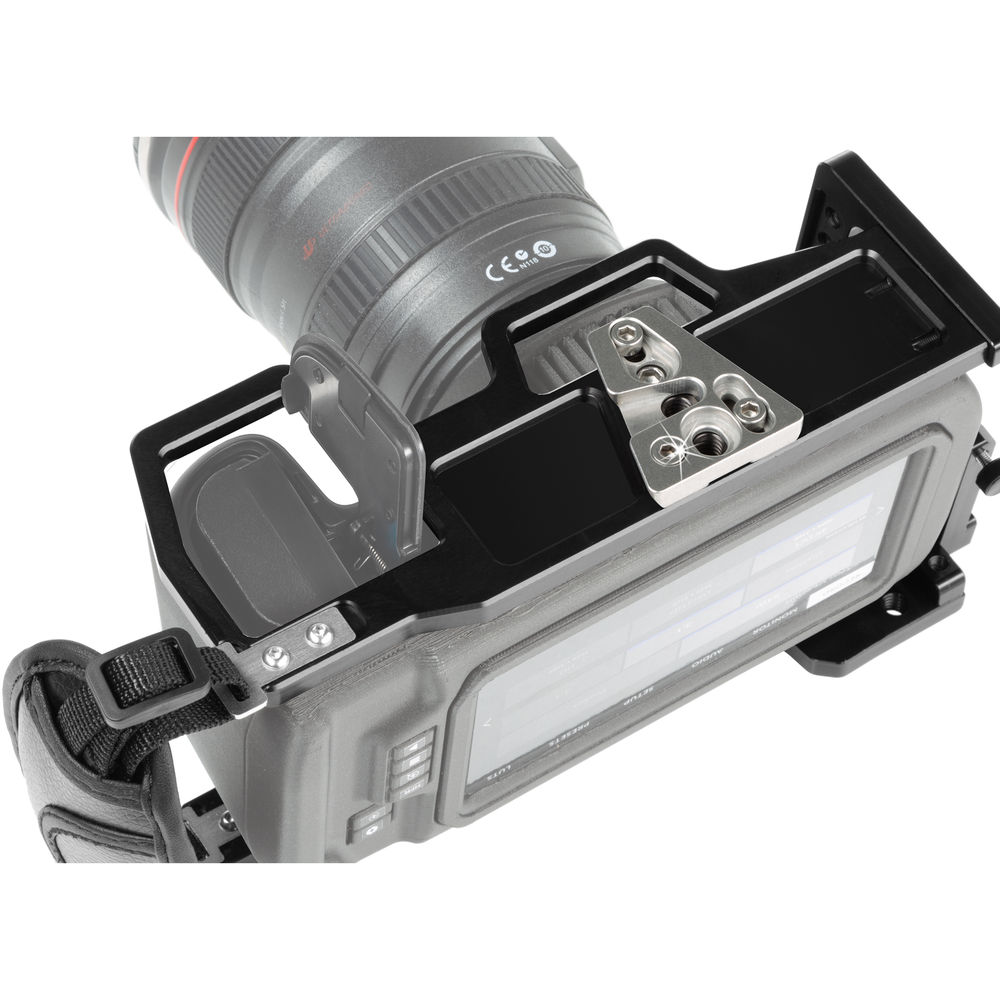

Cage

• Made of CNC Machined Aluminum
• Top and bottom of the cage are designed with 1/4-20 threaded holes with anti rotating pins to strongly secure the camera position
• 1/4-20 threaded holes for easy tripod plate attachment
• Easy access to the memory card, the battery door, the lens release button and all other controls and outputs
• Cage is designed with a full-sized HDMI cable protector lock on the side to secure the use of your HDMI 4K cable
• Right side of the cage is designed to let you grasp and feel the camera, while the included strap firmly keeps your hand against the camera
• Lightweight and robust, easy to assemble and disassemble

Cage’s Mounting option

Cold shoe at the top of the cage to mount accessories like a microphone, Magic Arm (RPB2AHS),  or LED
The cage also features several 1/4-20 and 3/8-16 threaded holes with anti-rotating pin for additional mounting options

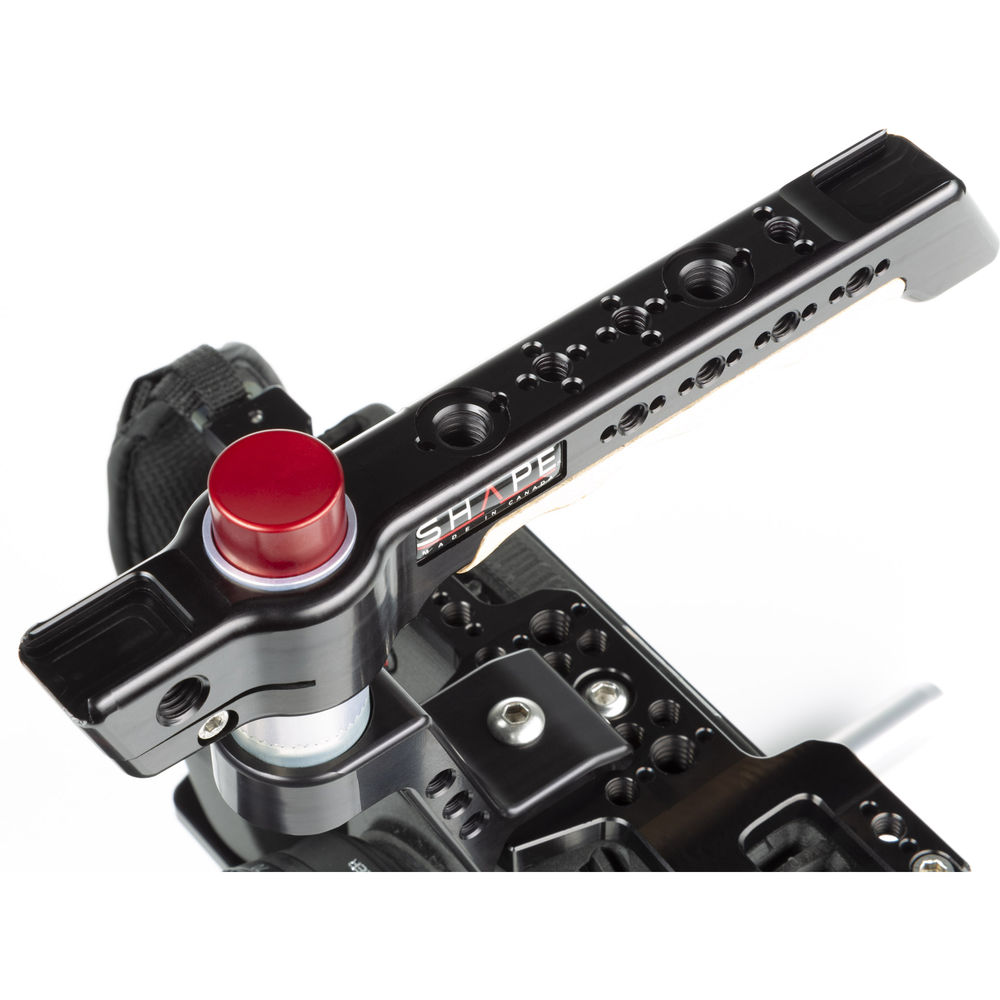

Removable, ergonomic and robust REVOLT Top Handle with our patented Push-Button technology for fast adjustment

Made of CNC Machined Aluminum and genuine Canadian maple wood for maximum comfort
Quickly and strongly attach the Top Handle to the camera cage with the cold shoe attachment system
Designed to give you a solid and comfortable grip on your camera

Top Handle’s Mounting option

EVF Mount.  Perfect to attach our 15 mm Rod Clamp(15CTH) and our ‘Push Button Arm View Finder Bracket’
(15) Fifteen 1/4-20 threaded holes with stoppers. Perfect to strongly attach more camera accessories
Two Cold Shoe Brackets (Front and Back of Handle

Quick release BasePlate

The Quick Release Plate can be used as a table stand or can be attached to a tripod

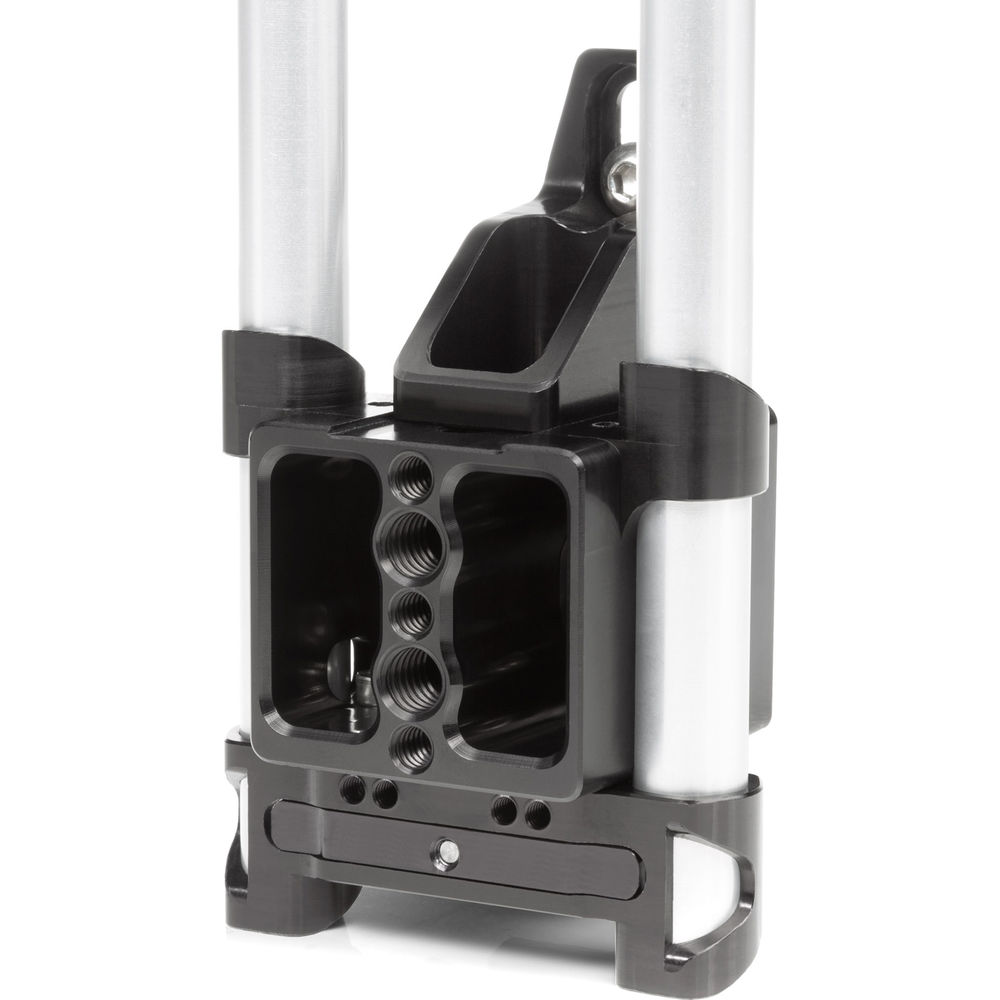

Adjustable Rod Bloc System for a better adjustment of your camera optical center

The rod bloc travel height is adjustable with the help of an Allan Key for an optimal adjustment of your camera optical center, your Matt Box and your Follow Focus
Bottom of the base block designed with a removable Metabones® Support Bracket perfect to support heavier lens
If no Metabones® adapter, simply remove  slide the bracket from under the cage with the ¼-20 screw

Offset Rail Rod Bloc

Made of aluminum, the SHAPE Offset Rail Rod Bloc features two rod blocs, enabling you to slide the rods from left to right on a lateral sliding adjustment of 1- 3/4"

SHAPE 15mm Rods

This pair of 15mm 10"-long rods enables you to use available rod mounted accessories. This pair of 15mm 12"-long rods connects into your camera rig, it extends its length, and lets you add various SHAPE and third-party accessories compatible with 15mm rods.The rods are hollow, non-threaded, and made of reliable aluminum coated with a clear finish.

Quick Handle ROD BLOC SYSTEM WITH PUSH BUTTON

• CNC machined parts and hard anodized aluminum for resistance
• Compatible with 15mm rods
• Single red knob for fast & easy adjustment
• Support quick release handgrips, 3 points of adjustment
• Ergonomic handles with rubber handgrips for stability and precision
• Patented push-button technology for fast adjustment
• Individual rotation on a 360° axis
• Stainless steel locking mechanism for durability

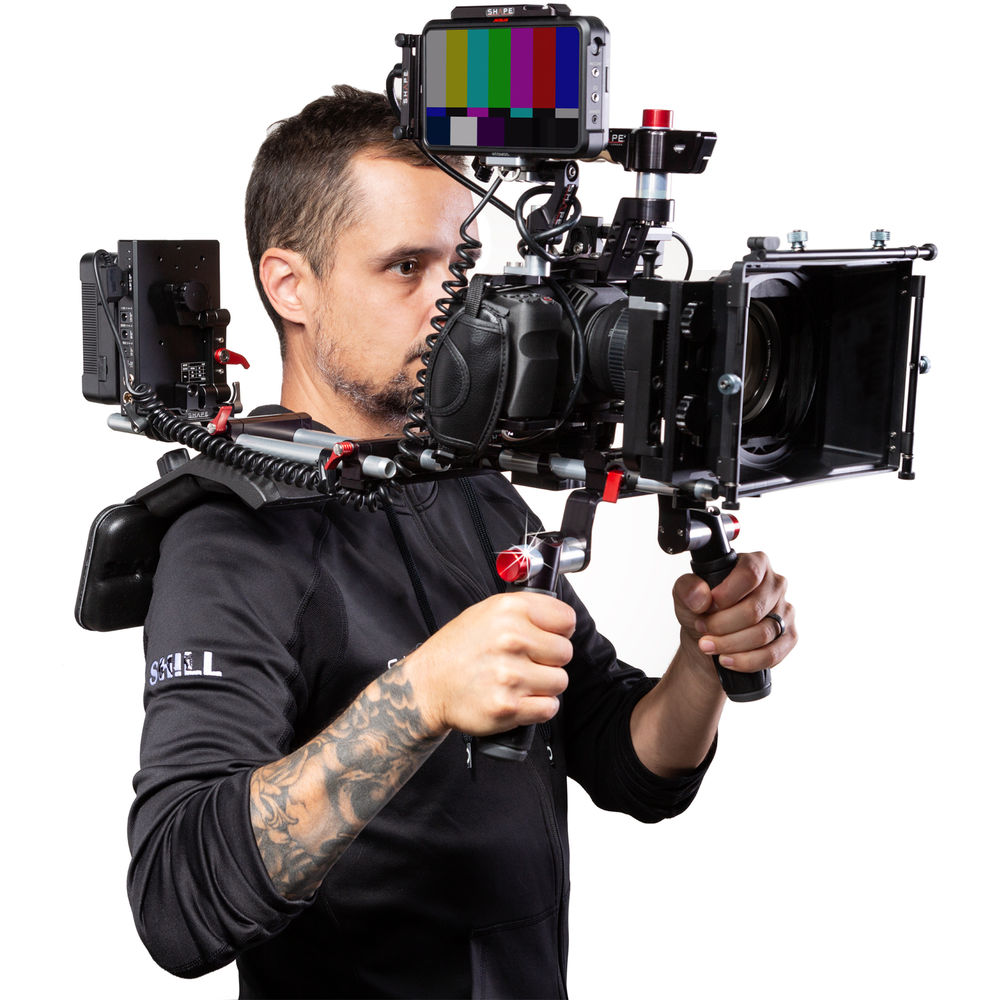

Padded Shoulder Mount for Superior Comfort

• CNC machined parts; Stainless steel screw; Black Powder Coat Paint
• Mini composite shoulder pad and a padded back pad for a comfortable and stable position while shooting
• Helps your body support the weight of the camera and its accessories
• Sliding Rod block on the top is used to hold 15mm rods
• Single red knob for fast & easy adjustment
• Threaded hole at the back (1/4-20 to attach a BASE COUNTER WEIGHT to the rear of the same rods)

Technical data

• MATERIALS: CNC Machined Aluminum
• PRODUCT DIMENSIONS (W-H-L): 44.81 cm x 29.79 cm x 58.80 cm
• PRODUCT WEIGHT: 3.33 kg

WHAT'S IN THE BOX

• 1 x CAGE FOR BLACKMAGIC POCKET CINEMA CAMERA 4K (CBM4K)
• 1 x TOP HANDLE WITH PUSH-BUTTON
• 1 x 15MM LW QUICK RELEASE ROD BASE SYSTEM
• 1 x OFFSET RAIL 15MM ROD BLOC
• 1 x 15MM RODS 10"
• 1 x 15MM RODS 12"
• 1 x PAIR OF QUICK HANDLE WITH PUSH-BUTTON (HAND5)
• 1 x SHOULDER MOUNT (SHPAD3)
• 1 x BACK PAD (PAD1)
