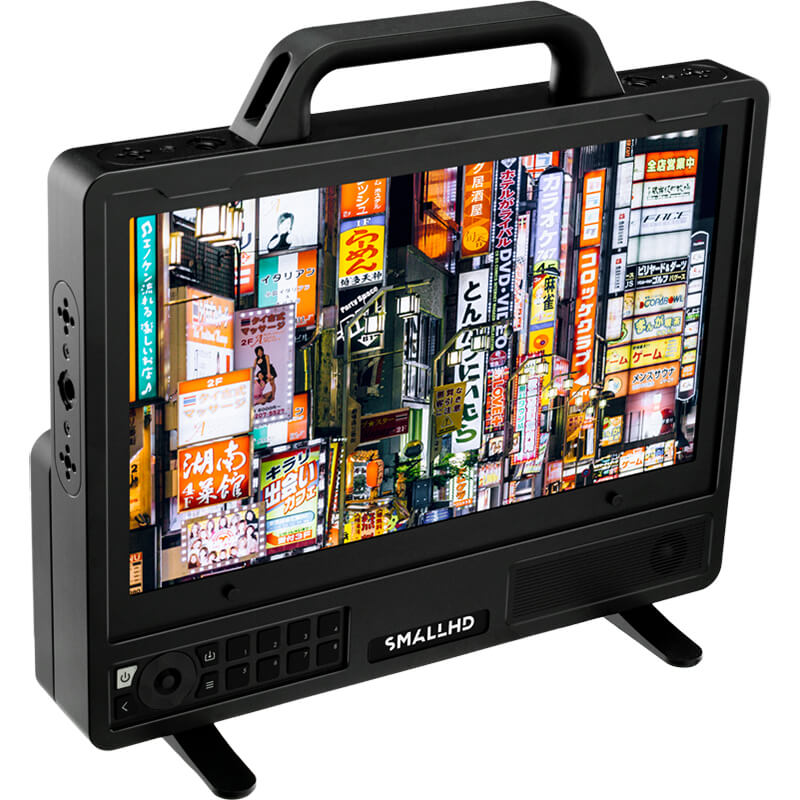

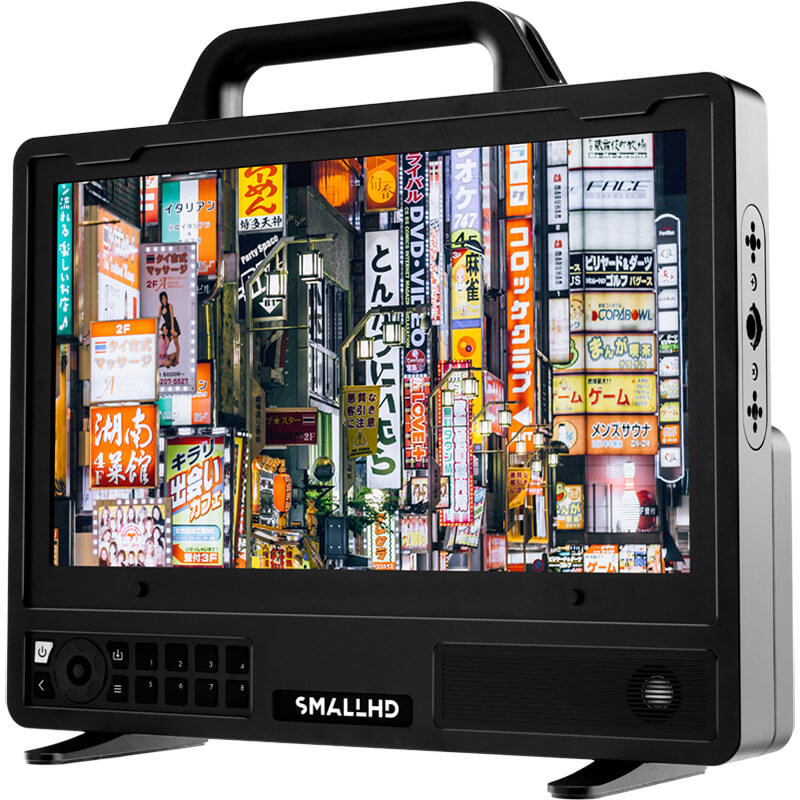

smallHD Cine 13

smallHD Cine 13

13" 4K High-Bright Production Monitor

Cine 13 is SmallHD’s most agile, bright, and pixel-dense 4K production monitor yet. Low-profile in design, this portable field companion can be rigged in almost any situation. With brilliant daylight visibility and full 4K clarity, smallHD Cine 13 is built for those on-set creatives who require critical focusing capability for non-stop monitoring. A stunning 338 PPI display weighing in at only 3.09kg

  • Display: 13"3840 x 2160
  • Backlight Type: LCD
  • Display: 13-inch, 3840x2160, 1500nits

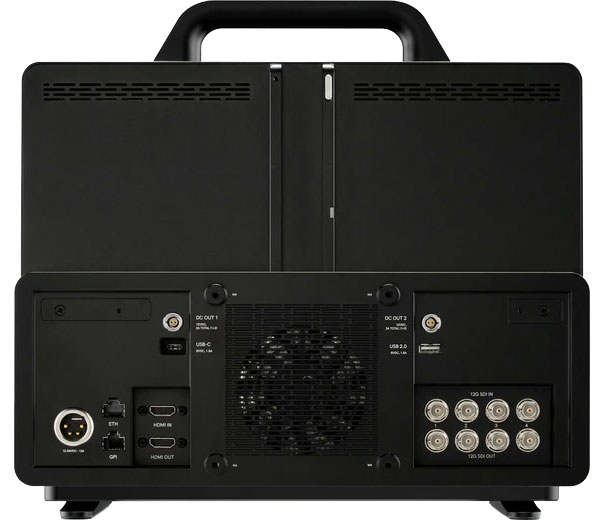

  • SDI: 4x 12G-SDI in, 4x 12G-SDI out
  • HDMI: 1x HDMI 2.0 in, 1x HDMI 2.0 out
  • Power Input: 1x 4-pin XLR

Small4K™ Video Processing Architecture

  • Inputs: 4x 12G-SDI , 1x HDMI 2.0
  • Outputs: 4x 12G-SDI, 1x HDMI 2.0

Unibody Smart Chassis

  • Smartrail for battery and accessory mounting
  • 2x 2-pin accessory power outputs
  • Lower mounting rail included for ultimate flexibility

PageOS 4 Software Platform

  • 4K HDR waveform and scopes
  • Dual & Quad-View*
  • Colour Pipe HDR color rendering
  • Monitor Calibration Wizard

Power

  • Hot-swappable dual inputs
  • 1x 4-pin XLR input
  • 1x Dual-GM/VM Battery Plate (sold separately)

Technical data

Environmental

  • Item Weight:3.09kg
  • Height: 25,65 cm (w/out feet and handle) 31,50 cm (w/ feet and handle)
  • Width: 33,53 cm (w/out feet and handle) 33,53 cm (w/ feet and handle)
  • Length/Depth: 5,84 cm (w/out feet and handle) 11,94 (w/ feet and handle)
  • Compliance: FCC, IC, CE, RoHS, SRRC, MIC
  • Operating Temperature: +0 C - +34 C
  • Storage Temperature: -16 C - +36,5 C
  • Screen Protection: Basic and Hardened
  • Mount Points: Interchangeable accessory mount plates on top and sides with multiple ¼”-20 and/or ⅜”-16 options
  • Construction: Anodized aluminum chassis with plastic accents

Display

  • Diagonal Size: 13.3
  • Resolution: 3840x2160
  • Max Brightness: 1500nits
  • Contrast: 1300:1
  • Color Depth: 10-bit (8+2)
  • Backlight Type: Edgelit
  • Refresh Rate: Synchronizes with input from 48Hz to 60Hz

Input Signal

  • 3G-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98
  • 6G-SDI Input Types: YCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95
  • 12G-SDI Input Types: YCC 4:2:2 @ 10 bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:2:2:4, RGB, @ 12 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98
  • HD-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
  • SD-SDI Input Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
  • HDMI Input Types: YCC 4:2:2 @ 12 bits, RGB & YCC 4:4:4 @ 8bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95 YCC 4:2:2: @ 12 bits, RGB & YCC 4:4:4 @8/10/12/16 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25

Output Signal

  • 3G-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98
  • 6G-SDI Output Types: YCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95
  • 12G-SDI Output Types: YCC 4:2:2 @ 10 bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:2:2:4, RGB, @ 12 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98
  • HD-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
  • SD-SDI Output Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
  • HDMI Output Types: YCC 4:2:2 @ 12 bits, RGB & YCC 4:4:4 @ 8bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95 YCC 4:2:2: @ 12 bits, RGB & YCC 4:4:4 @8/10/12/16 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25
  • Audio Output Types: 1x 3.5mm 3-pin Stereo Headphone Jack

Connector Type

  • Component: Not Supported
  • Composite: Not Supported
  • Audio: HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

Data I/O

  • Connector Type: 1x SD Card Slot, 1x RJ45 Ethernet, 1x RJ45 GPI

Power

  • Input: 1x XLR 4-pin 12 - 34VDC IN (210W max, 12V-34V, 18A max)
  • Output: 2x 2pin (12V / 2A combined), 1x USB-A (2.4A) (Front), 1x USB-A (1.5A) (Rear), 1x USB-C (5V / 1.5A) (Rear)
  • Consumption: 36.7w (monitor only) 117.9w (w/max access. power draw)
  • Battery Plate Included: No
  • Battery Types: 1x Dual-GM/VM Batt.Plate (14/26V) (sold as accessory)

Details of the manufacturer

  • SmallHD
  • 301 Gregson Drive Cary
  • North Carolina 27511, United States

+1 919.439.2166

https://smallhd.com/pages/contact-us

Details of the person responsible for putting the product on the European market

  • New Media AV Bauer und Trummer GmbH
  • Johannes Bauer
  • Pirnaer Straße 20
  • 90411 Nürnberg, Germany

+49 911 5399-60

team@nmav.de
