smallRig x Caleb Pike VB212 mini V Mount Battery 4293

smallRig x Caleb Pike VB212 mini V Mount Battery

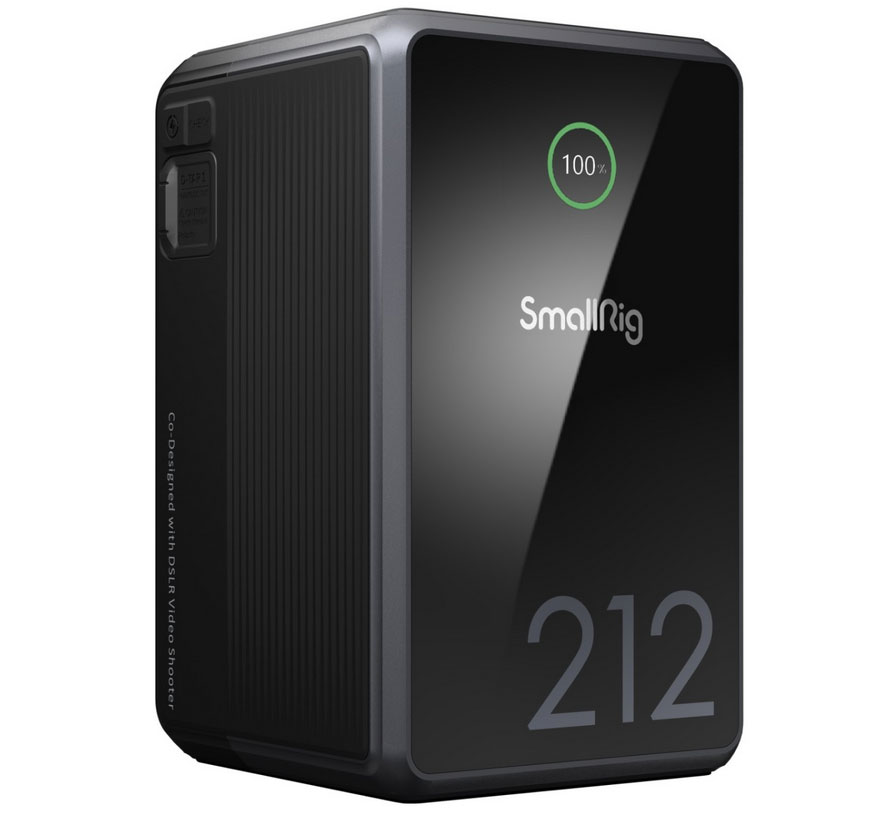

SmallRig x Caleb Pike VB212 mini V Mount Battery 4293 adopts a highly integrated design, reducing the battery size and making it lighter and more portable. The battery combines fast-charging protocol chips, MCU, voltage control, and BMS chips. It supports a wide range of fast charging protocols (PD 3.1 / QC 3.0 / AFC, etc.), Two-way PD fast charging and discharging 140W (Max), and adaptive voltage / current regulation, etc.

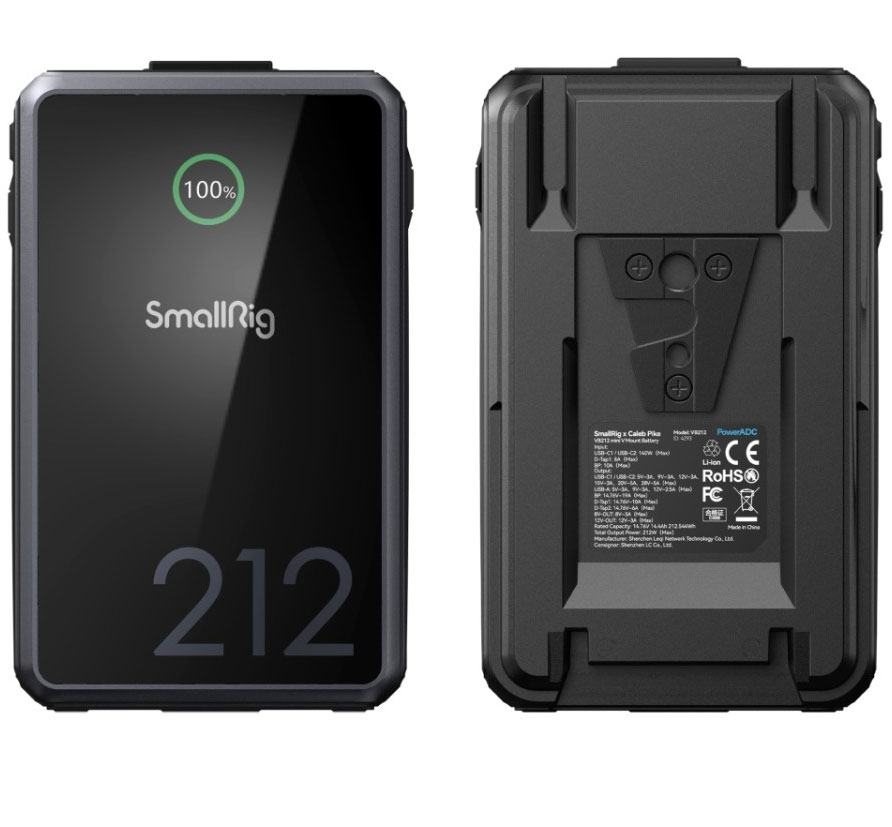

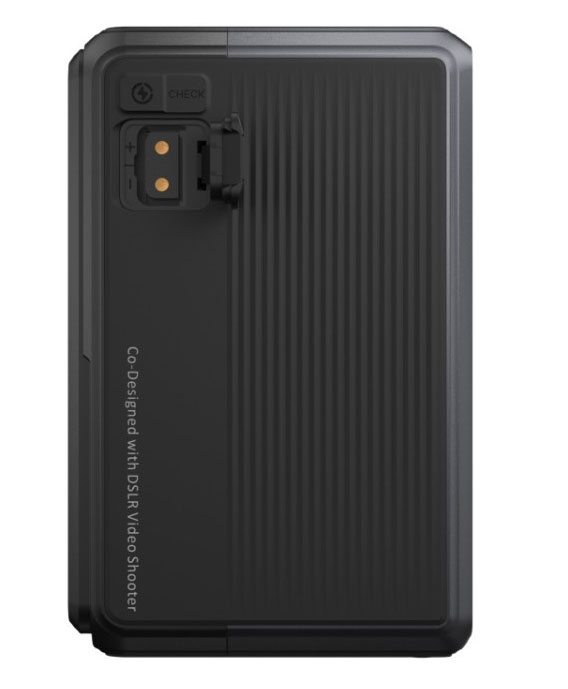

In addition, its customized intelligent BMS system ensures faster and safer charging by providing overcurrent / short circuit / overtemperature / overvoltage protection, etc. The battery body is equipped with D-Tap / USB-C / USB-A / DC 8V-OUT / DC12V-OUT / BP interfaces, which can charge or power camera / video camera / monitor / wireless image transmitter / LED video light / mobile phone / laptop etc., without using any V-mount plates.

• Intelligent BMS chip supports 140W (Max.) fast charging, fully charged in 2.5 hours
• Imported top-class large-capacity LG battery cell endures repeated charging and discharging, safe and stable
• Highly integrated design, ultracompact and travel-friendly

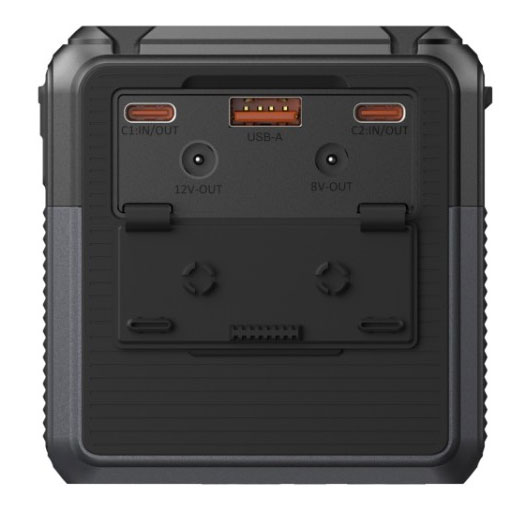

• Multiple interfaces: two USB-C ports, two D-Tap ports, one USB-A port, DC 8V-OUT, DC12V-OUT. Each interface adopts a parallel circuit to allow simultaneous USB-C and USB-A fast charging
• Aluminum alloy, silicone, TPU, and PC V0 materials; four layers of aluminum frames on the inside with silicone coating on the outside, make the battery robust, drop-proof, heat-resistant, and flame-retardant
• Durable, scratch-resistant PC and acrylic front cover
• TFT display shows battery status clearly and accurately
• The accurately designed cover and well-positioned grooves allow for easy and convenient operation

Technical data

• Product Dimensions: 132.1 x 82.7 x 79.3mm
• Package Dimensions: 166 x 130.5 x 99mm
• Product Weight (Including Charging Cable): 1345 ± 10.0g
• Package Weight: 1643 ± 10.0g
• Material(s): Aluminum Alloy, Silicone, TPU, PC V0
• Capacity: 14.76V 14.4Ah 212.544Wh
• Output: 212W =Input: 140W

Input

• USB-C1 / USB-C2: 140W (Max.)
• D-Tap1: 8A (Max.)
• BP: 10A (Max.)

Output

• USB-C1 / USB-C2: 5V / 3A, 9V / 3A, 12V / 3A, 15V / 3A, 20V / 5A, 28V / 5A (Max.)
• USB-A: 5V / 3A, 9V / 3A, 12V / 2.5A (Max.)
• BP: 14.76V / 19A (Max.)
• D-Tap1: 14.76V / 10A (Max.)
• D-Tap2: 14.76V / 6A (Max.)
• 8V-OUT: 8V / 3A (Max.)
• 12V-OUT: 12V / 3A (Max.)

Charging Protocol

• USB-C1 / USB-C2: PD3.1 / QC2.0 / QC3.0 / PPS / AFC / DCP-1.5A / APPLE-2.4A
• USB-A: QC2.0 / QC3.0 / AFC/ DCP-1.5A / APPLE-2.4A
• Cutoff Voltage: 11.2V
• Operating Temperature: -15℃～60℃
• Charging Temperature: 0℃～50℃
• Optional Charging Method: BP port charger, 16.8V D-Tap charger, USB-C
