TVLogic LUM-181G
Free shipping
Tip
PLN 20,771.93*
net: PLN 16,887.75
Free shipping
Available, delivery time: 1-3 days
Product number:
SW25506
TVLogic LUM-181G

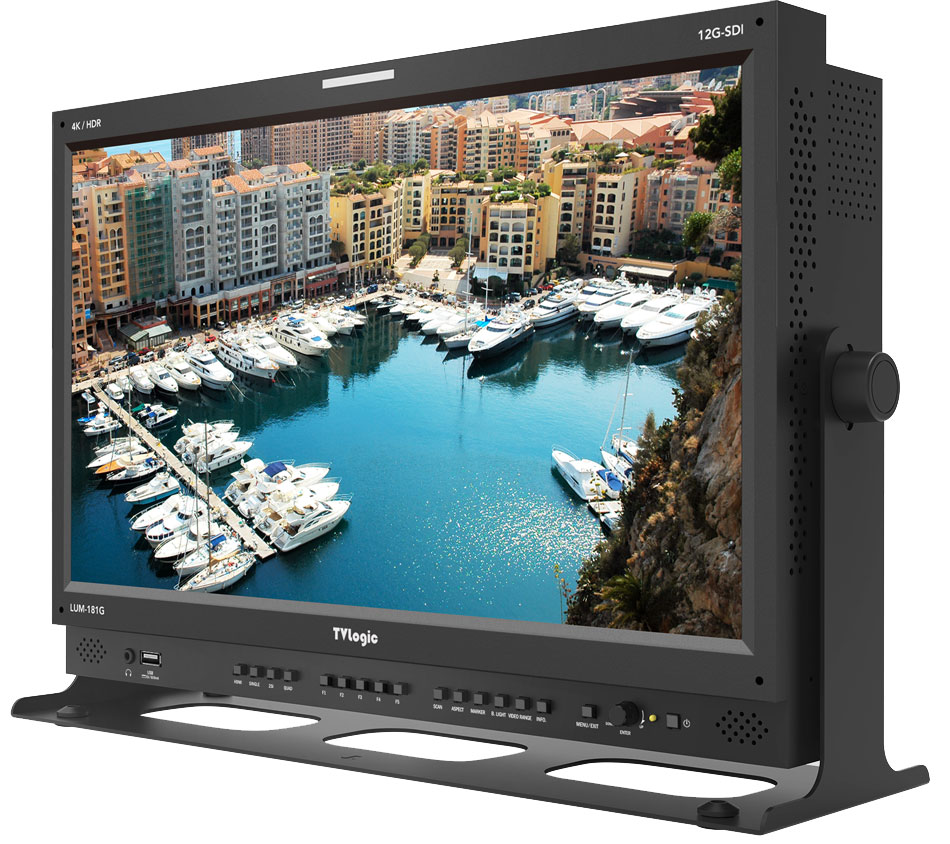

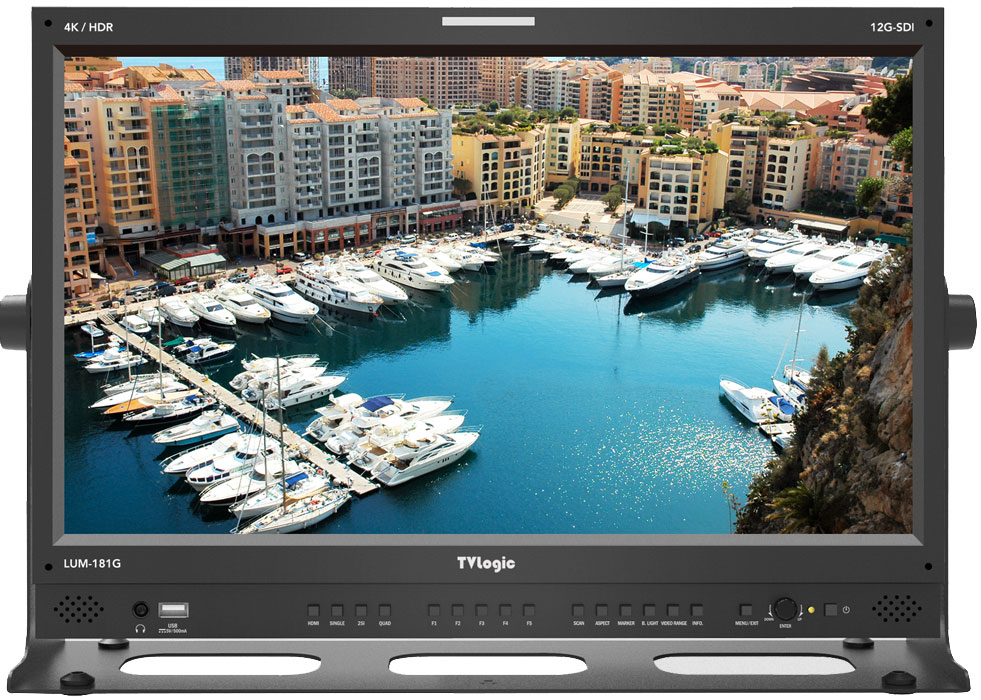

TVLogic LUM-181G is 18.5" 4K/UHD Ready HDR Emulation LCD Monitor
The new LUM-181G monitor supports 3G/6G/12G-SDI input with a native 1920 x 1080 LCD with SD/HD/UHD/4K input support, this monitor can be anywhere including field production applications. Product Highlights
- 18.5" FHD Panel + 4K Interface
- HDR Emulation (PQ, HLG)
- 12G-SDI Single Link 4K/UHD
- 3G-SDI Quad-Link Square Division & 2-S.I. 4K/UHD
- Waveform / Vectorscope
- 16ch Audio Level Meter
- UMD Display
- Various Aspect
- Luma(Y’) Zone Check
- Tally
- Range Error
- Closed Caption (CC-608, CC-708)
- H/V Delay
- Blue/Mono Only
- Marker
- Timecode Display
- UMD Display
- Focus Assist
Technical data
- Size: 18.5"
- Resolution: 1920 x 1080 (16:9)
- Pixel Pitch: 0.213(H) x 0.213(V) mm
- Color Depth: 16.7M Colors (True 8 bit)
- Viewing Angle: 178˚(H)/178˚(V)
- Luminance of white: 500nits
- Contrast Ratio: 1000:1
- Display Area: 408.96(H) x 230.04(V) mm
Input
- 1 x HDMI - HDMI(2.0) Input
- 4 x BNC - 12G/6G/3G/HD-SDI A/B, 3G/HD-SDI C/D Channel Input
Output
- 4 x BNC - 12G/6G/3G/HD-SDI A/B, 3G/HD-SDI C/D Channel (Active Through Out)
Input Signal
- 12G-SDI - 12Gb/s
- 6G-SDI - 6Gb/s
- 3G-SDI - 2.970Gb/s
- HD-SDI - 1.485Gb/s, HDMI 2160p(60)/1080p(60)/1080i(60)/720p(60)/ 480i(60)/480p(60)/576i(50)/576p(50)
- Audio In: Embedded Audio / Analog Stereo (Phone Jack)
- Audio Out: Internal Speaker(Stereo) / Analog Stereo(Phone Jack)
- Power: DC 12V /24V / AC 100~240V(50~60Hz)
- Power Consumption (Approx.): TBD
- Included Accessories AC Power Cord, Table Stand, Control Knob Cap, Carry Handle
