TVLogic LUM-181H
Free shipping
Tip
Product number:
SW25437
TVLogic LUM-181H

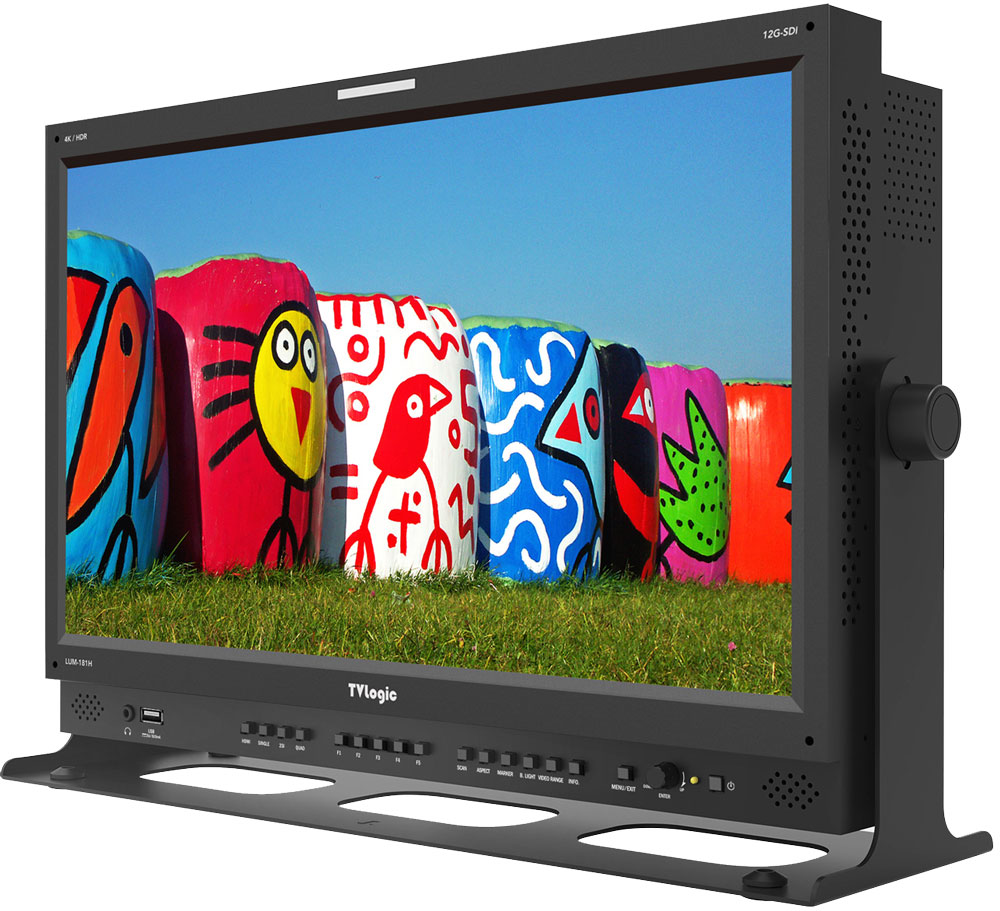

TVLogic LUM-181H is 18.4’’ 4K/UHD High Luminance HDR Emulation LCD Monitor
18-inch UHD monitor offers an outstanding picture quality with 3840x2160 resolution, high luminance up to 1,000 nits and wide viewing angle. LUM-181H provides HDR emulation function with HDR EOTFs of PQ, HLG and S-Log3. Also having fast color standard switching speed.
Features
- 18.4” True UHD Resolution (3840 × 2160)
- Peak Luminance 1,000nits
- 1.07 Billion Colors (10bit)
- 97% Coverage of DCI-P3 Color Gamut
- HDR Emulation (PQ, HLG)
- 12G-SDI Single Link 4K/UHD
- 3G-SDI Quad-Link Square Division & 2-S.I. 4K/UHD
- Marker
- Waveform / Vectorscope
- 16ch Audio Level Meter
- Focus Assist
- Timecode Display
- UMD Display
- Blue/Mono Only
- Closed Caption (CC-608, CC-708)
- Various Aspect
- Luma(Y’) Zone Check
- H/V Delay
- Range Error
- Tally
Accessory Items
Free shipping
Tip
TVLogic LUM-181G
PLN 20,771.93*
net: PLN 16,887.75
TVLogic LUM-181G
TVLogic LUM-181G is 18.5" 4K/UHD Ready HDR Emulation LCD Monitor
The new LUM-181G monitor supports 3G/6G/12G-SDI input with a native 1920 x 1080 LCD with SD/HD/UHD/4K input support, this monitor can be anywhere including field production applications. Product Highlights
18.5" FHD Panel + 4K Interface HDR Emulation (PQ, HLG) 12G-SDI Single Link 4K/UHD 3G-SDI Quad-Link Square Division & 2-S.I. 4K/UHD Waveform / Vectorscope 16ch Audio Level MeterUMD Display Various Aspect Luma(Y’) Zone Check Tally Range Error Closed Caption (CC-608, CC-708) H/V DelayBlue/Mono OnlyMarker Timecode Display UMD DisplayFocus Assist
Technical data
Size: 18.5"Resolution: 1920 x 1080 (16:9)Pixel Pitch: 0.213(H) x 0.213(V) mmColor Depth: 16.7M Colors (True 8 bit)Viewing Angle: 178˚(H)/178˚(V)Luminance of white: 500nitsContrast Ratio: 1000:1Display Area: 408.96(H) x 230.04(V) mm
Input1 x HDMI - HDMI(2.0) Input4 x BNC - 12G/6G/3G/HD-SDI A/B, 3G/HD-SDI C/D Channel Input
Output4 x BNC - 12G/6G/3G/HD-SDI A/B, 3G/HD-SDI C/D Channel (Active Through Out)
Input Signal12G-SDI - 12Gb/s6G-SDI - 6Gb/s3G-SDI - 2.970Gb/sHD-SDI - 1.485Gb/s, HDMI 2160p(60)/1080p(60)/1080i(60)/720p(60)/ 480i(60)/480p(60)/576i(50)/576p(50)
Audio In: Embedded Audio / Analog Stereo (Phone Jack)Audio Out: Internal Speaker(Stereo) / Analog Stereo(Phone Jack)Power: DC 12V /24V / AC 100~240V(50~60Hz)Power Consumption (Approx.): TBDIncluded Accessories AC Power Cord, Table Stand, Control Knob Cap, Carry Handle
