TVLogic LUM-242G
Free shipping
Tip
PLN 28,462.20*
net: PLN 23,140.00
Free shipping
Our availability in the Christmas in-between period: we will be closed from 23.12.2024. All orders placed during this period will be accepted, but shipped after 06.01.2025. We wish you a Merry Christmas and a Happy New Year.
Product number:
SW28440
Manufacturer:
TVLogic
Manufacturer product number:
LUM-242G
Delivery time:
7-14 days

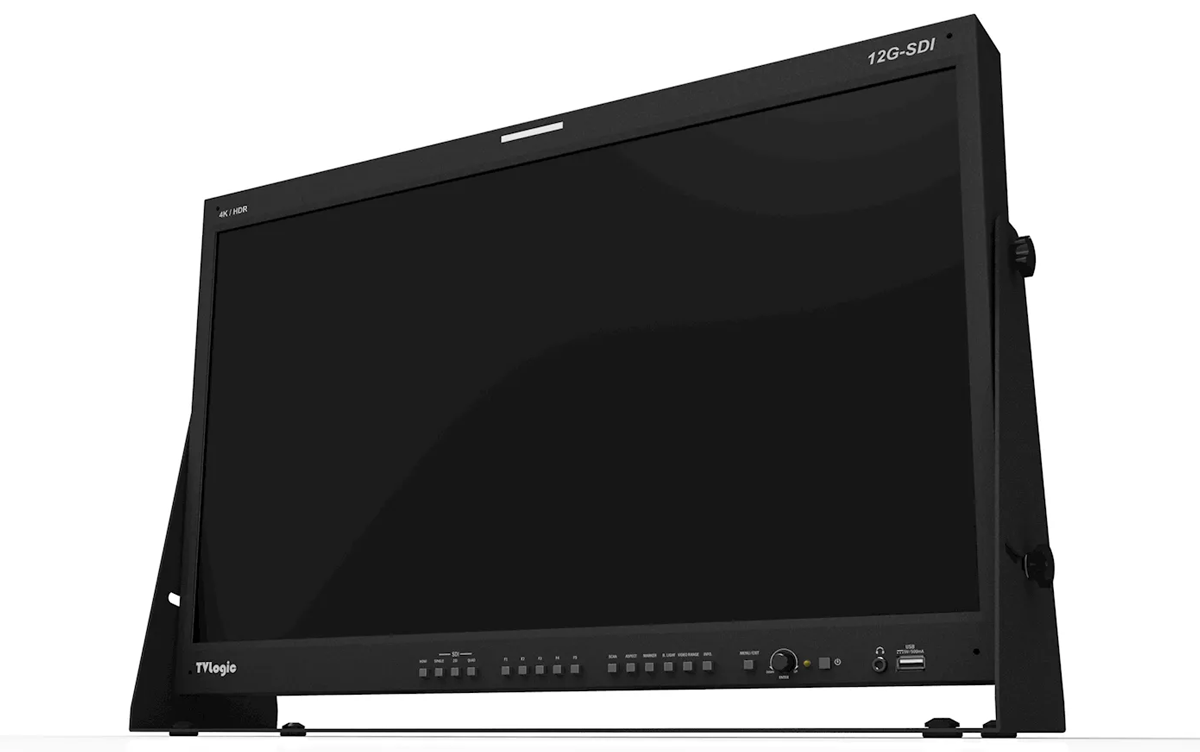

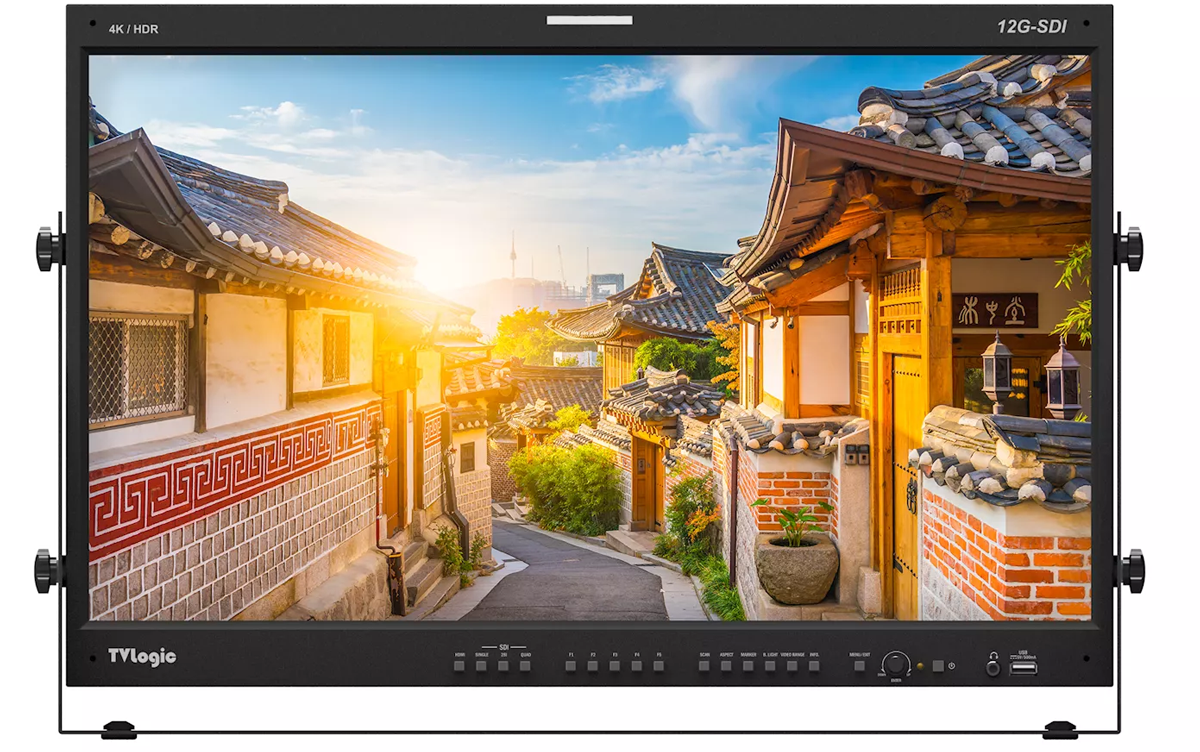

TVLogic LUM-242G
24" DCI-UHD Monitor: 3840 x 2160 10 bit IPS LCD, 1200:1 contrast ratio, 12-bit processing, 500cd/m², 98% of DCI-P3 Coverage 2x12G-SDI, 2x6G-SDI, 4x3G-SDI in/out. 1x HDMI 2.0 (4K 60p) input. Built-in 3D LUTs for Rec. 709, DCI-P3, Rec. 2020 emulation
Technical data
- Size 24"
- Resolution: 3840 x 2160 (16:9)
- Pixel Pitch: 0.137mm
- Color Depth: 1.07B (10bit)
- Viewing Angle (Typ.): 178˚(H)/178˚(V)
- Luminance (Max.): 500cd/m2
- Contrast Ratio: 1200:1
- Display Are: 526 x 296 mm

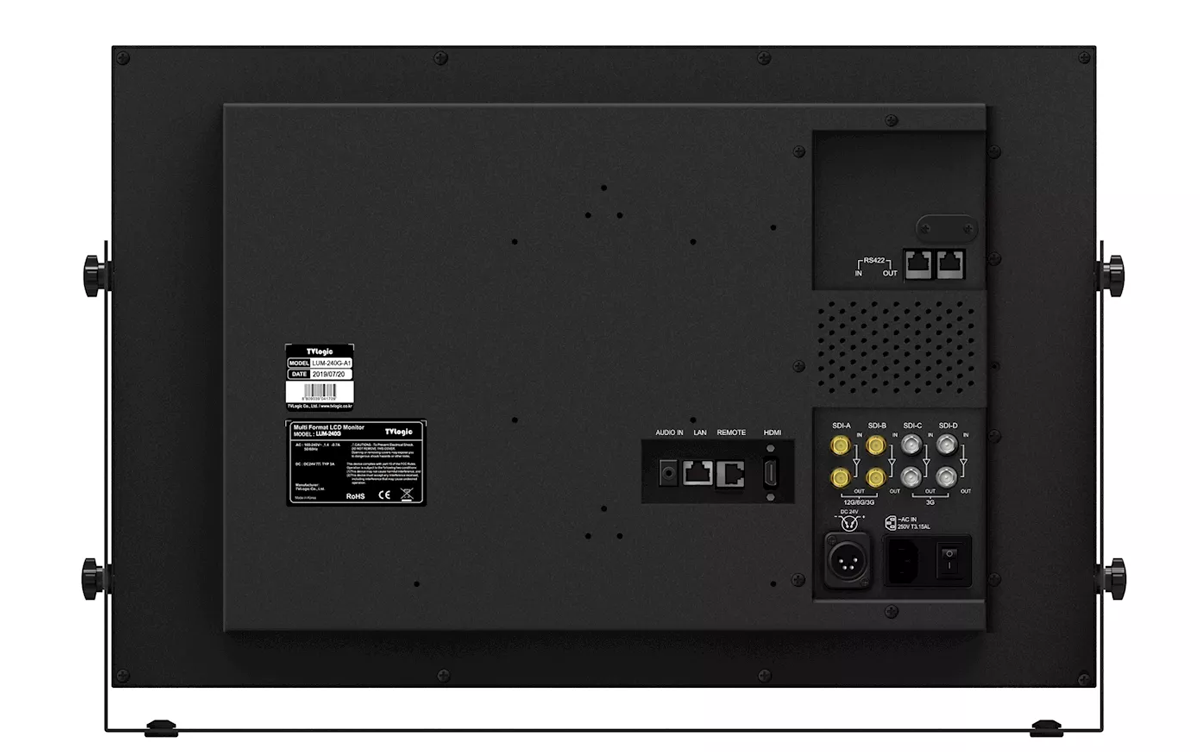

Input
- 4 x BNC: 12G-SDI A/B Channel Input, 3G-SDI C/D Channel Input
- 1 x HDMI: HDMI Input (HDMI 2.0)
Output
- 4 x BNC: 12G-SDI A/B, 3G-SDI C/D Channel (Loop Through Out)
Input Signal
- 12G-SDI: 12Gb/s
- 6G-SDI: 6Gb/s
- 3G-SDI: 2.970Gb/s
- HD-SDI: 1.485Gb/s
- HDMI: 480p / 720p / 1080p / 2160p
SDI Input Signal Formats
- SMPTE ST 2082: 3840x2160 (60/50/59.94p)
- SMPTE ST 2081: 3840x2160 (30/25/24p/23.98p/29.97p)
SMPTE-425M-A/B
- 1080p(60/59.94/50/30/29.97/25/24/23.98/
- 30sF/29.97sF/25sF/24sF/23.98sF)
- SMPTE-274M: 1080i(60/59.94/50) 1080p(30/29.97/25/24/24sF/23.98/23.8sF)
- SMPTE-296M: 720p(60/59.94/50)
- SMPTE-125M: 480i(59.94)
- ITU-R BT.656: 576i(50)
- Audio IN: Analog stereo
- Audio OUT: Analog Stereo (Phone Jack)
- Power: DC 12V /24V / AC 100~240V(50~60Hz)
- Power Consumption (Approx.): TBD
- Operating Temperature 0°C to 35°C
- Storage Temperature -20°C to 60°C
- Basic Accessory: AC Power Cable / Stand
Details of the manufacturer
- TVlogic
- 12F, ACE HIGH-END TOWER 8, 84, Gasan digital 1-ro, Geumcheon-gu, Seoul 08590, Korea
+82-70-8668-6611
Details of the person responsible for putting the product on the European market
- Aspectra B.V.
- Marc Derks
- Spoorhaven 78
- 2651 AV Berkel en Rodenrijs, The Netherlands
Related links of the manufacturer
Similar products
Free shipping
Tip
TVLogic LUM-242H
PLN 29,009.55*
net: PLN 23,585.00
TVLogic LUM-242H
The LUM-242H is a 24 inch monitor with UHD resolution (3840 x 2160), high luminance up to 1,000cd/㎡, a 10-bit color depth, high contrast ratio of 1,000 : 1 and wide viewing angle. The TVLogic LUM-242H supports various standard color gamuts including 90% DCI-P3 coverage. It supports 12G-SDI signal with 4 BNC input connectors (2 for 12G-SDI and 2 for 3G-SDI) and an HDMI 2.0 input.
24" DCI-UHD Monitor: 3840 x 2160 10bit IPS LCD, 1000:1 contrast ratio, 12-bit processing, 1000 cd/m2 90% of DCI-P3 Coverage 2x12G-SDI, 2x6G-SDI, 4x3G-SDI in/out. 1x HDMI 2.0 (4K 60p) input. Built-in 3D LUTs for Rec. 709, DCI-P3, Rec. 2020 emulation. A true HDR monitor must employ a special display panel with high dynamic range and a wide color gamut, along with being calibrated for PQ and HLG. For example, the LUM-310X (dual layer LCD system) and LUM-310R (LCD with local dimming backlight system) are capable of reproducing a peak luminance of 1,000 nit and 2,000 nit respectively, and a contrast ratio of 1,000,000 : 1; in addition, they cover 99% of the DCI color gamut.
Product Highlights
24” True UHD Resolution (3840×2160)Peak Luminance 1,000nits1.07 Billion Colors (10bit)90% Coverage of DCI-P3 Color GamutHDR (PQ, HLG)12G-SDI Single Link 4K/UHD3G-SDI Quad-Link Square Division & 2-S.I. 4K/UHDWaveform / Vectorscope16ch Audio Level MeterFocus Assist / MarkerTimecode DisplayUMD DisplayBlue/Mono OnlyVarious AspectLuma(Y’) Zone CheckClosed Caption (CC-608, CC-708)H/V DelayTally
Free shipping
Tip
TVLogic LUM-181H
PLN 32,293.65*
net: PLN 26,255.00

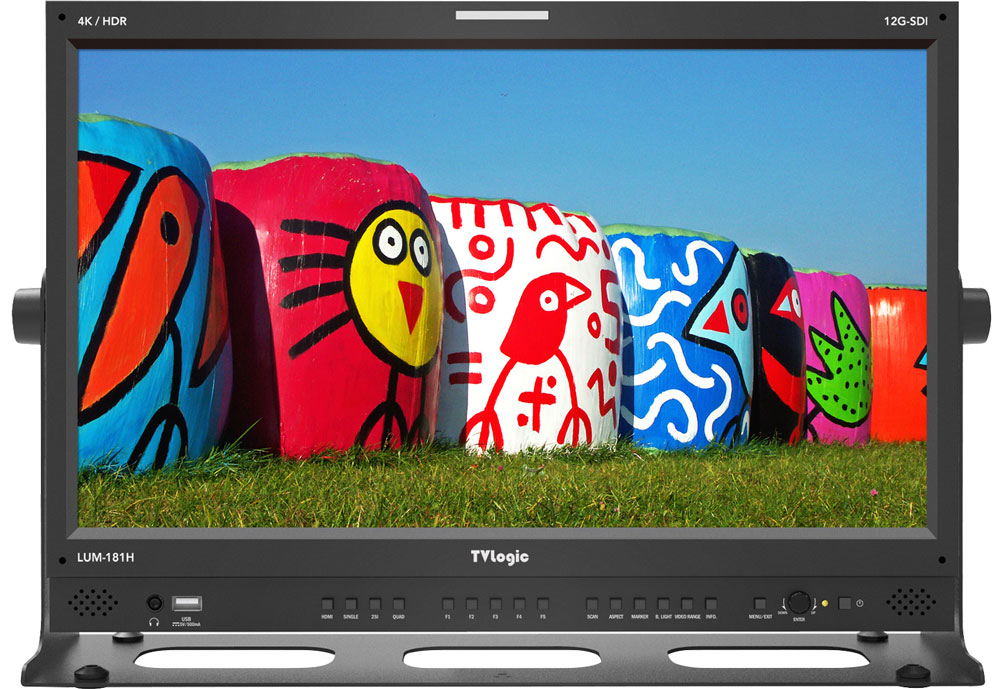

TVLogic LUM-181H
TVLogic LUM-181H is 18.4’’ 4K/UHD High Luminance HDR Emulation LCD Monitor
18-inch UHD monitor offers an outstanding picture quality with 3840x2160 resolution, high luminance up to 1,000 nits and wide viewing angle. LUM-181H provides HDR emulation function with HDR EOTFs of PQ, HLG and S-Log3. Also having fast color standard switching speed.Features
18.4” True UHD Resolution (3840 × 2160) Peak Luminance 1,000nits 1.07 Billion Colors (10bit) 97% Coverage of DCI-P3 Color Gamut HDR Emulation (PQ, HLG) 12G-SDI Single Link 4K/UHD 3G-SDI Quad-Link Square Division & 2-S.I. 4K/UHD Marker Waveform / Vectorscope 16ch Audio Level Meter Focus Assist Timecode Display UMD Display Blue/Mono Only Closed Caption (CC-608, CC-708) Various Aspect Luma(Y’) Zone CheckH/V DelayRange ErrorTally
Free shipping
Tip
TVLogic LUM-181G
PLN 20,771.93*
net: PLN 16,887.75

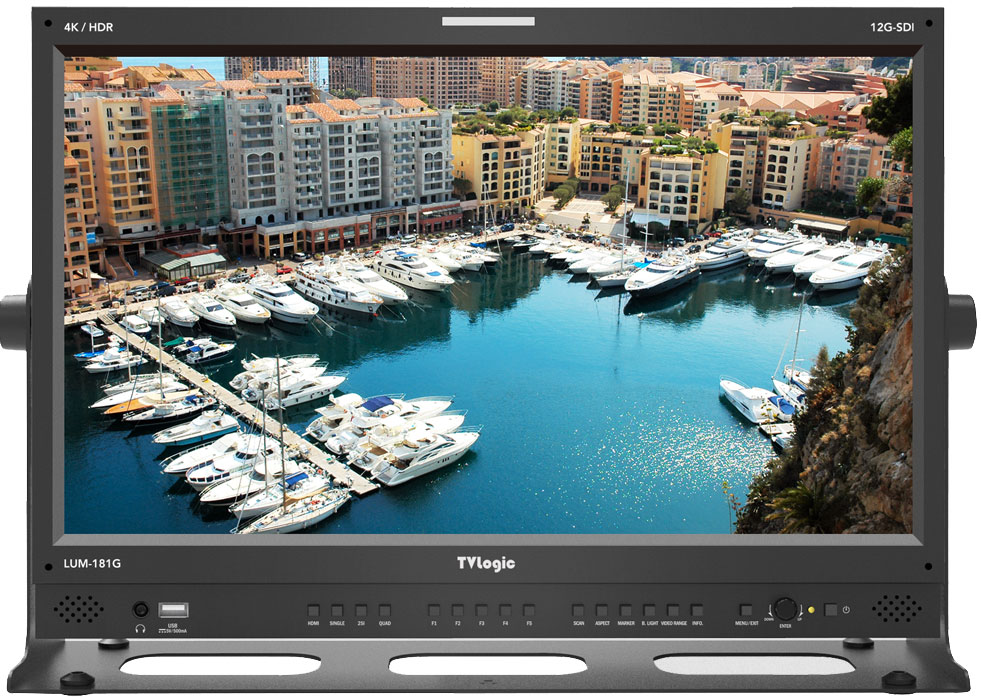

TVLogic LUM-181G
