TVLogic LXM-180P 18.5" 4K/UHD HDR LCD Monitor
TVLogic LXM-180P
These new 4K/UHD monitors feature wide viewing angle IPS panel, various HDR EOTFs, Wide color gamut, 10-bit color depth, and Accurate Color Reproduction by 3D LUT support. Additionally, the LXM series monitors offer the high-performance functions such as HDR-SDR Comparison, 12G-SDI Quad-View and Dual-View display, custom 3D LUT import, SFP to SDI conversion output, Processed monitor output, Waveform, Vector Scope, Audio Phase Meter, Firmware Update by Ethernet, and more. The LXM monitors are ideal for 4K live production, versatile monitoring in the studio and field location, edit suite and post-production.

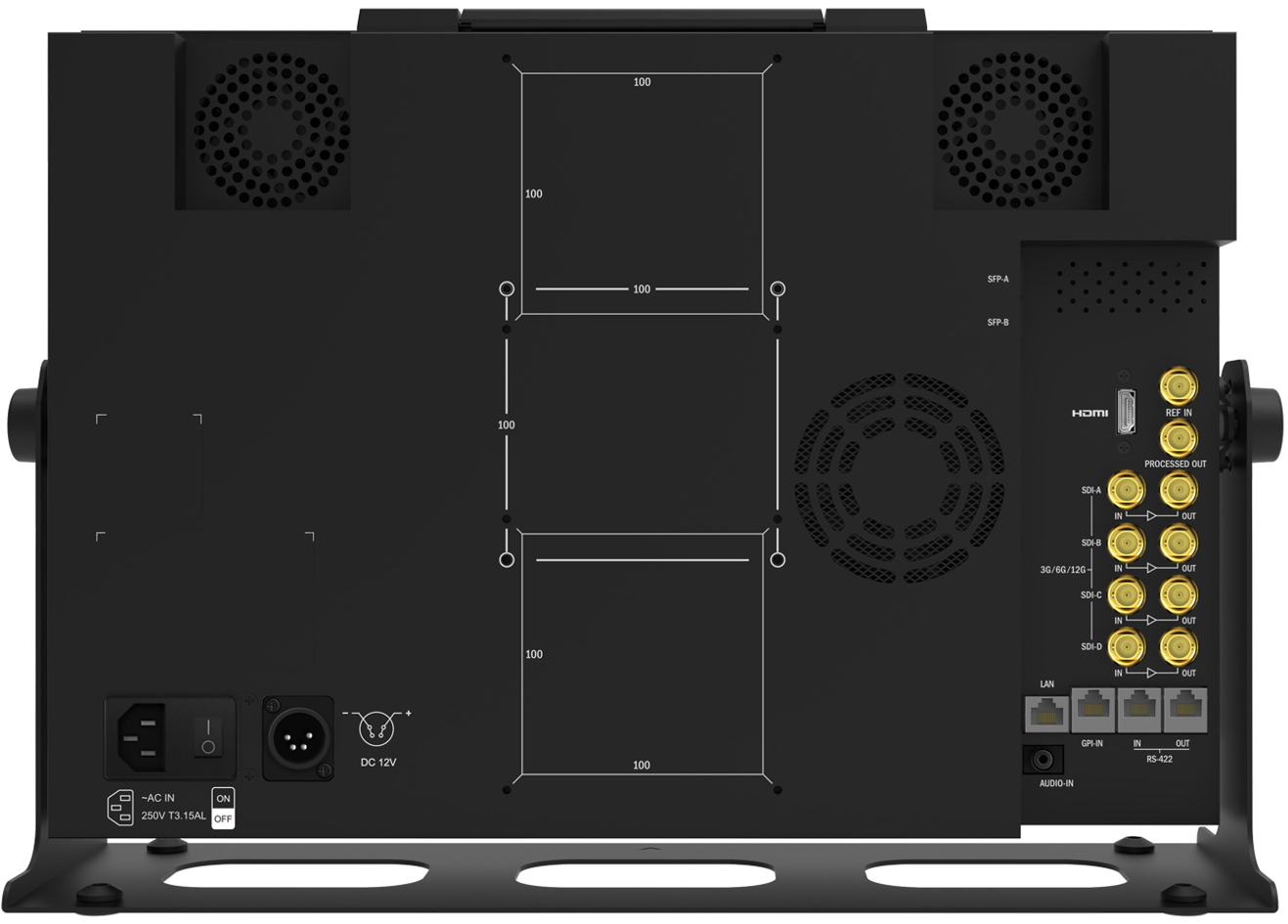

TVLogic LXM-180P is a 18.5" 4K/UHD HDR LCD Monitor that incorporates 12G-SDI Input(x4), 12G-SDI Output(x4), Reference(External Sync) input, HDMI 2.0 Input, SFP Input(x2) & Processed Monitor Output. Size 18.4”, Resolution 3840 x 2160 (16:9), Pixel Pitch 0.035(H) x 0.1065(V) mm, Color Depth 1.07B Colors
Product Highlights
- HDR EOTF (PQ, HLG)
- HDR vs SDR Comparison Display
- Custom 3D LUT Import by USB Flash Drive
- Quad-View, Picture-by-Picture Display
- Various Conversion Output
- Quad Link 12G Input to Single Link 12G or 3G Output
- Auto Detection of SDI Payload ID
- Waveform (YCbCr, RGB) / Vector Scope / Histogram
- Audio Level Meter / Phase Meter / Loudness(LKFS) Meter
- Image Capture & Overlay
- Closed Caption (CC-608, CC-708, OP47)
- Timecode Display
- Marker
- Focus Assist
- Blue/Mono Only
- H Flip, V Flip
- Scan / User Aspect
- Dynamic UMD / Tally
