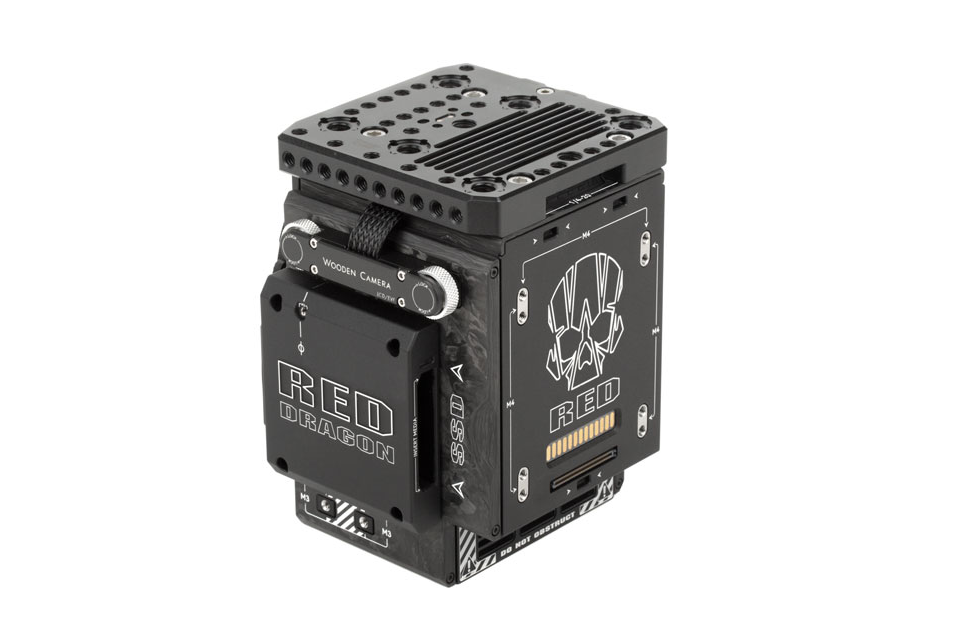

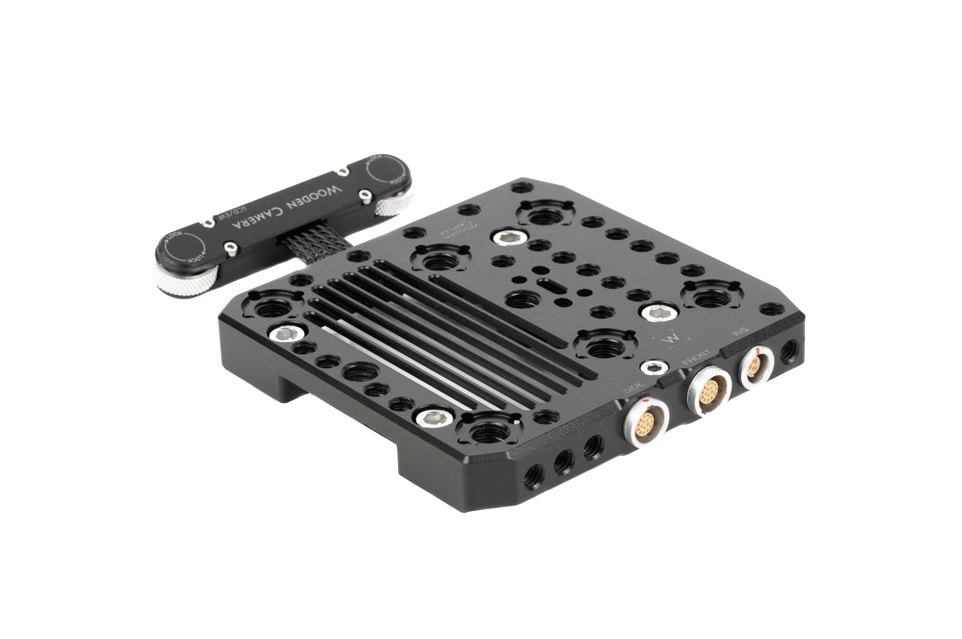

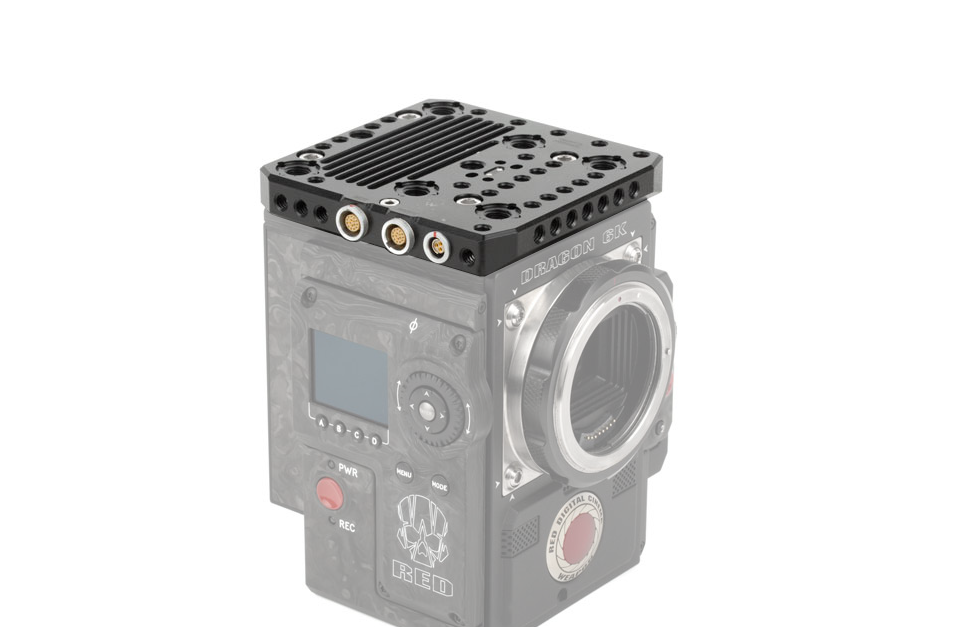

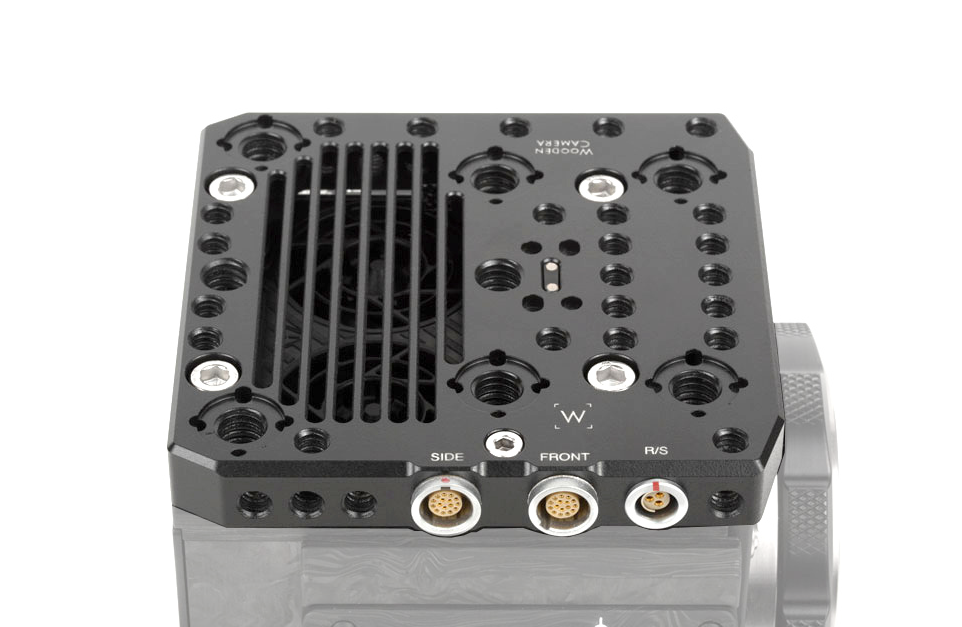

Wooden Camera Easy Top (RED DSMC2)

Wooden Camera Master Top Handle (RED DSMC2) SKU: 248200 Wooden Camera Master Top Handle (RED DSMC2) attaches in two places to both the Easy Top (Weapon) and the Pass Through Top Plate (Weapon) by four 1/4-20 screws, making it extremely secure. 1/4-20 and 3/8-16 mounting points are available on three sides as well as the ARRI standard accessory mount. Included in the kit is the main handle section which has a hot shoe mount in front as well as a 15mm rod opening with thumbscrew. Also attached to the front is a 15mm LW rod bracket for adding pass through top rods. The rear portion of the handle also features a 15mm opening and is clamped down using an M4 screw. Three extensions in different lengths and a bend piece are included to build the handle out further over the lens area, toward the rear, over the module and battery area, and down the back side behind the battery. Extensions are added easily and securely by inserting at the correct angle aligning the tab and slot, rotating clockwise, and then pushing in again. This multi-action attachment method prevents the extensions from accidentally being removed. Once pushed into place, simply tighten the screw to keep it locked in position. Weight: 824 gDimensions: 50.8 mm x 196.85 mm x 476.25 mmCompatible with RED DSMC2 cameras: Weapon, Epic-W, Scarlet-W, and Raven

Wooden Camera D-Box (RED DSMC2, Power Distribution Portion Only) SKU: 235000 Wooden Camera D-Box (Weapon, Power Distribution Portion Only) is for owners of Cable-less V-Mount, Blueshape, of Gold Mount that want to add power distribution, standardized remote start/stop, and hot swap abilities to their RED DSMC2 camera. The completed Wooden Camera D-Box assembly is tool-less for installation and utilizes our Cable-less interface which attaches directly to the back of the camera body, Base Expander Module, REDVolt Expander Module, and the OffHollywood O-Mods. Connectors on the D-Box are contoured to match the Expander Modules' which allow for all cables to be installed with no collisions. The module communicates with the camera and allows any ARRI standard start/stop trigger to be used with the 3pin Fischer port. The DC input on the D-Box is the same as the camera's LEMO allowing for an AC power supply or external power plate to be connected to power accessories and camera during a battery change. When both battery and DC input are utilized, the D-Box defaults to the DC input, leaving the battery fully charged. When combined with V-Mount or Gold Mount plate, one D-Tap is obscured by the right side power outputs. Inside the D-Box is a 10A fuse and replacement fuses are included. Weight: 362.8 gDimensions: 228.6 x 177.8 x 127 mm D-Box Connections 1. D-Tap - 12V Unregulated - This slot can be swapped for Hirose, 2pin LEMO, or 4pin LEMO2. D-Tap - 12V Unregulated - This slot can be swapped for Hirose, 2pin LEMO, or 4pin LEMO3. 2 pin LEMO - 12V Unregulated - ARRI standard wiring4. 2 pin LEMO - 12V Unregulated - ARRI standard wiring5. 3 pin Fischer - 24V Regulated- Regulator built in to convert battery voltage to 24V- Maximum 3A shared between the two 3pin Fischers- ARRI standard start/stop capabilities6. 3 pin Fischer - 24V Regulated- Regulator built in to convert battery voltage to 24V- Maximum 3A shared between the two 3pin Fischers- ARRI standard start/stop capabilities7. USB - 5v Regulated - Provides 2A for iPhone/iPad charging8. DC Input - 12-16V- DC input on the D-Box is the same as the camera's LEMO- Priority is given to DC Input to preserve battery charge when both sources connected

Wooden Camera D-Box (RED DSMC2, Gold Mount) SKU: 234000 Wooden Camera D-Box (Weapon/Epic-W/Scarlet-W/Raven, Gold Mount) is a custom version of our popular D-Box that adds power distribution, standardized remote start/stop, and hot swap abilities for the RED DSMC2 cameras. The D-Box is completely tool-less for installation and utilizes our Cable-less interface which attaches directly to the back of the camera body, Base Expander Module, REDVolt Expander Module, and the OffHollywood O-Mods. Connectors on the D-Box (Weapon/Epic-W/Scarlet-W/Raven, Gold Mount) are contoured to match the Expander Modules' which allow for all cables to be installed with no collisions. The module communicates with the camera and allows any ARRI standard start/stop trigger to be used with the 3pin Fischer port. The DC input on the D-Box is the same as the camera's LEMO allowing for an AC power supply or external power plate to be connected to power accessories and camera during a battery change. When both battery and DC input are utilized, the Wooden Camera D-Box defaults to the DC input, leaving the battery fully charged. Authentic Anton Bauer Gold Mount plate provides 2x D-Tap (unregulated) on the power plate itself but we should note that one D-Tap is obscured by the right side power outputs. Inside the D-Box is a 10A fuse and replacement fuses are included. Weight: 610g Dimensions: 228.6 mm x 177.8 mm x 127 mm D-Box Connections 1. D-Tap - 12V Unregulated - This slot can be swapped for Hirose, 2pin LEMO, or 4pin LEMO2. D-Tap - 12V Unregulated - This slot can be swapped for Hirose, 2pin LEMO, or 4pin LEMO3. 2 pin LEMO - 12V Unregulated - ARRI standard wiring4. 2 pin LEMO - 12V Unregulated - ARRI standard wiring5. 3 pin Fischer - 24V Regulated- Regulator built in to convert battery voltage to 24V- Maximum 3A shared between the two 3pin Fischers- ARRI standard start/stop capabilities6. 3 pin Fischer - 24V Regulated- Regulator built in to convert battery voltage to 24V- Maximum 3A shared between the two 3pin Fischers- ARRI standard start/stop capabilities7. USB - 5v Regulated - Provides 2A for iPhone/iPad charging8. DC Input - 12-16V- DC input on the D-Box is the same as the camera's LEMO- Priority is given to DC Input to preserve battery charge when both sources connected

Wooden Camera Trigger Handle (RED Weapon / Scarlet-W / Raven) SKU: 228000 Trigger Handle for RED Weapon, Scarlet Weapon, Raven cameras attaches without tools directly to the top of the camera brain or to the Easy Top (Weapon/Scarlet-W/Raven) to trigger the camera through the pogo interface. Arrays of 1/4-20 holes in Red spacing, 3/8-16 holes for large accessories, and the ARRI standard accessory mount in several places. Attaches to top of camera by (2) 1/4-20 captured thumbscrews. Additionally, Rod Clamps can be attached to the front for a pass through top rod system. Includes 2 x 1/4-20 x captured thumbscrews

Wooden Camera D-Box (RED DSMC2, V-Mount) SKU: 233900 Wooden Camera D-Box (Weapon/Epic-W/Scarlet-W/Raven, V-Mount) is a custom version of our popular D-Box that adds power distribution, standardized remote start/stop, and hot swap abilities for the RED DSMC2 cameras. The D-Box is completely tool-less for installation and utilizes our Cable-less interface which attaches directly to the back of the camera body, Base Expander Module, REDVolt Expander Module, and the OffHollywood O-Mods. Connectors on the -Box (Weapon/Epic-W/Scarlet-W/Raven, V-Mount) are contoured to match the Expander Modules' which allow for all cables to be installed with no collisions. The module communicates with the camera and allows any ARRI standard start/stop trigger to be used with the 3pin Fischer port. The DC input on the D-Box is the same as the camera's LEMO allowing for an AC power supply or external power plate to be connected to power accessories and camera during a battery change. When both battery and DC input are utilized, the D-Box defaults to the DC input, leaving the battery fully charged. Authentic IDX V-Mount plate provides 2x D-Tap (unregulated) on the power plate itself but we should note that one D-Tap is obscured by the right side power outputs. Inside the D-Box is a 10A fuse and replacement fuses are included. Weight: 610gDimensions: 228.6 mm x 177.8 mm x 127 mm D-Box Connections 1. D-Tap - 12V Unregulated - This slot can be swapped for Hirose, 2pin LEMO, or 4pin LEMO2. D-Tap - 12V Unregulated - This slot can be swapped for Hirose, 2pin LEMO, or 4pin LEMO3. 2 pin LEMO - 12V Unregulated - ARRI standard wiring4. 2 pin LEMO - 12V Unregulated - ARRI standard wiring5. 3 pin Fischer - 24V Regulated- Regulator built in to convert battery voltage to 24V- Maximum 3A shared between the two 3pin Fischers- ARRI standard start/stop capabilities6. 3 pin Fischer - 24V Regulated- Regulator built in to convert battery voltage to 24V- Maximum 3A shared between the two 3pin Fischers- ARRI standard start/stop capabilities7. USB - 5v Regulated - Provides 2A for iPhone/iPad charging8. DC Input - 12-16V- DC input on the D-Box is the same as the camera's LEMO- Priority is given to DC Input to preserve battery charge when both sources connected
