Wooden Camera Offset Mount and V-Lock Kit for Bolt 4K LT TX
SKU: K20004

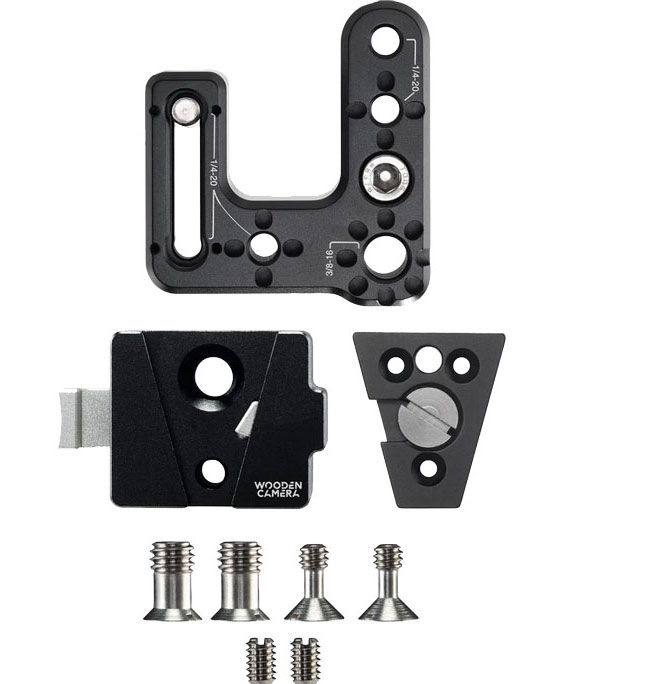

Offset Mount and V-Lock Kit for Bolt 4K LT TX is a comprehensive kit that features a versatile mounting bracket for the Teradek Bolt 4K LT TX and a quick-release mounting dock for mounting directly to your camera.
The included V-Lock Mounting Kit is a quick-release mounting kit based on the standard V-Lock mounting design. The Base Station portion can bolt into any 1/4"-20 or 3/8"-16 mounting point using the included screws. Set screws can also be installed to prevent twisting.
The V-Lock Accessory Wedge portion of the kit features both 1/4"-20, 3/8"-16, and M3 mounting points for attaching accessories like the included Offset Mount for Bolt 4K LT TX.

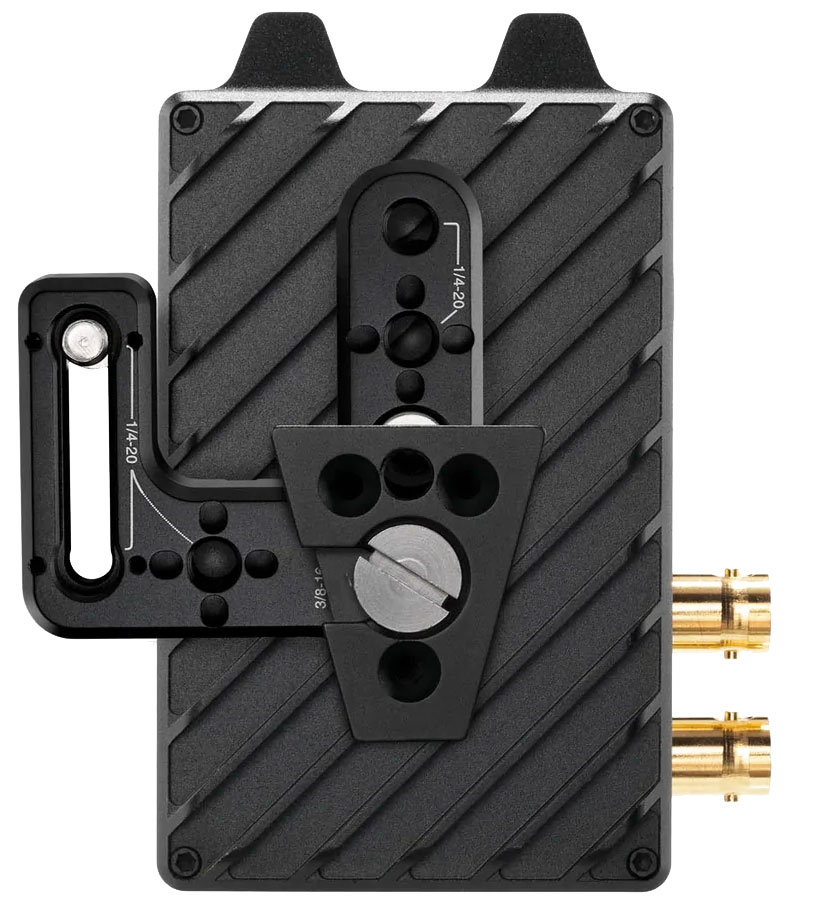

Users retain the option to detach the Offset Mount for Bolt 4K LT TX from the V-Lock Mounting Kit and mount onto any 1/4"-20 mounting point. Removable screw-in set pins located on both ends of the 1/4"-20 pass-through slot for added security and can be stored on the side of the unit when not in use. The Offset Mount can be mounted via one pass-through 1/4"-20 hole located at the top of the bracket.
It also features one 3/8"-16 and two 1/4"-20 mounting points with locating pin depressions for securely attaching additional mounting interfaces such as articulating arms and rod components the same way users would attach the included V-Lock Mounting Kit.
- Weight: 184 g
- Dimensions: 54 x 58.2 x 36 mm
