Wooden Camera PL Mount Modification Kit (Pocket Cinema Camera 6K / 6K G2 / 6K Pro)

Tip
PL Mount Pocket 6K
PL Mount Modification Kit
wooden camera PL Mount Modification Kit
wooden camera 274600
PL Mount Modification Kit Pocket 6K
PL Mount Pocket 6K
PL Mount Modification Kit
wooden camera PL Mount Modification Kit
wooden camera 274600
PL Mount Modification Kit Pocket 6K

PLN 2,736.75*

net: PLN 2,225.00

Prices incl. VAT plus shipping costs

Available, delivery time: 1-3 days

Product number: SW22998

Wooden Camera PL Mount Modification Kit

SKU: 274600

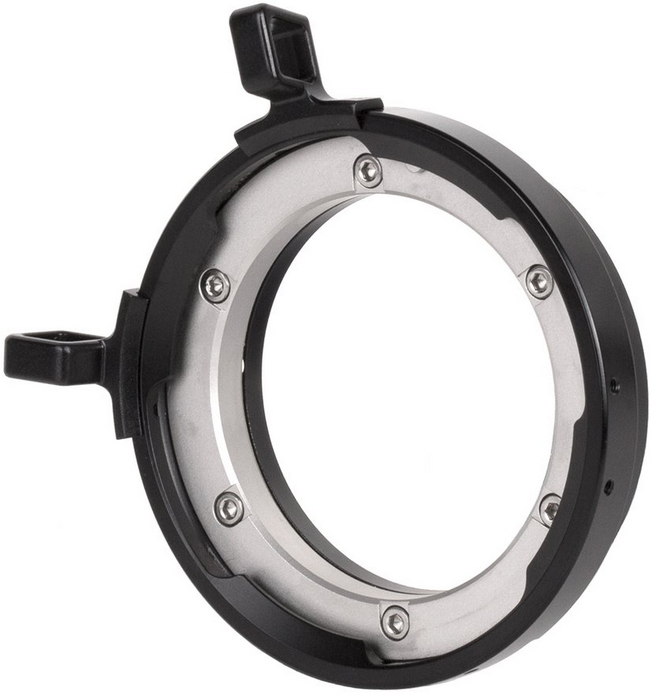

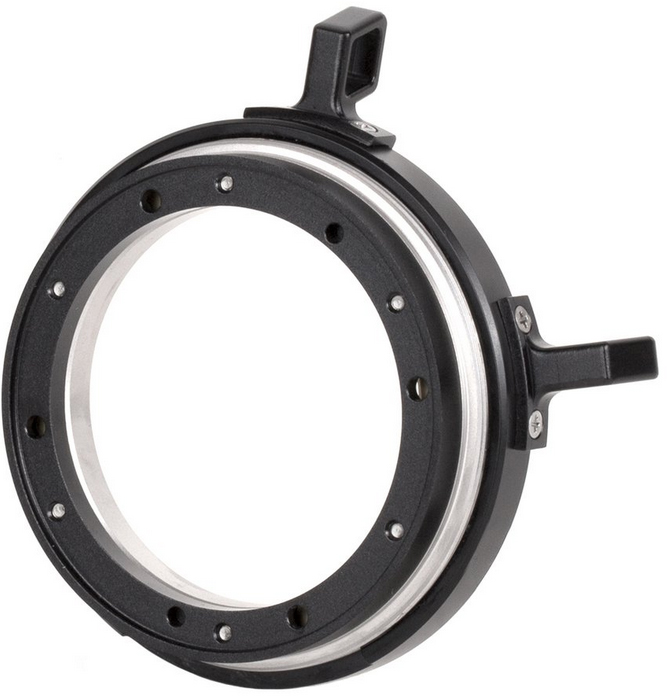

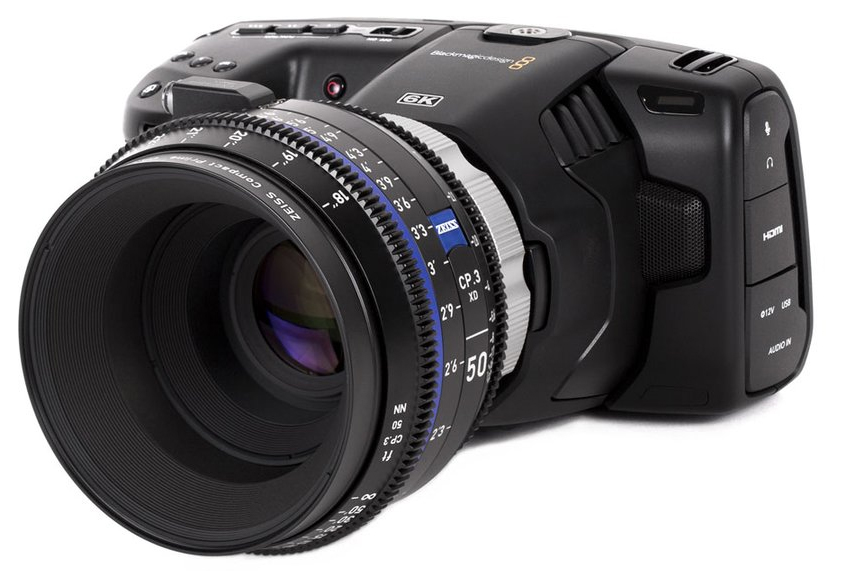

The PL Mount Modification Kit (Blackmagic Pocket Cinema Camera 6K / 6K Pro) allows users to convert their BMPCC6K camera to a PL Mount through a short modification process. All necessary tools are included in the kit. The PL Mount is made of stainless steel and aircraft grade aluminum and includes the PL port cap. Shims are provided with the kit for adjusting back focus and the appropriate shims are installed prior to shipping. Further adjustment should not be needed but can be checked using a wide angle lens and a focus chart. The BMPCC6K's own EF Mount screws are used to attach the PL Mount to the camera.

The modification process can be reversed. If you choose to go back to EF mount in the future, you can do it by reversing steps in the process, however, switching back and forth will eventually strip the plastic in your camera as the sensor block is made of a composite plastic material (it is strong but still plastic).

Includes

  • 1x Shim Set
  • 1x Jeweler's Screwdriver


Shim set

(stackable to achieve necessary thickness)

  • Silver .0127mm (0.0005")
  • Amber .0254mm (0.001")
  • Purple .0381mm (0.0015")
  • Red .0508mm (0.002")
  • Green .0762mm (0.003")
  • Tan .1016mm (0.004")
  • Blue .127mm (0.005")

Important Note: While the vast majority of modern, s35mm lenses are compatible, lenses with a rear protrusion longer than 33.5mm, measured from the PL flange, are not compatible and other lenses may not fit due to the shape of the original Blackmagic 6K body design. A list of incompatible lenses will be available but will be a work in process. A diagram will also become available soon which will detail the protrusion requirements for fitting into a modified BMPCC6K.
