Wooden Camera UFF-1 Universal Follow Focus (Base)
Free shipping
PLN 6,294.53*
net: PLN 5,117.50
Free shipping
Our availability in the Christmas in-between period: we will be closed from 23.12.2024. All orders placed during this period will be accepted, but shipped after 06.01.2025. We wish you a Merry Christmas and a Happy New Year.
Product number:
SW19700
Manufacturer:
Wooden Camera
EAN:
606184853717
Manufacturer product number:
244400
Delivery time:
2-5 days

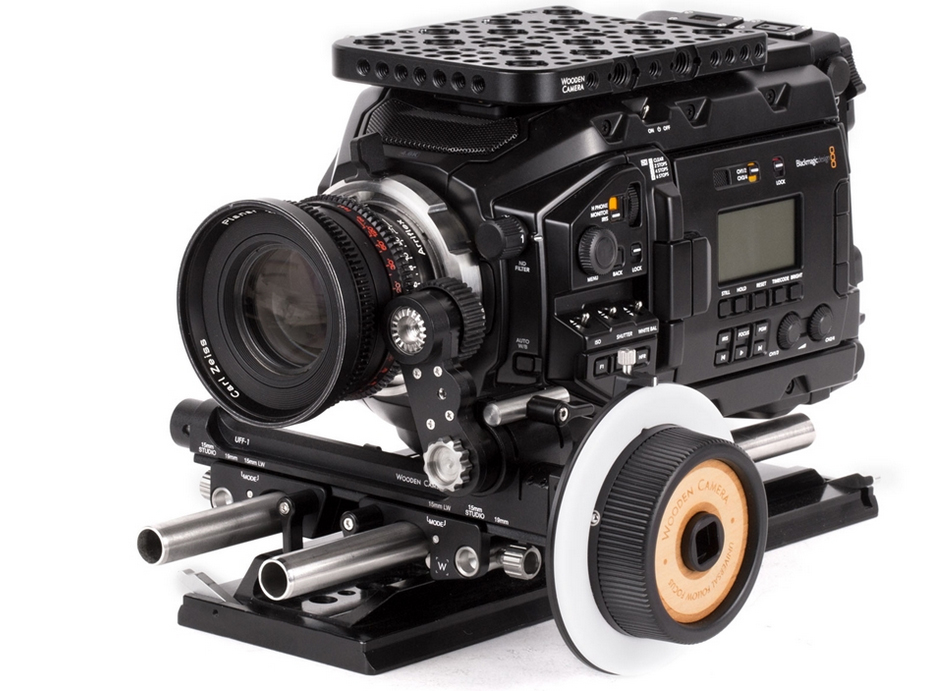

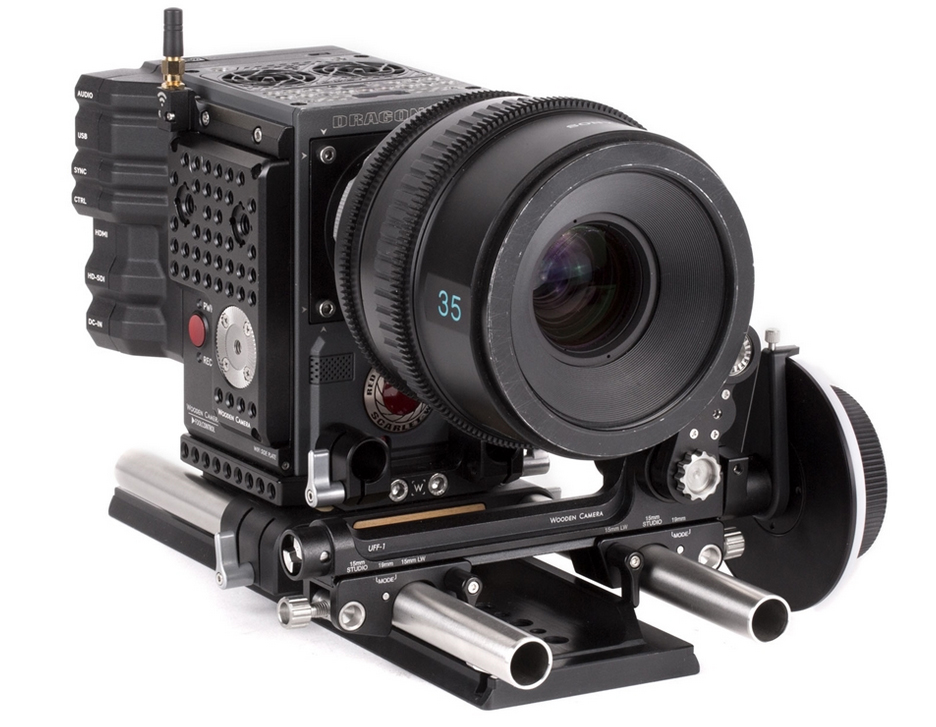

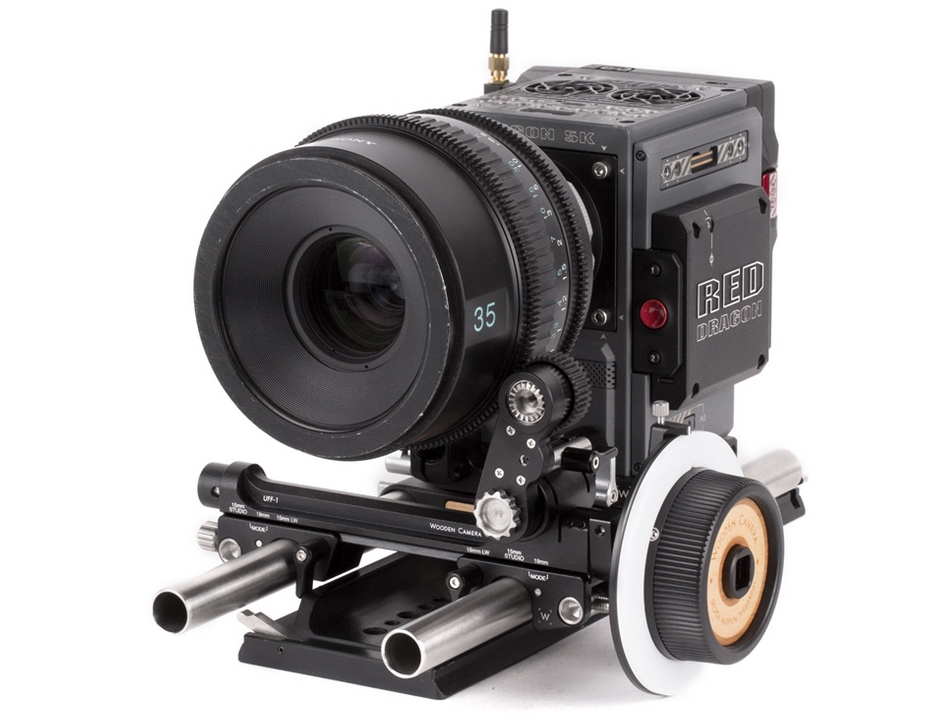

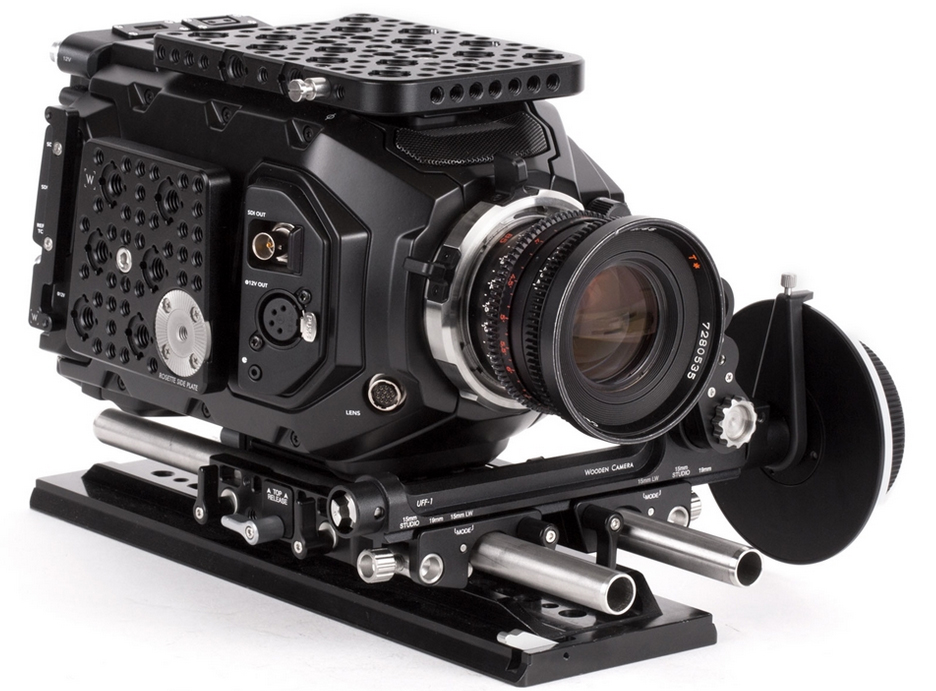

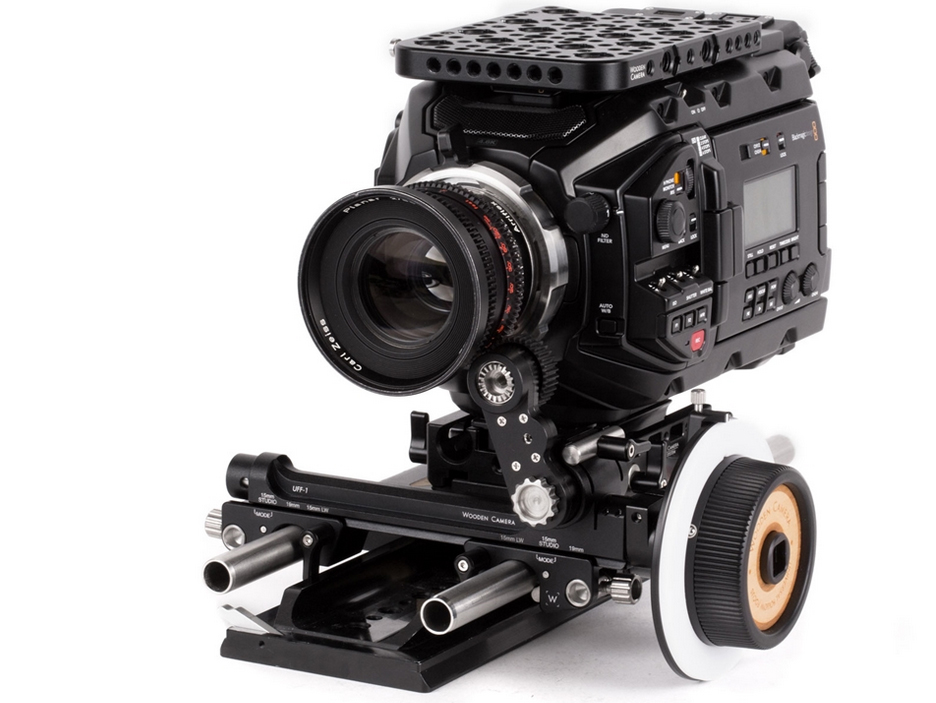

Wooden Camera UFF-1 Universal Follow Focus (Base)
SKU: 244400
Wooden Camera UFF-1 Universal Follow Focus is the first follow focus to be compatible with 15mm LW, 15mm Studio, and 19mm rods without the use of adapters. Simply unlock the clamps and slide to the appropriate rod position. Notches in the bottom of the bridge indicate when the clamp is in the correct position.
The included swing arm and lens gears can be flipped to the front or back position which is helpful for compact lens configuration and the bridge has the lowest height in the industry so it will work with the larger zoom lens barrels.
The hand wheel is compatible with the standard marking disc and hard stop disc which provides positionable limits when using DSLR lenses with infinite barrel rotation. In total, 2 marking discs and 1 hard stop disc are included. The hand wheel is removable and has a standard accessory port for use with the focus whip and crank (not included). UFF-1 Universal Follow Focus is compatible with 15mm LW, 15mm Studio, and 19mm rods without the use of adapters.
Included in the kit are 5 gear attachments
- .5 mod for Canon ENG
- .6 mod for Fujinon ENG
- .8 mod small diameter for Cinema Lenses
- .8 mod large diameter for Cinema Lenses
- Friction Gear for DSLR lenses
Each kit ships in custom cut foam which fits natively into a Pelican 1500 case (not included).
Included Items
- 1 x Adjustable Bridge with Rod Clamps
- 1 x Hand Wheel
- 1 x Hard Stop Disc
- 2 x Standard Marking Discs
- 5 x Focus Gears (.5 mod, .6 mod, .8 mod small, .8 mod large, Friction Gear)
- 1 x Custom Cut Foam for a Pelican 1500 Case (not included)
