Zacuto Canon C400 Z-Finder Recoil Rig

Zacuto Canon C400 Z-Finder Recoil Pro

SKU: Z-C4ZR

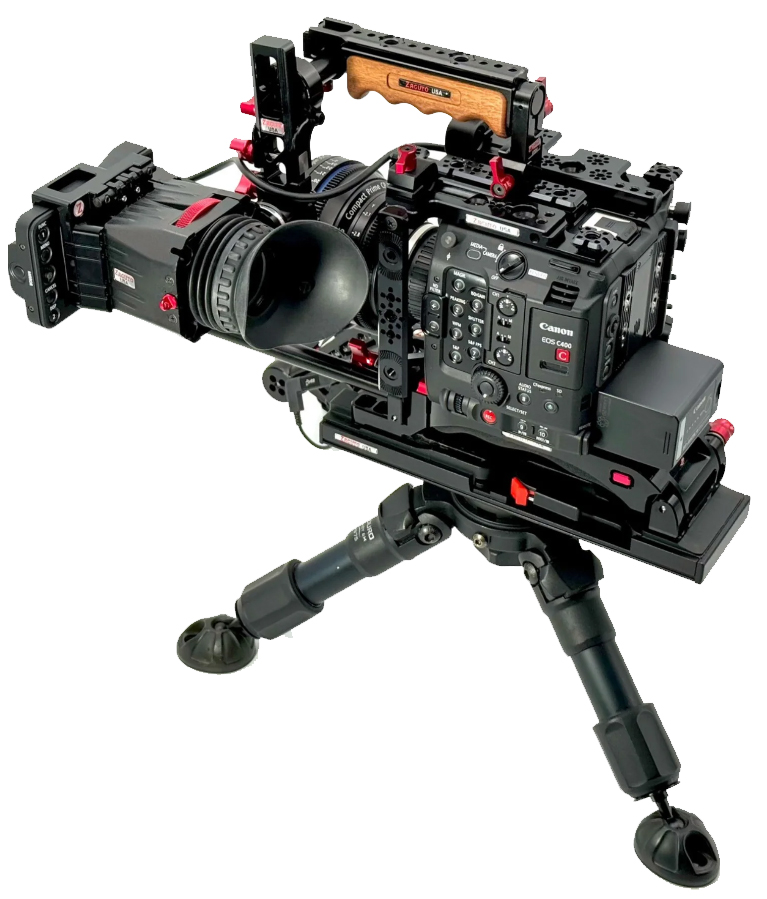

The Zacuto Canon C400 Z-Finder Recoil Pro is a shoulder rig designed specifically for the Canon C400. This is a Next Generation Recoil rig designed for optimal balance and comfort when shoulder mounted or on a tripod. With lenses and cameras being similar weights, the balance point is where the lens meets the camera body. In a shoulder mount rig, the balance point needs to be directly over your shoulder which puts the camera behind you.

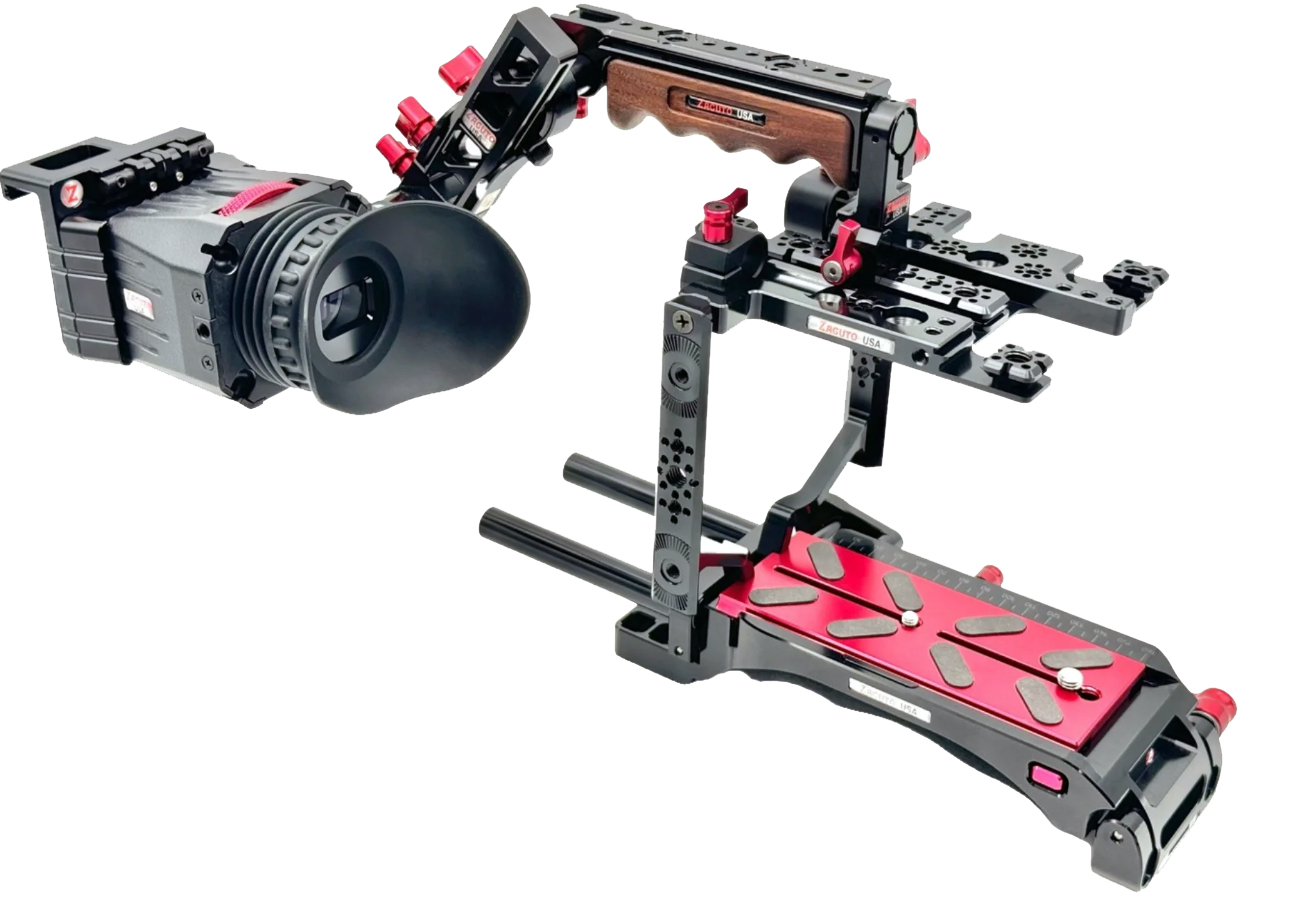

The Recoil rig adjusts for that balance point and relocates focus, monitoring and camera controls forward, creating a lighter, shorter and properly balanced rig. The Canon C400 Shoulder-mounted rig includes our

• VCT Pro baseplate
• Rosette Trigger Grip to relocate the C400 handgrip
• Canon C400 cage
• Canon C400 Z-Finder with rosette adapter
• Axis Mini
• Tactical handle

This is the ultimate configuration for shoulder mounting the Canon C400 utilizing the Canon C400 LCD screen with Z-Finder.

• VCT Pro – this baseplate has a sliding top plate for quickly removing the camera from the rig or fast lens changes, a built-in, curved shoulder pad, a v-wedge tripod connector (with ¼” 20 and 3/8" 16 screw option). It has removable and extendable 6.5” rods and rows of 1/4” 20 screw holes along the sides for accessories
• Rosette Trigger Grip- relocates the Canon camera grip to a comfortable handgrip position for shoulder rigs. Our trigger grips are the most adjustable grips available. They allow for single-handed 360° rotation with the simple press of a trigger
• Canon C400 Cage - The C400 cage includes a top plate and two side rails that mount to the VCT Pro. The side rails are optional and not required to use with the top plate. The Top Plate has a built in Z-Rail to mount the Tactical Handle. The cage design maintains access to the hotshoe on the top rear of the camera for audio devices. It also has tapped holes to relocate Canon's mic shock mount to the side of the cage
• Tactical Handle- Our most versatile handle! With the turn of one ratcheting lever, this handle can be a top handle, left hand grip, or right hand grip- use it where you need it for your shooting style. The slim design fits comfortably in your hand
• Axis Mini - the most adjustable style mount for rosette mounted Z-Finders and EVFs, giving you full 360º motion with four adjustment points. Designed to attach to the top of your camera set up, it leaves plenty of room at the lens for focusing and will work with the widest of lenses. It can easily be adjusted with one hand while the rig is on your shoulder
• Canon C400 Z-Finder and Rosette Mount- The Canon C400 Z-Finder is an optical viewfinder, specifically designed to attach to the Canon C400 LCD Monitor. This Z-Finder will magnify the LCD screen by 2.5x and has a diopter wheel for specific focus tuning. If you need extra focal points you can use the included Z-Finder Extender Frames
