Zacuto VCT Pro Baseplate
SKU: Z-VCT-P
The VCT Pro baseplate is compatible with all cameras including Canon EOS C-series, Sony FS5 and Sony FS7, AJA CION, BlackMagic, RED cameras, Arri Alexa and Amira, DSLRs, Mirrorless and more. The VCT Pro has a built-in, curved shoulder pad and an Arri M6 rosette for accessories and grips. Zacuto VCT Pro Baseplate comes with quick-release, extendable 6.5” rods at the front, and lightweight spaced quick-release rod ports at the back. The v-wedge tripod connector is compatible with VCT14 tripod adapter plates or use the 1/4 20 and 3/8 16 screw holes for direct connect to your tripod quick release plate.

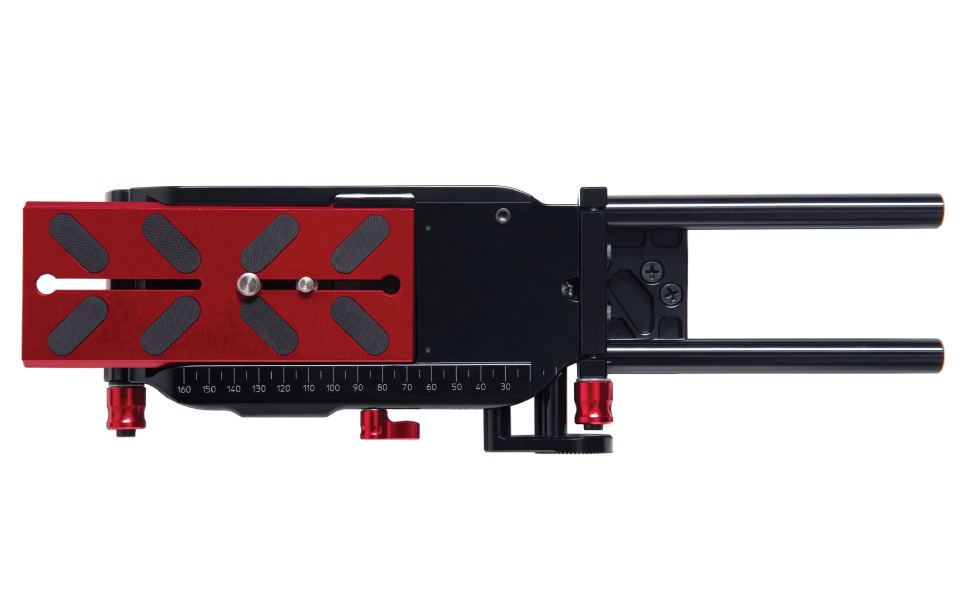

The red sliding top plate offers easy adjust-ability for lens changes, removing your camera, and balancing your rig correctly on your shoulder. This sliding plate combined with a double screw track offers 10” of camera balance sliding range.
The lightweight, adjustable rod mount is set far back in the plate, offering plenty of accessory-capable area under the camera lens. This allows you to position your camera further back on the plate, keeping the balance point of your rig directly over your shoulder. The sliding track of the rod riser offers 25mm of vertical adjustment.
The shoulder pad portion of the VCT Universal is set as far forward on the plate as possible, also to maximize your accessory capable rod area and aid with balance. The VCT Universal Baseplate is the core of our Next Generation Recoil rigs, designed for balance and comfort for every camera.
Keeping the camera low prevents already tall cameras from being too top heavy. With our VCT, the distance from the bottom of your camera to your shoulder is just 3/4 inch.
VCT Pro Baseplate SPECIFICATIONS
- 14.25” x 4.25” x 2” (LxWxH) with 6.5” rods
- Two quick releasable 6.5” rods included
- Weighs 960 grams
- One Arri M6 rosette on right side of VCT Pro
- Two quick-release rod ports in the back
- Wide gel-polymer shoulder pad
- One ¼ 20 & ⅜ 16 removable screws included
- Lightweight adjustable rod mount
- Over 10” of camera balance sliding range
- Up to 25mm of vertical adjustment
- Unique sliding top plate to quickly adjust for lens changes or to release the camera from your rig
- Unique design creates more accessory rod capable area
- V-wedge style tripod connector or directly mount your tripod plate via ¼ 20 & ⅜ 16 screw holes
- ¼ 20 screw holes along the side for accessory mounting options
